Dimensions Section 6-2
158

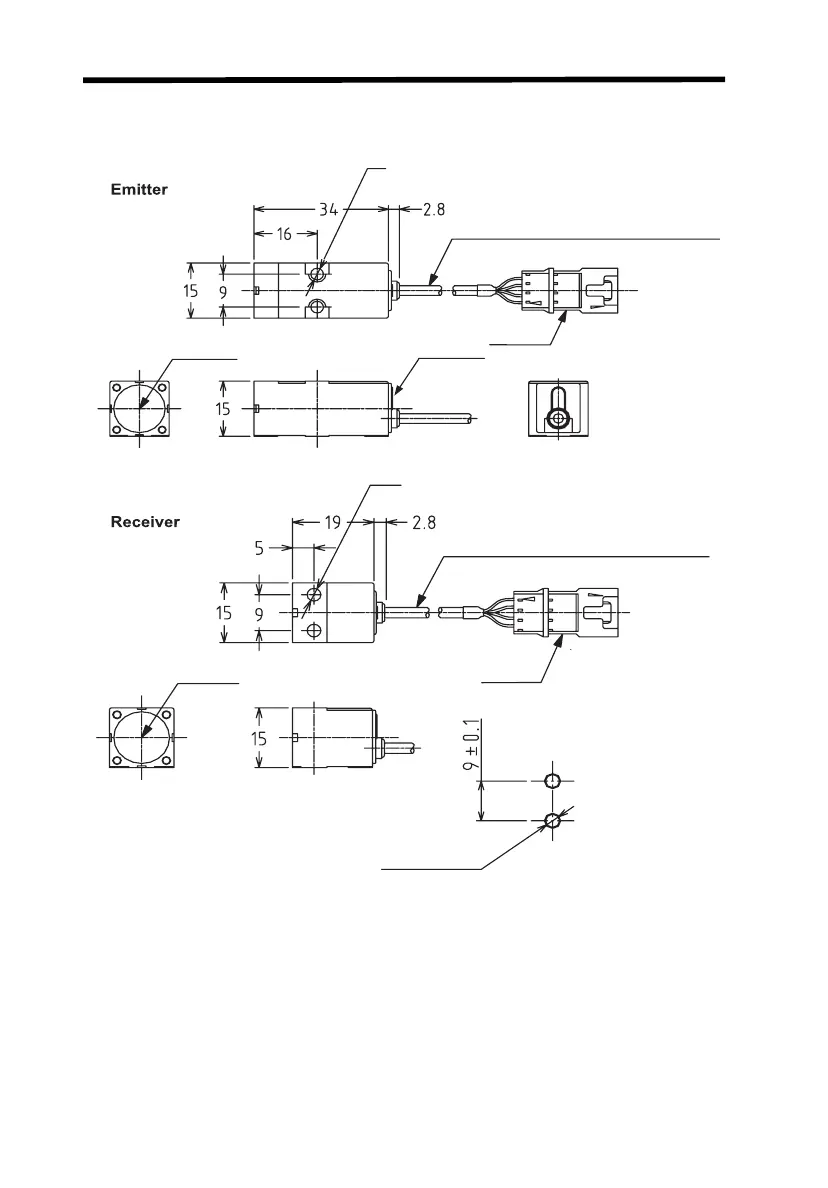

6-2-2 Through-beam Sensor Heads
n ZX-LT001
Vinyl-insulated round cable (gray), 2.6 dia.,
3 conductors, standard length: 0.5 m
(cross-sectional area of conductor: 0.09 mm
2
,
Insulator diameter: 0.6 mm)
Vinyl-insulated round cable (black), 2.6 dia.,
3 conductors, standard length: 0.5 m
(cross-sectional area of conductor: 0.09 mm
2
,
Insulator diameter: 0.6 mm)
Connector
Connector
Laser ON
indicator
Optical
axis center
Optical
axis center
Mounting Holes
(Same for Emitter)
Two, 3.2-dia. mounting holes
Two, 3.2 dia. mounting holes
Two, M3 holes
(Unit: mm)
