Omron ZX Series User Manual

Laser Safety
ii

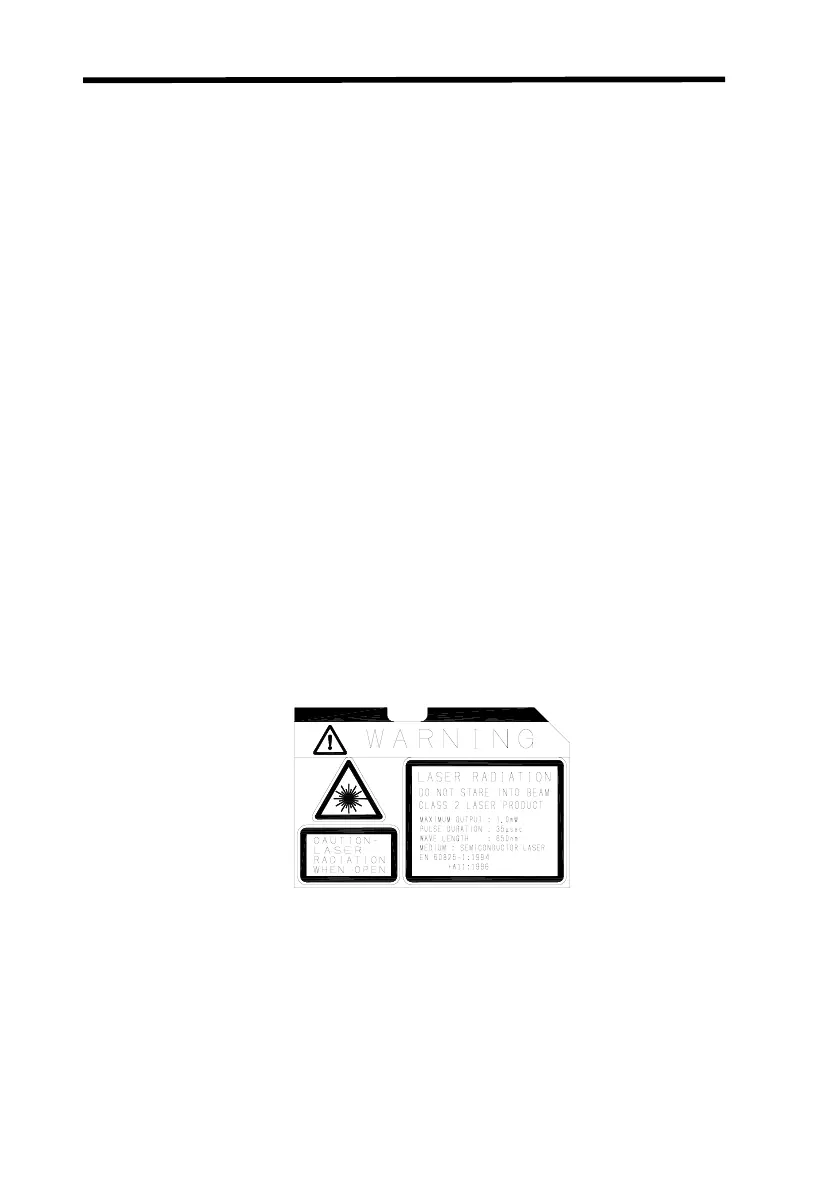

Laser Safety
The ZX-LD@@, ZX-LD@@L, ZX-LD@@V, and ZX-LD@@VL Sensor Heads
are Class 2 Laser Products according to EN60825-1 (IEC825-1) and Class
II Laser Products according to FDA (21 CFR1040.10) (see note). The ZX-
LT@@@ Sensor Heads are Class 1 and Class II Laser Products, respec-
tively. The ZX Series is meant to be built into final system equipment. Pay
special attention to the following precautions for the safe use of the prod-
uct:
Note: Europe: Class 1 and Class 2 of EN60825-1: 1994 = IEC825-1: 1993
U.S.A.: Class I and Class II of FDA (21 CFR1040.10)
(1) Use this product as specified in this operation manual. Otherwise, you may
be exposed to hazardous laser radiation.
(2) The ZX-series Smart Sensors radiate laser beams in the visible light range.
Do not expose your eyes directly to the laser radiation. Ensure that the laser
beam path is terminated during use. If a mirror or shiny surface is positioned
in the laser beam path, ensure that the reflected beam path is also termi-
nated. If the Unit must be used without terminating the laser beam path, posi-
tion the laser beam path so that it is not at eye level.
(3) To avoid exposure to hazardous laser radiation, do not displace nor remove
the protective housing during operation, maintenance, and any other servic-
ing.
(4) The user should return the product to OMRON for all repair and servicing.
(5) As for countries other than those of Europe and the U.S.A., observe the regu-
lations and standards specified by each country.

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
