Omron ZX Series User Manual

Reflective Sensor Heads: FUN Mode Functions Section 3-5
46
n Offsetting Display Values: One-point Scaling A
Use one-point scaling to offset the display values. Input the distance to be
displayed for the current measurement point. When you input only one
point for scaling, only the offset is changed without changing the range of
display values. In this example, the display values are not inverted.
Example:

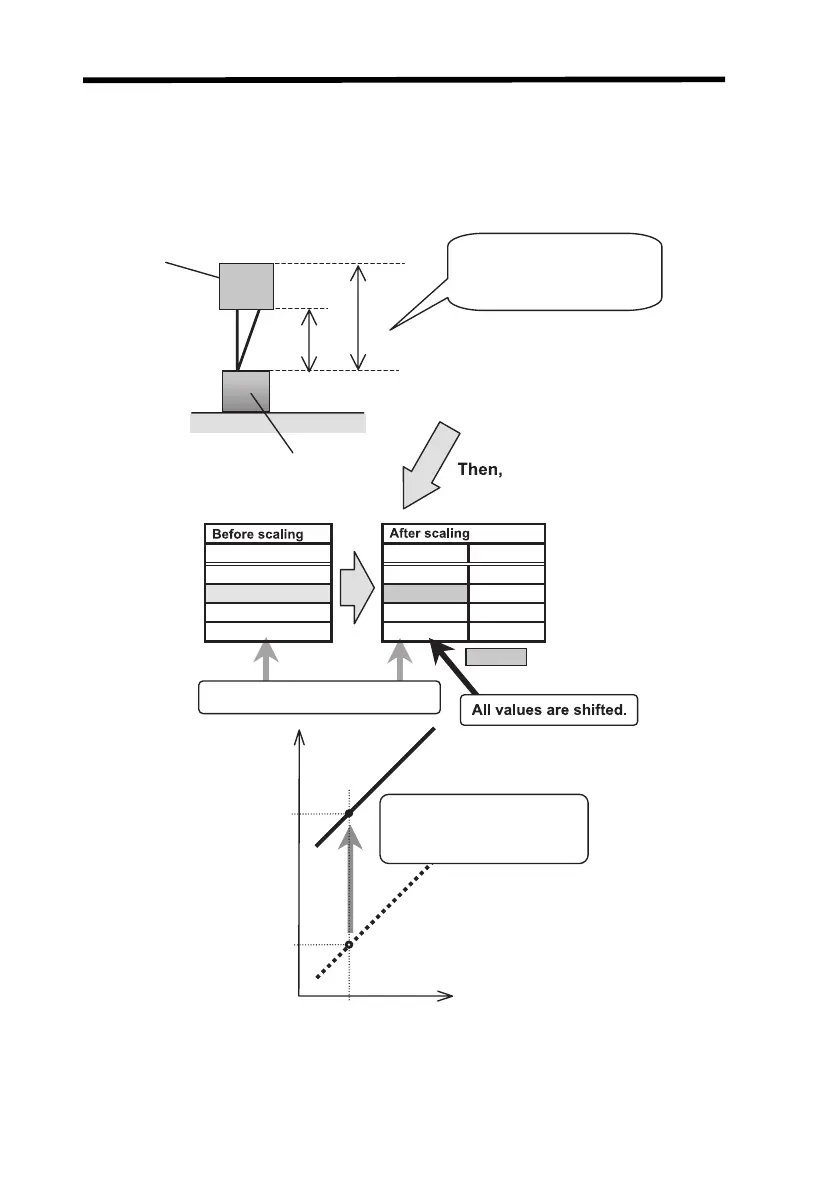

Example: One-point Scaling A
80.0 140.0 80.0
90.0 150.0 90.0
100.0 160.0 100.0
110.0 170.0 110.0
Sensor Head
Although the Y value
must be displayed,
the X value is displayed.
Y
X
If X = 90 mm
and Y = 150 mm,
Sensing object
Measured value = Display value
Measured value
Display value
: Scaling value input
90 mm is displayed as 150 mm.
Display value
(mm)
150.0
90.0
90.0 Actual distance (mm)
Despite the offset, the range
remains unchanged.

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
