Laser Safety
iv
Note 1. The above table is intended to provide a convenient summary of
requirements. See text of this standard for complete requirements.
2. AEL: Accessible Emission Limit
The maximum accessible emission level permitted within a particular
class. For your reference, see ANSI Z136.1-1993, Section 2.
• FDA (Compliance Guide for Laser Products, 1985, according
to 21 CFR1040.10)
Symbol and border: black
Background: yellow

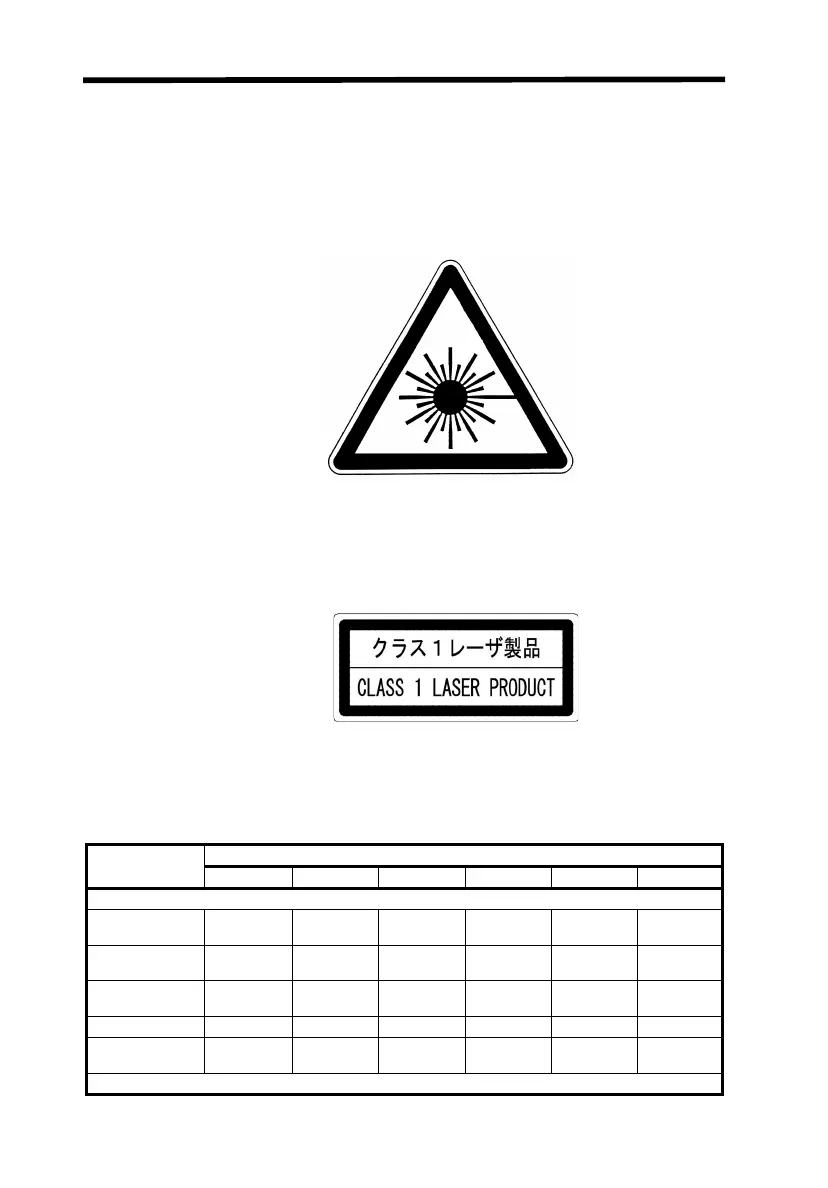

Figure A Warning label - Hazard symbol
Legend and border: black
Background: yellow
Figure B Explanatory label
Requirements Class (see note 1)
I IIa II IIIa IIIb IV
Performance (all laser products)
Protective hous-
ing
R
(see note 2)
R
(see note 2)
R
(see note 2)
R
(see note 2)
R
(see note 2)
R
(see note 2)
Safety interlock R (see
notes 3, 4)
R (see
notes 3, 4)
R (see
notes 3, 4)
R (see
notes 3, 4)
R (see
notes 3, 4)
R (see
notes 3, 4)
Location of con-
trols
N/A R R R R
Viewing opticsRRRRRR
Scanning safe-
guard
RRRRRR
Performance (laser systems)

Omron ZX Series Specifications

General

Power Supply Voltage	12 to 24 VDC ±10%
Protection Rating	IP67
Output Type	NPN or PNP
Protection Circuit	Reverse polarity protection, short-circuit protection
Operating Temperature	-25 to 55°C (-13 to 131°F)
