SOCT Copernicus PLUS - Service Manual

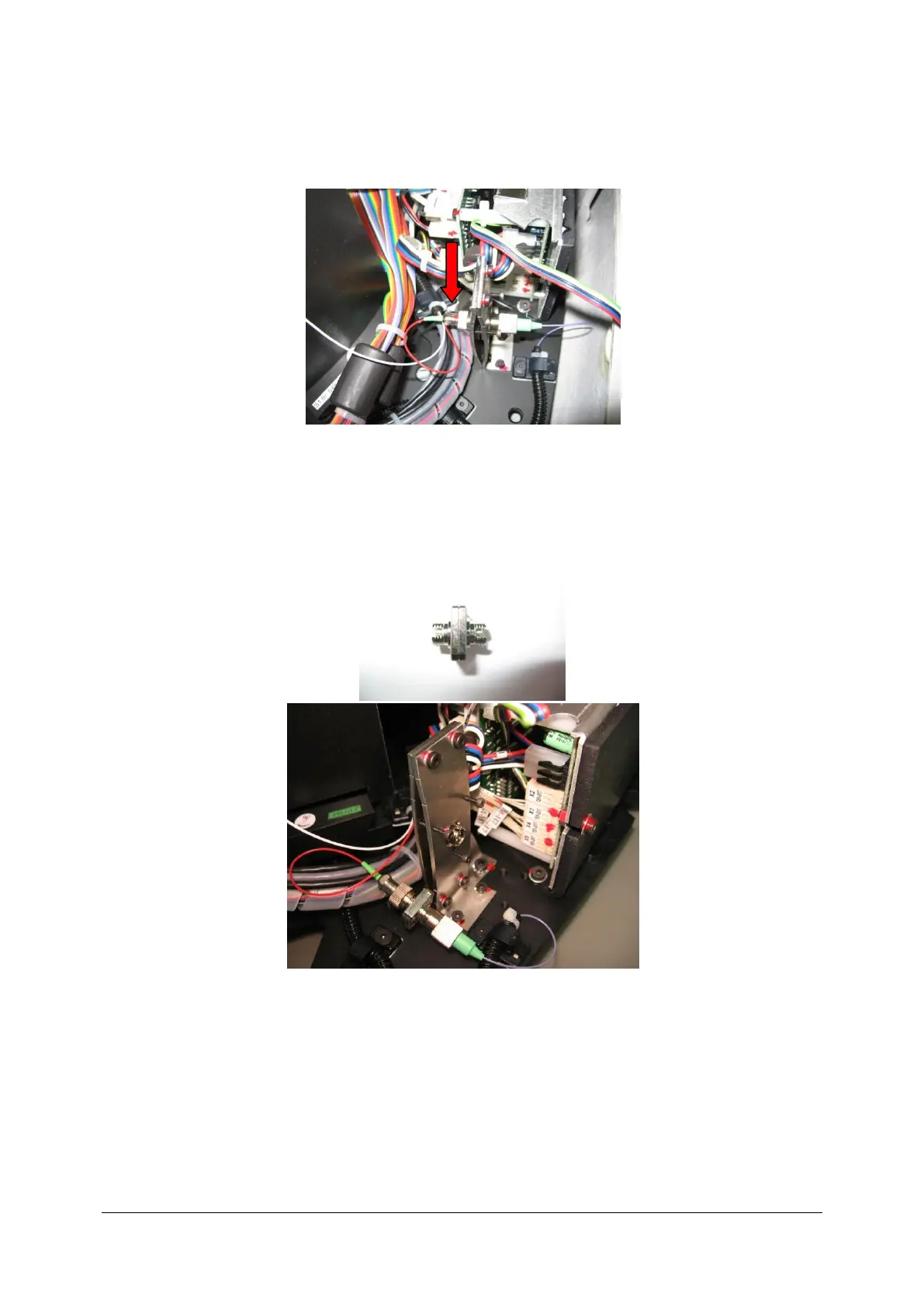

10. Unscrew beam splitter connector.
11. Attach diode and beam splitter connectors to the optical fibre connector FC/APC.
12. Measure output power from sample course and signal from reference course. If measured
values are correct go to the next point. If there is no signal on one or both courses it appears
that beam splitter is broken. Unit should be sent back to the Optopol.
