Install PCIe Riser in Server Nodes
1.
Before installing the PCIe riser, ensure that the latch adjacent to the location
where PCIe riser is to be installed is in the open (down) position [2].
2.
Install the PCIe riser.
a.
Ensure that any PCIe cards installed in the PCIe riser are properly seated,
and that the card's locking bracket is flush with the recess in the riser and is
engaging the locking tab.
For instructions for installing a PCIe card into a PCIe riser, see “Install PCIe Card in PCIe
Riser” on page 184.
b.

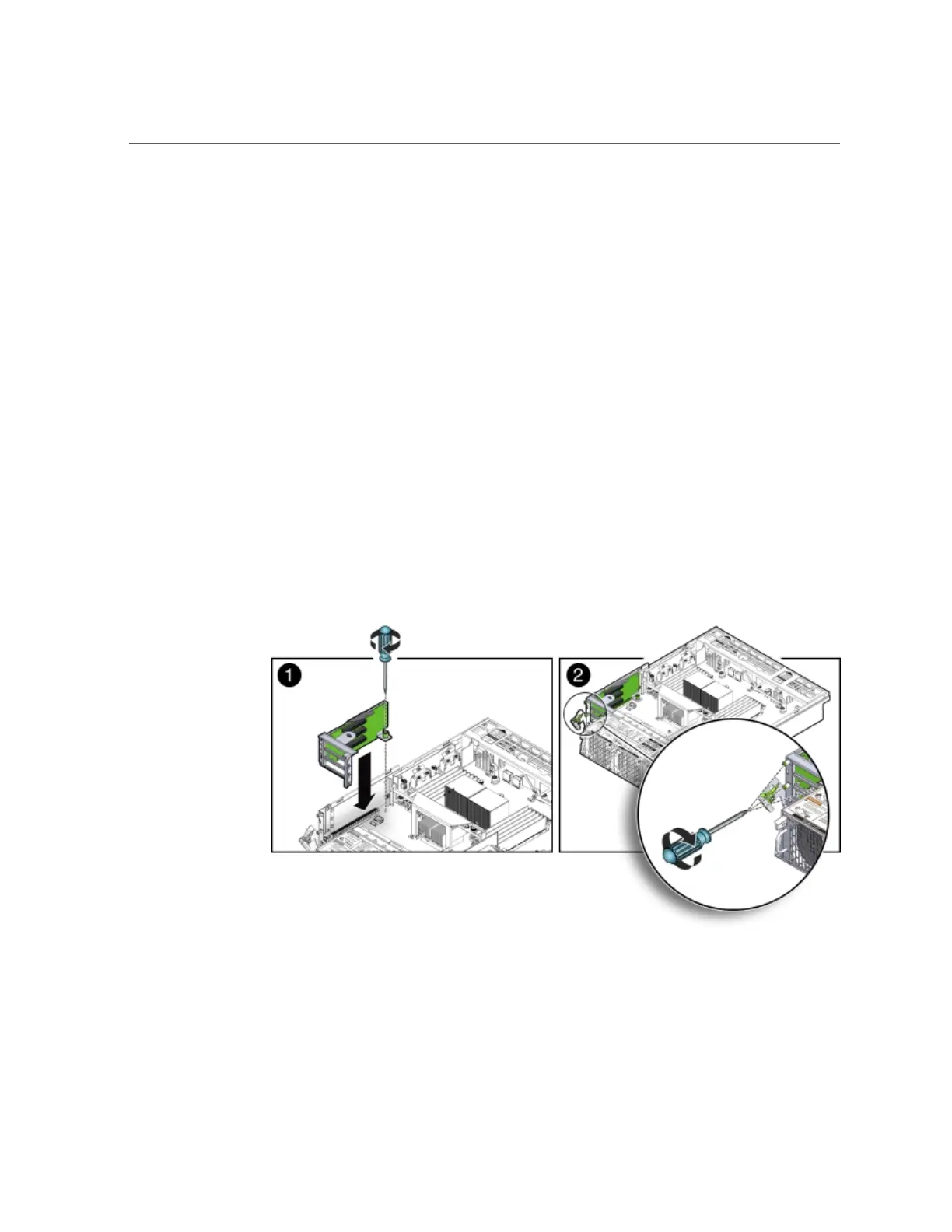

Lower the PCIe riser and any cards attached to it, into the server node [1].
c.
Push the PCIe riser down until its connector is seated into the connector on
the motherboard.
d.
Tighten the green captive Phillips screw that secures the riser to the
motherboard [1].
e.
Tighten the three green captive Phillips screws that secure the PCIe riser to
the chassis [2].
Access these screws from the rear of the server node.
180 Oracle Database Appliance Service Manual • November 2017
