10. OPERATION (continued)
NOTE: When the unit pulse conditions change significantly, there may be
a possibility of difference between the preset current value and the
output current and an impossibility of appropriate synergic fine
adjustment.
(13-1) Fine adjustment of Pulse Peak Current : F13*
The fine adjustment of pulse peak current can be achieved by activating F13
using the F key [8]. The value which is substrusted or added the fine adjusting
value from the standard value of the pulse peak current is output. At the wave
pulse welding, the high pulse condition (H. pulse) is adjusted.
(13-2) Fine Adjustment of the Pulse Peak Time: F14*
The fine adjustment of pulse peak time can be achieved by activating F14 using
the F key [8]. The value which is substructed or added the fine adjusting value
form the standard value of the pulse peak time is output. At the wave pulse
welding, the high pulse condition (H pulse) is adjusted.
(13-3) Fine Adjustment of the Base Current: F15*
Fine adjustment of base current can be achieved by activating F15 using the F
key [8]. The value which is substrusted or added the fine adjusting value from
the standard value of the base current is output.
(13-4) Fine Adjustment of L Pulse Peak Current: F16*
(available in optional wave
pulse mode only)
The fine adjustment of low pulse condition (L pulse) peak current at wave pulse
welding can be achieved by activating F16 using the F key [8]. The value which
is substrusted or added the fine adjusting value from the standard value of the L
pulse peak current is output as L pulse peak current.
(13-5) Fine Adjustment of L Pulse Peak Time: F17*
(available in optional wave pulse
mode only)
The fine adjustment of L pulse peak time of the second pulse condition at wave
pulse welding can be achieved by activating F17 using the F key [8]. The value
which is substrusted or added the fine adjusting value from the standard value
of the L pulse peak time is output as L pulse peak time.
(13-6) Fine Adjustment of L Pulse Base Current: F18*
(available in optional wave
pulse mode only)
The fine adjustment of the pulse base current of the second pulse condition at
wave pulse welding can be achieved by activating F18 using the F key [8]. The
value which is substrusted or added the fine adjusting value from the standard
value of the L pulse peak current is output as L pulse peak current.

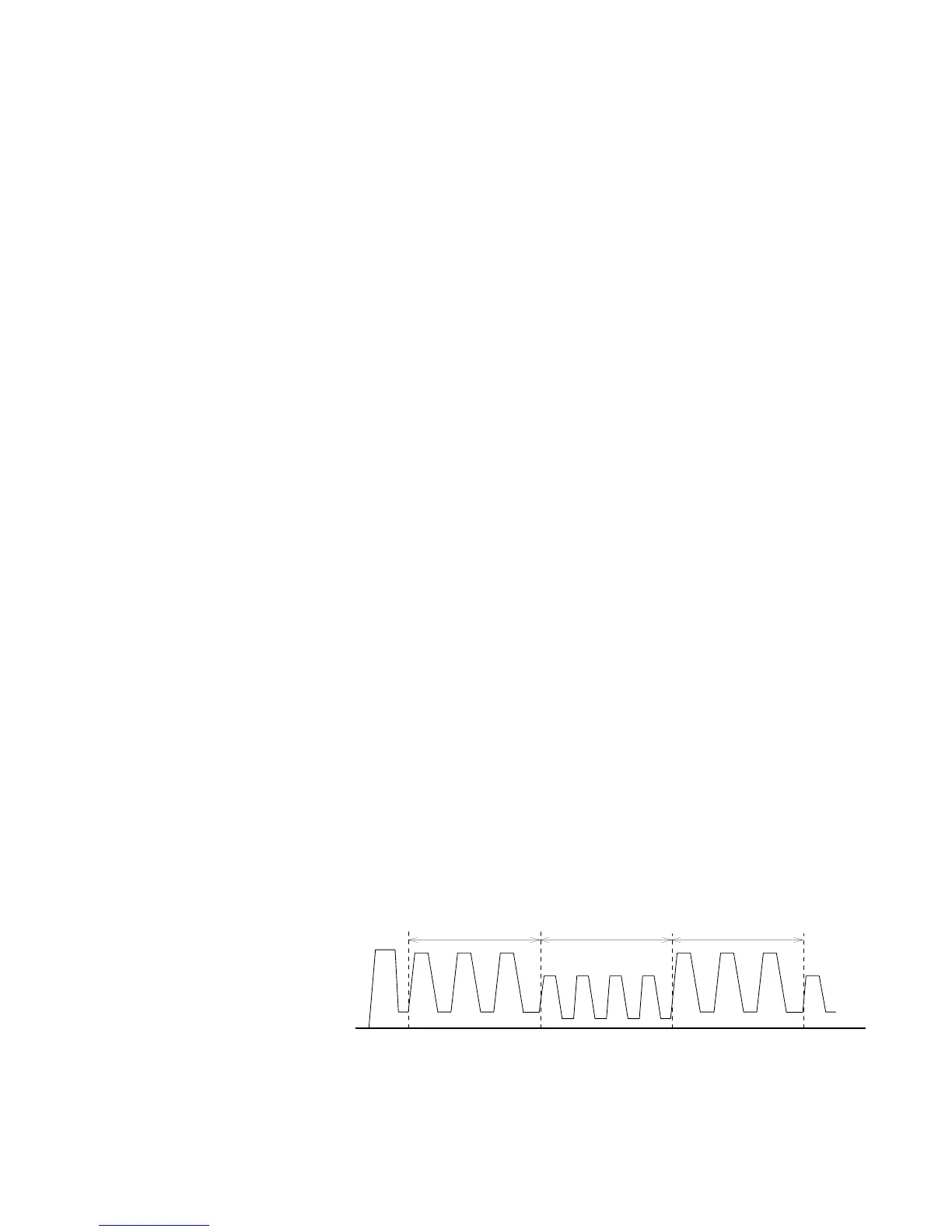

High pulse condition
