4. STANDARD COMPOSITION AND ACCESSORIES

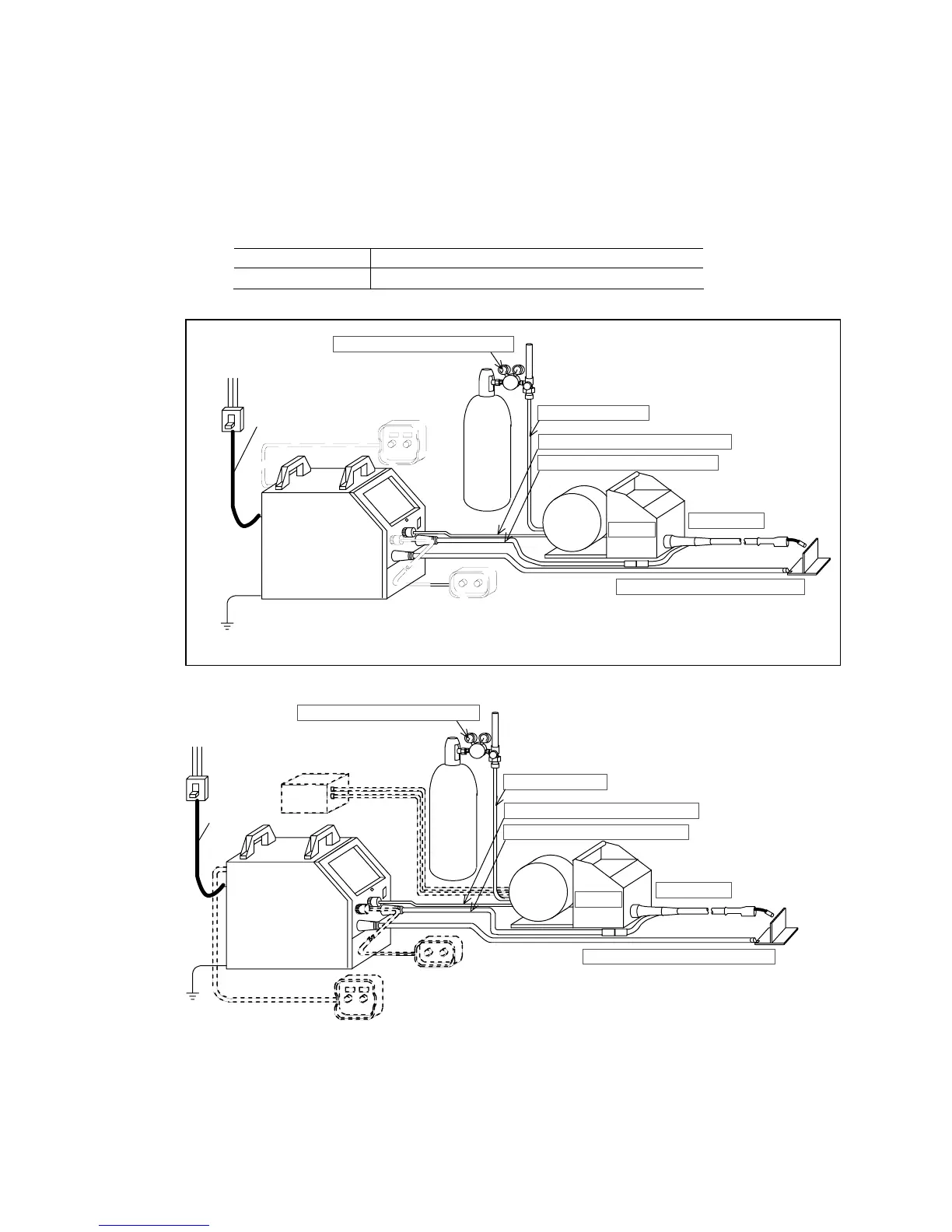

4.1 Standard Composition
xThe parts names indicated in the boxes are standard parts. They are not supplied with this
welding machine. Preparation of the standard parts except the welding power source is
required to use the welding power source.
xInput cable and grounding cable
For a switch box, the 2m input and grounding cables are from the back panel of welding power
source.
Input cable
AWG9 10mm
2
with 10mm

terminal x 3
Grounding cable
AWG9 10mm
2
with 10mm

terminal x 1
For air cooling torch
For water cooling torch
Base metal
Analog remote control with 10ft (3m) control cable
i
Optionally available
j
Digital remote control
i
Optionally available
j
Input cable 6ft (2m)
Pressure regulators for gas cylinders
Control cable with wire feeder 6ft (2m)
Shield gas
Gas hose 10ft (3m)
Power cable for wire feeder 6ft (2m)
Wire feeder
Welding torch
Power cable for base metal 6ft (2m)
Welding power source
Water cooler
Other length of cable/hose are available. Refer to section 11.4.2 “Cable/Hose”
Note; Use power cable size as follows
Up to 33ft (10m): AWG 2/0 (60mm) Up to 66ft (20m): AWG 3/0 (80mm)
Power cable connectors are attached in power source and wire feeder.
Grounding cable
Shield gas
Bas
e
Analog remote control with 10ft (3m) control cable
i
Optionally available
j
Digital remote control
i
Optionally available
j
Input cable 6ft (2m)
Pressure regulators for gas cylinders
Control cable with wire feeder 6ft (2m)
Shield gas
Gas hose 10ft (3m)
Power cable for wire feeder 6ft (2m)
Wire feeder
Welding torch
Power cable for base metal 6ft (2m)
Welding power source
Grounding cable
(Wire feeder accessory)
(Wire feeder accessory)
