10. OPERATION (continued)
(4) Selection of Auto/Semi-automatic: F4
Use this function when combining with a robot or an automatic machine.
Selection of Auto allow the welding power source to do the following operation.
x
Operation Stop can be cancelled by short-circuiting Operation Stop terminals.
x
Initial setting of this function is semi-automatic. To quit Operation Stop, start up
the machine up again.
x
After anti-stick (burnback) voltage time, the voltage to cancel deposition is
applied for approximately 0.2 second.
When using the welding power source by combining a robot, etc. and inputting
welding current and welding voltage by utilizing external voltage, set to the Auto
mode.
To activate “Auto” mode, set F4 to “on”.
NOTE: Even when supplying external setting voltage to a remote control
receptacle in the "semi-auto" mode, the values preset at the front panel are
valid. Regardless of auto/semi-auto mode, when the analog remote control
is connected, the values preset with the analog remote control are
recognized first.
x

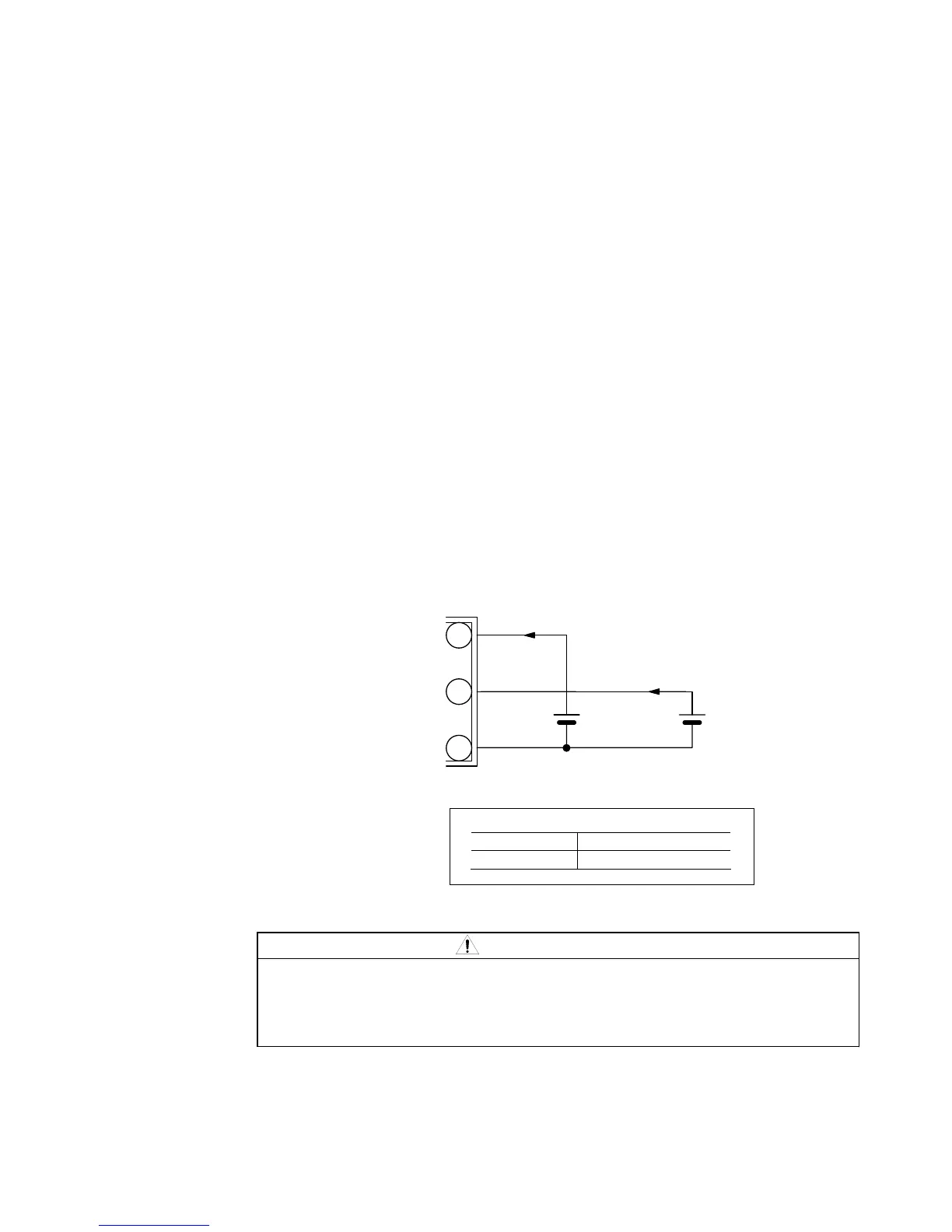

When welding current and welding voltage are input utilizing external setting
voltage, make the connections as illustrated below.
CAUTION
Supply 0 - +15 voltage to E1 and E2. Exceeding +15V may result in damage to the
control circuit of the welding power source.
Be sure to finish setting of and inputting to E1 and E2 within 100 milliseconds before
starting signals are input. Inputting after 100 milliseconds or at start signals may result
in affecting start.
S
R
P
d P
MAX 0.5mA
MAX 0.5mA
i
Welding Voltage
j
d Q
i
Welding Current
j
CON2
0V
`
15V
Remote control rece
To Next Page
