No. P10355
|63 |
11. APPLIED FUNCTION (continued)
(3) Direct Detection Signal
When using a power cable that is more than 30 m long, connect the base metal (-) and the
connector for voltage detection of wire feeder (wiring number: 310) with voltage detection
cable K5416G00. When using the equipment which employs a brush, etc., as the feeding
parts like a positioner or a turn table, attachment of the voltage detection cable to the terminal
for the base metal power cable is recommended.
Refer to Section 10.2.1(12), ” Arc voltage detection ON/OFF selection” for details of direct
detection.
*Outgoing lines of start signal and direct detection signal are located next to the 10P control
cable. Break the grommet with film.
11.4 Optional Accessories
11.4.1 Other Optional Accessories
Description Part No. Remarks
Analog remote control K5416H00 With a 3-meter cable
Digital remote control E-2454
A CAN communication module and cable are
needed.
CAN communication module L9123C00
CAN communication cable BKCAN-04XX XX= 05 (for 5 m), 10 (for 10 m)
Wheel kit K5416L00
Voltage detection cable K5416G00 30 m, with a crimp-style terminal

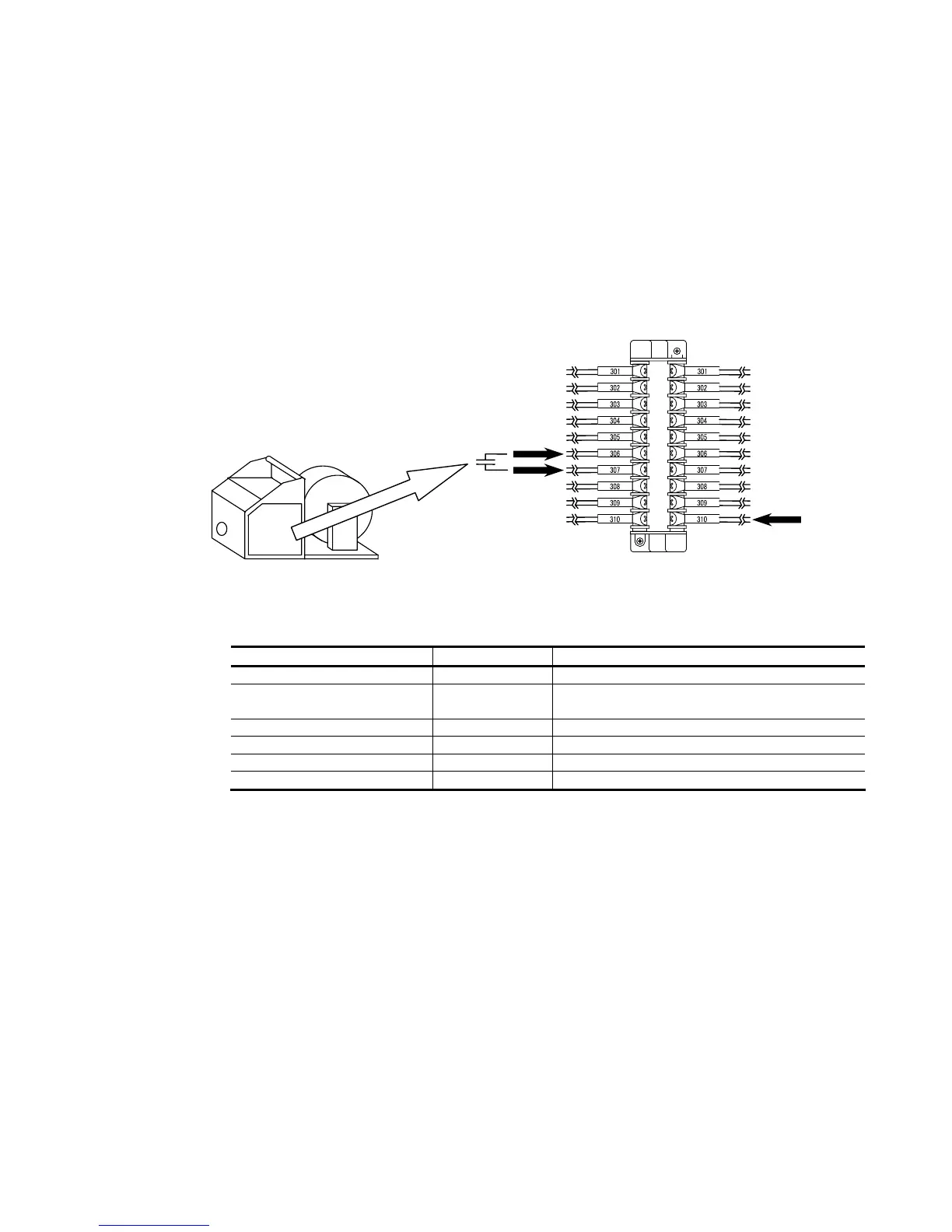

Terminals for
start signal
Terminals
for voltage
detection
To Next Page
