OTC DP-400 - Example Welding Conditions of Single Side Welding Conditions (Automatic)

No. P10355
 |26|
9. WELDING PREPARATION (continued)
(5) Example Welding Conditions of Single Side Welding Conditions (Automatic)
Plate
thickness
T (in [mm])

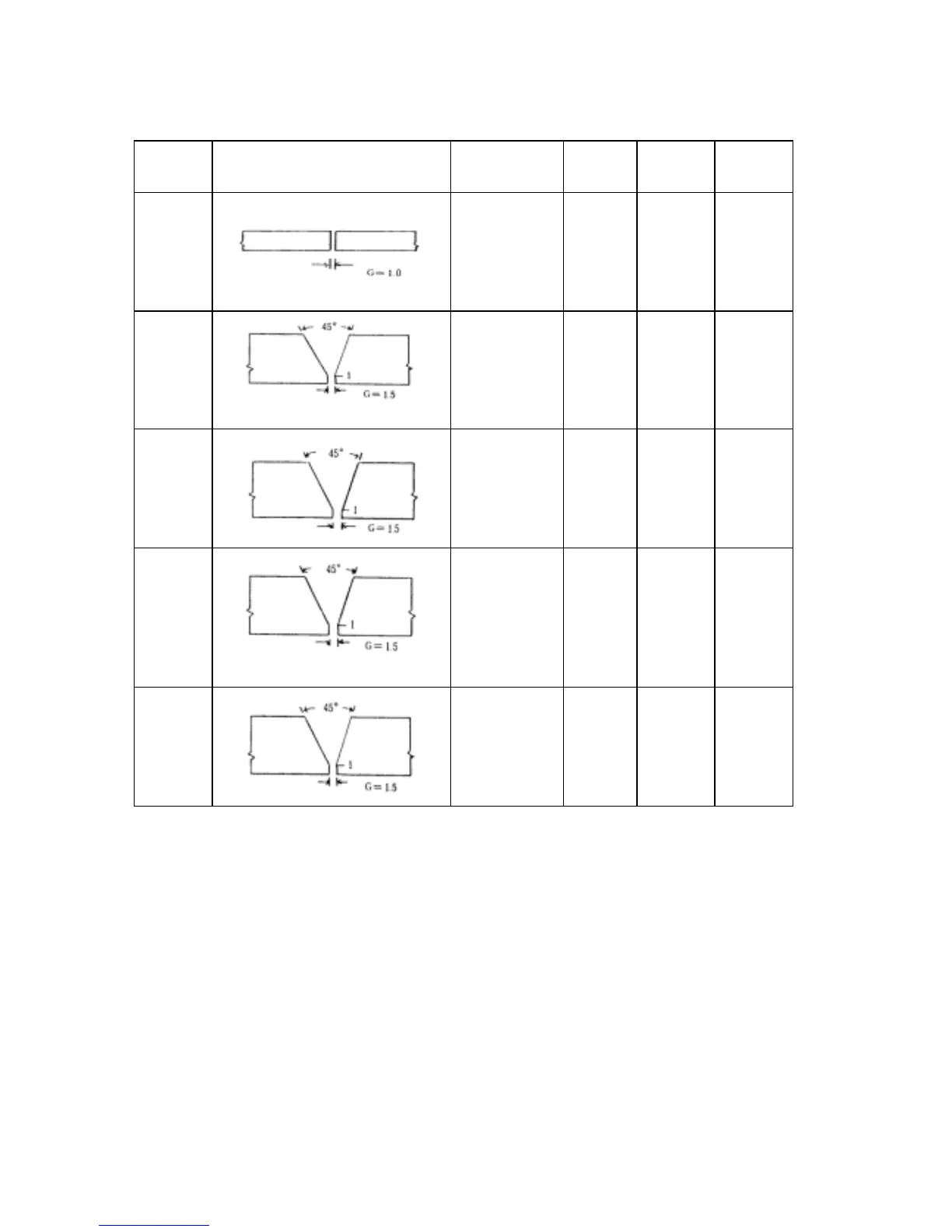

Groove shape
Number of
layers
Welding
current
(A)
Welding
voltage
(V)
Welding
speed
(ft [cm]/min)
0.126
[3.2]
1 140 24-25
1.64 [50]
0.236
[6.0]
1
2
130
150
23-24
25-26
0.82 [25]
0.82 [25]
0.472
[12.0]
1
2
180
290
24-25
30-32
0.82 [25]
0.82 [25]
0.472
[12.0]
1
2
3
180-190
200
200
24-25
25-26
26-27
0.82 [25]
0.82 [25]
0.82 [25]
0.748
[19.0]
1
2
3
180
300
300
24-25
29-30
29-30
0.82 [25]
0.82 [25]
0.82 [25]
Oscillation width: 0.047in [2 mm]
Oscillation times: 120 times/min.
