10. OPERATION (continued)
A
LOAD Function
The welding conditions stored in memory are read out from the memory inside
welding power source.
NOTE: The welding conditions currently used can be overwritten with the
welding conditions read out. When you wan to save the welding conditions
that have been used until now, preset the welding conditions to any
condition number, then carry out readout.
x
Reading out the preset welding conditions
(1) When pressing the LOAD key [19], the machine enters the readout mode,
LOAD lamp (located at the upper left of the LOAD key) lights up. See the
figure below. The condition number "1" in the right-side display blinks and the
JOB No. LED lamp lights up. In the left-side display, the setting of welding
current preset to condition number "1" lights up. Under this condition, a
condition number can be set while turning the parameter adjusting knob [6].

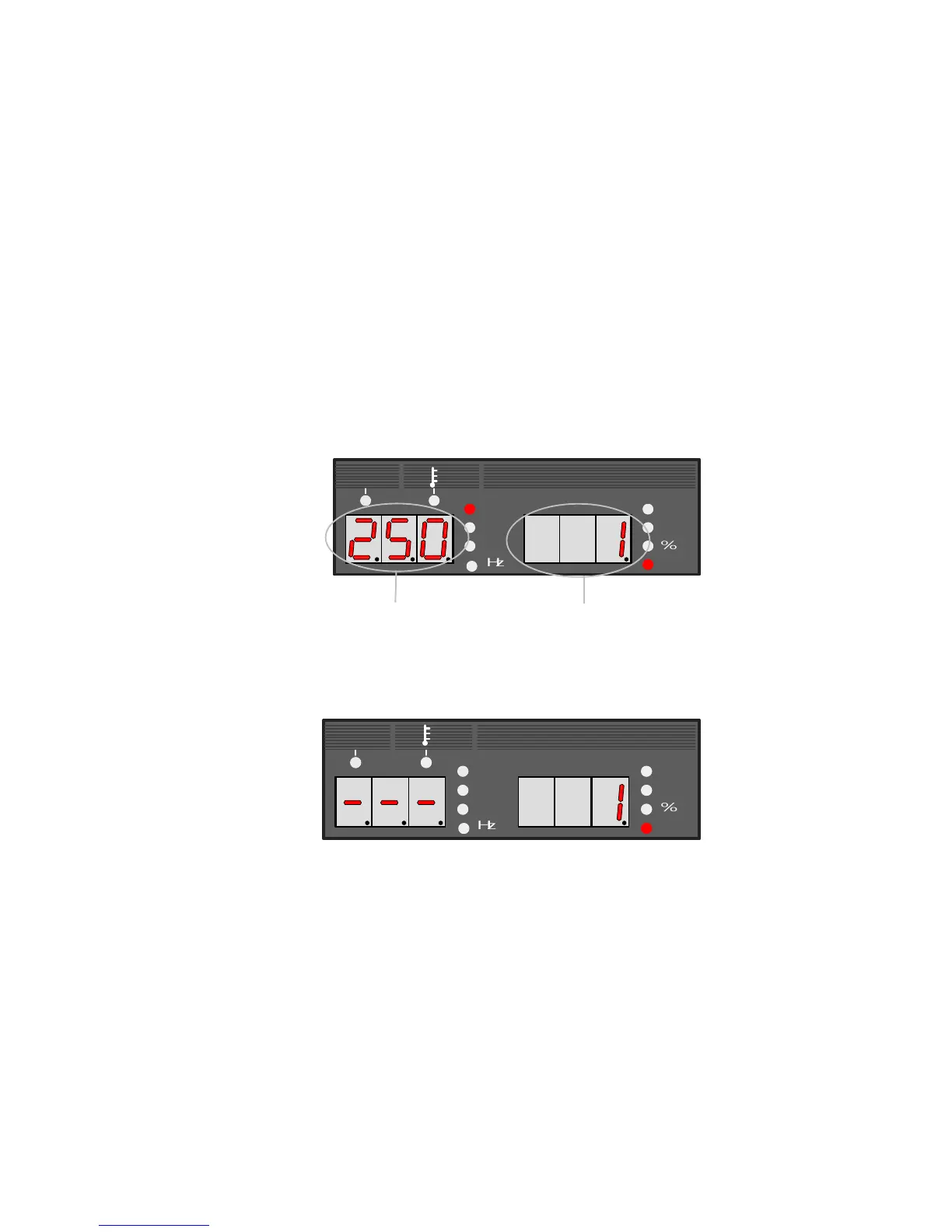

Welding Current held in memory
Condition blinks
In the event that any memory data is preset to the condition number you
selected, the CRATER lamp, the WELDING METHOD lamp, etc. also
light up. When no memory data is preset to the condition number, "- - -"
in the left-side display blinks. See the figure below.
(2) When pressing the ENTER key [21] after setting the condition number, the
ENTER lamp (located at the upper left of the key) blinks. Under this condition,
you are allowed to confirm the setting of each parameter you want to read
out by using the DISPLAY CHANGE key [8]. The setting of the parameter
you selected blinks.
NOTE: You are not allowed to change condition number or select a
welding method, etc. To reset the condition number, press the SAVE
key [20], then return to the step (1). To quit the setting and exit from the
readout mode, press the SAVE key [20].
(3) When pressing the SAVE key [20] again, you can read out the preset welding
conditions and exit from the readout mode.
