10. OPERATION (continued)
10.1.13 Using the Parameter Adjusting Knob
When adjusting parameters using the parameter adjusting knob [6] during welding, change
over the display mode to the “parameter setting value display” mode by pressing the
DISPLAY CHANGE key [8]. The initial conditions, the main conditions, and the fill crater
conditions can be changed during the INITIAL welding, MAIN welding, and CRATER
welding respectively. Pressing the ARC CONTROL key [9] after changing to the
“parameter setting value display” mode adjusts the pulse arc characteristics. Pressing the
WAVE PULSE key adjusts the wave frequency. In the “average parameter value display”
mode, you can not adjust the parameter.
10.1.14 Using the Analog Remote Control K5416H (optional accessory)
The welding machine automatically recognizes the analog remote control when the power
switch is turned on. When the analog remote control is connected to the welding power
source, the analog remote control is recognized first. Therefore, even when selecting
welding current/voltage, the welding current/voltage can not be adjusted by using the
parameter adjusting knob [6] on the front panel. When the analog remote control is
connected, adjust the parameter while turning the WELDING CURRENT/VOLTAGE knobs
on the analog remote control. It is possible to verify the parameter setting values which are
preset with the analog remote control, in the displays of the front panel. Once the analog
remote control is disconnected, the setting values preset with the remote control are
erased.
NOTE: With the power switch turned off, connect or disconnect the analog remote
control.

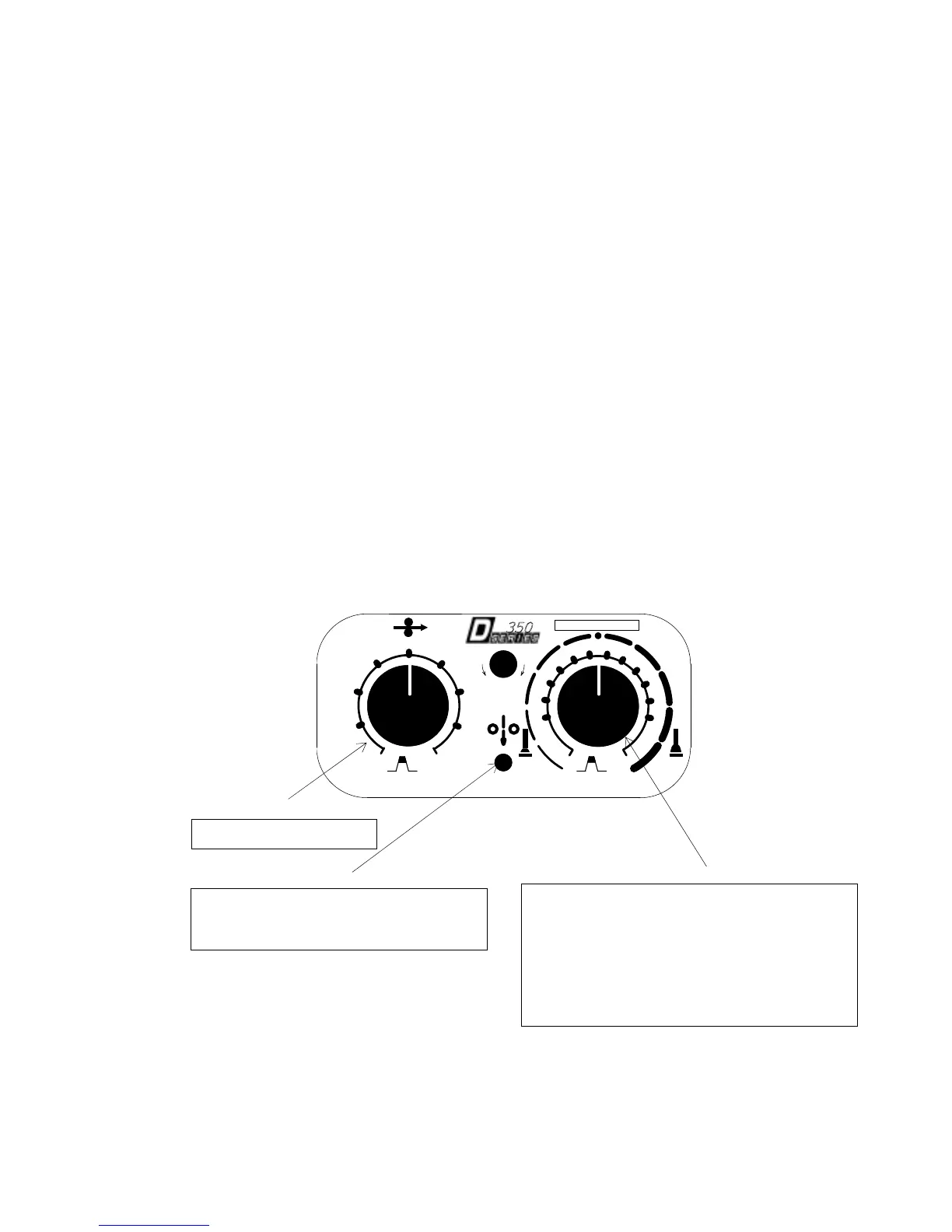

WELDING CURRENT knob
INCHING button
To set welding current.
Pressing this switch feeds wire only. The
wire feed rate changes by turning the
WELDING CURRENT knob on the left.
< INDIVIDUAL adjustment>
Set welding voltage.
< SYNERGIC adjustment >
A
ligning to mark “ Ɣ ” achieves the standard
setting. Turn the knob in the "HIGH" direction to
increase voltage and in the "LOW" direction to
decrease voltage.
VOLTAGE knob
