Panasonic CZ-CFUNC2 - Indication for Air Conditioner Configuration; System off Indication

ー 16 ー
Display and settings for the communication adaptor board Various procedures

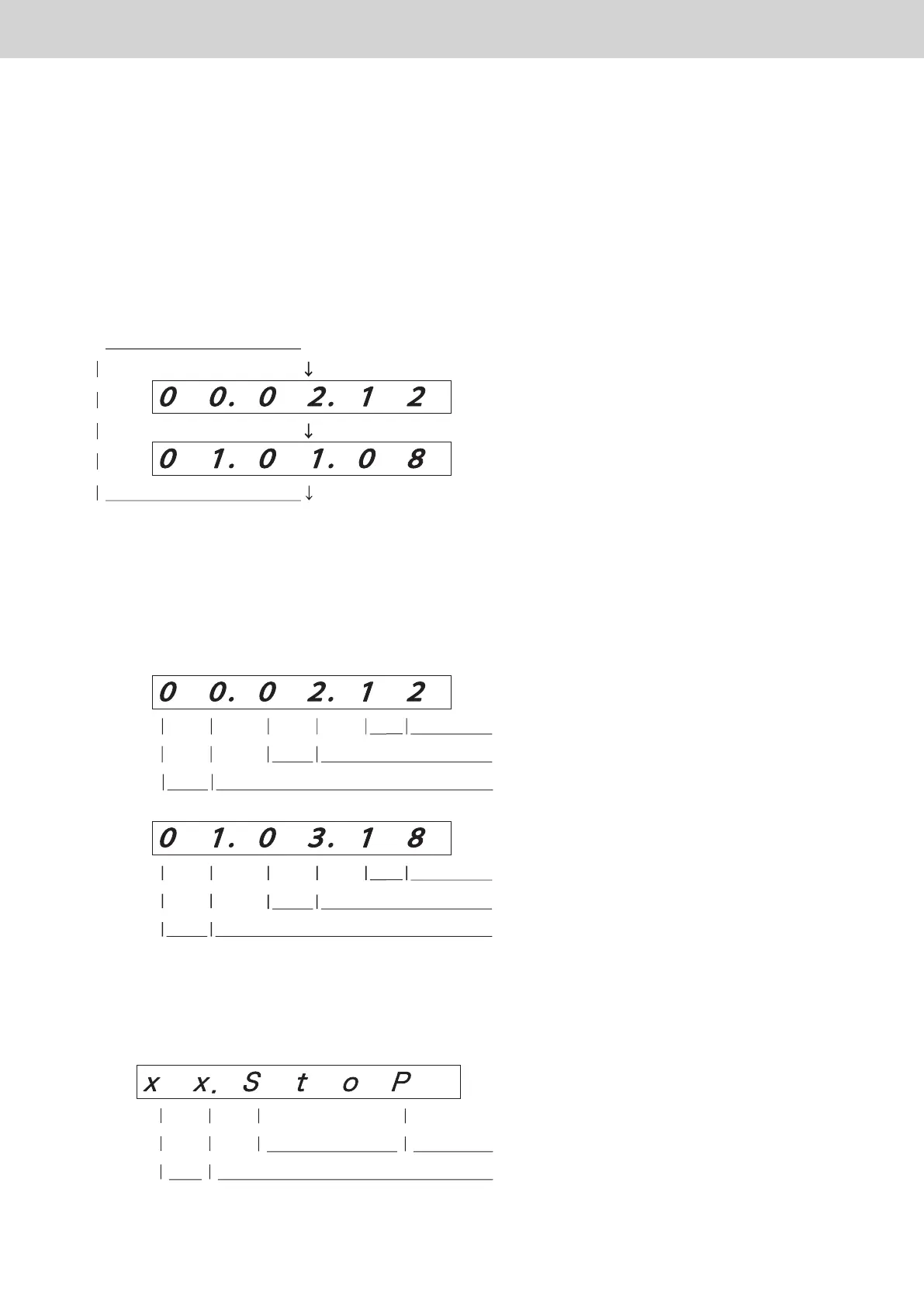

4. Indication for air conditioner conguration
•
While the indication for air conditioner configuration is displayed, information on the configurations of the indoor
unit linked system 1 and linked system 2 are alternately displayed for 10 seconds each.
•
If the touch switch on the adaptor board is not operated, the indication for air conditioner configuration is
normally displayed.
(Information on the indoor unit linked system 2:
10 seconds)
(Information on the indoor unit linked system 1:
10 seconds)
•
Content displayed during normal display
Example: When 2 outdoor units and 12 indoor units are connected to the air conditioner LINK 1, and 3 outdoor
units and 18 indoor units are connected to the air conditioner linked system 2
Link address 1 (Linked system 2)
Link address 0 (Linked system 1)
Number of connected outdoor units: 3 units
Number of connected outdoor units: 2 units
Number of connected indoor units: 18 units
Number of connected indoor units: 12 units
5. System OFF indication
Air conditioner link number (X = 00 to 14)
(STOP blinking)
•
While the system is OFF, the above is displayed.
•
The normal status is restored by restarting the power supply.
