Display and settings for the communication adaptor board
Various procedures
■ (06) Physical address settings and check
Normally, it is not necessary to check/set the physical address.

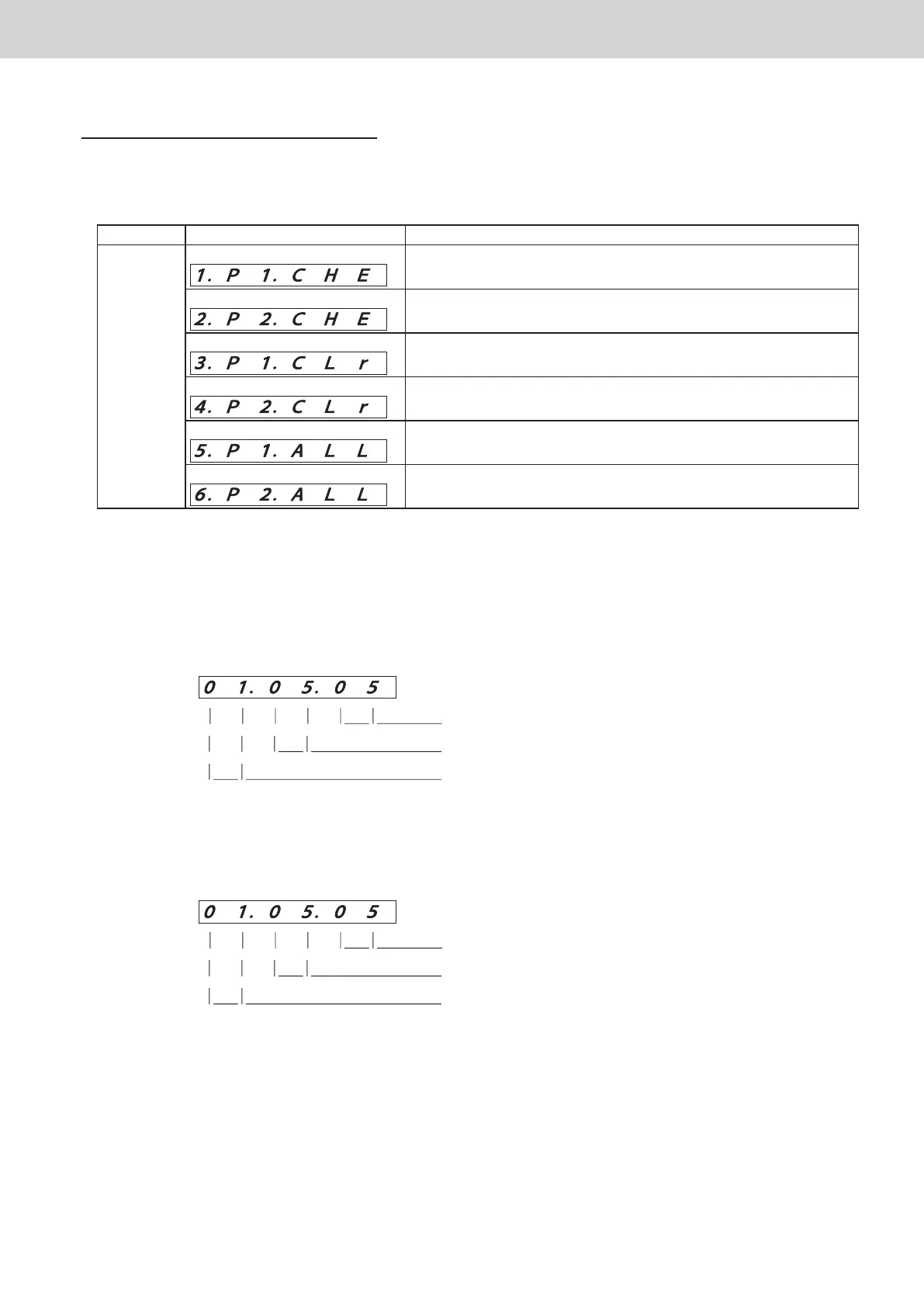

Display Function
↑
DOWN
ＵＰ
↓
Physical address check / individual setting of air conditioner
linked system 1
Physical address check / individual setting of air conditioner
linked system 2
Clear the physical address of all indoor units of air conditioner
linked system 1
Clear the physical address of all indoor units of air conditioner
linked system 2
Automatic physical address setting of all indoor units of air
conditioner linked system 1
Automatic physical address setting of all indoor units of air
conditioner linked system 2
(06–01) Physical address check / individual setting of air conditioner linked system 1
(06–02) Physical address check / individual setting of air conditioner linked system 2
•
Check screen
Physical address
Indoor unit number
System address
•
Press the UP or DOWN key on the check screen to confirm the physical addresses of all indoor units.
•
Press and hold the SET key for at least 1 second on the check screen to display the individual settings screen.
Blinking: Physical address
Lit: Indoor unit number
Lit: System address
•
On the individual settings screen, press the UP or DOWN key to change it to the physical address you want to
set.
(Changeable range: 0 to 99)
•
Press and hold the SET key and when the display changes from blinking to lit, the change is completed.
