Communication adaptor microcomputer rewrite procedure Various procedures
3. How to check the version of the communication adaptor microcomputer

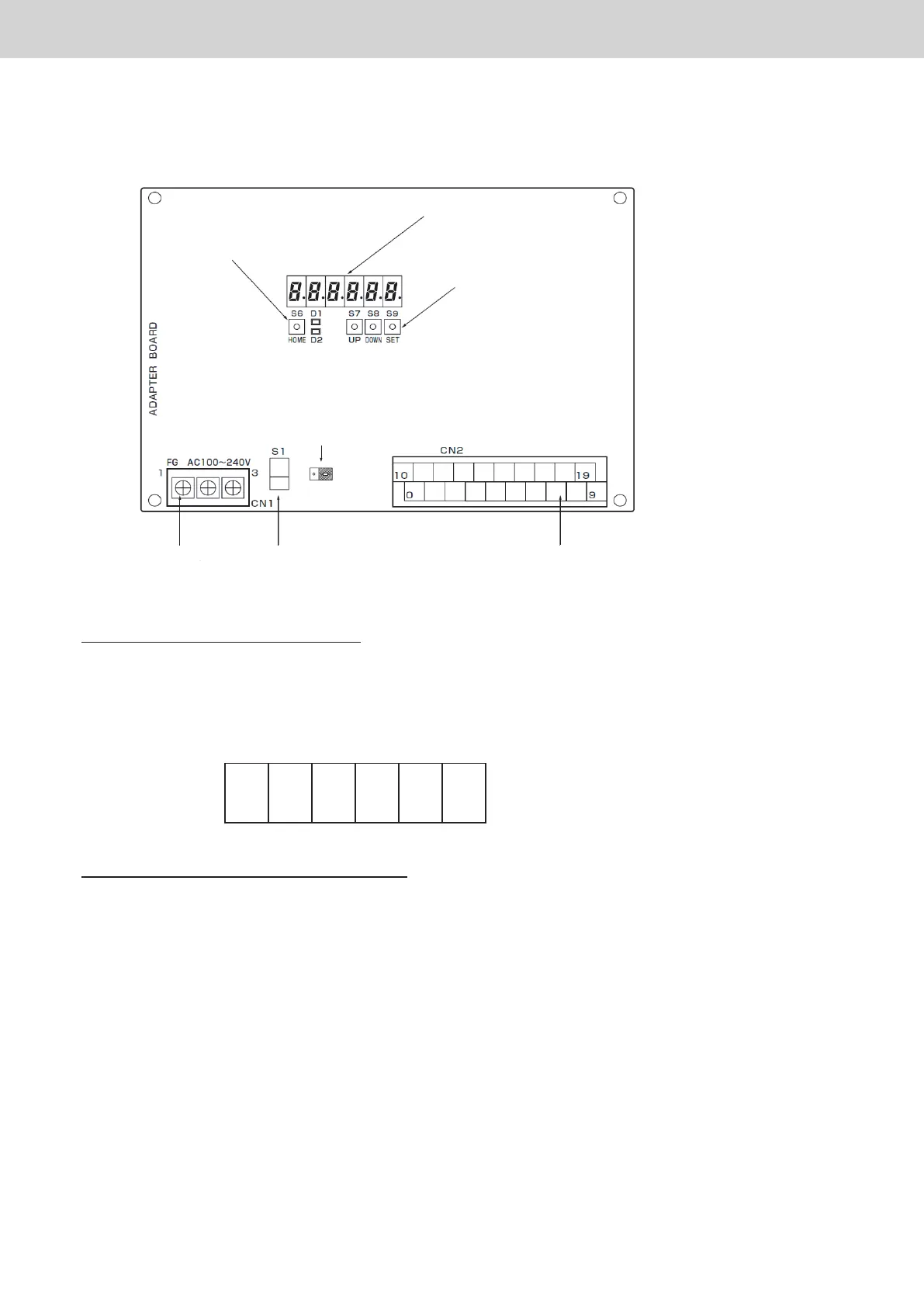

CN32
BA
Terminating resistance plug for
communication adaptor control wire
Signal terminal
strip
Power switchPower supply
terminal strip
UP, DOWN and SET keys
7-segment numerical display LED
HOME key
1
Checking method using touch buttons
Press the HOME key and DOWN key at the same time.
The communication adaptor version is displayed on the 7-segment numerical display.
[Example] If version 4.62
V. 4. 6 2
2
Checking method using power supply restart
Restart the power supply of the communication adaptor.
Immediately after turning on the power of the communication adaptor, all segments of the numerical display
(888888) will light up for 3 seconds, then the version will be displayed for 3 seconds.
