Procedure for replacing touch panel LCDVarious procedures
Procedure manual for replacing the LCD panel with touch panel of the Intelligent Controller.
* Remove the power cable, etc., and do the work with the main unit removed from the incorporated control
board, etc.
* The touch panel is integrated with the LCD.

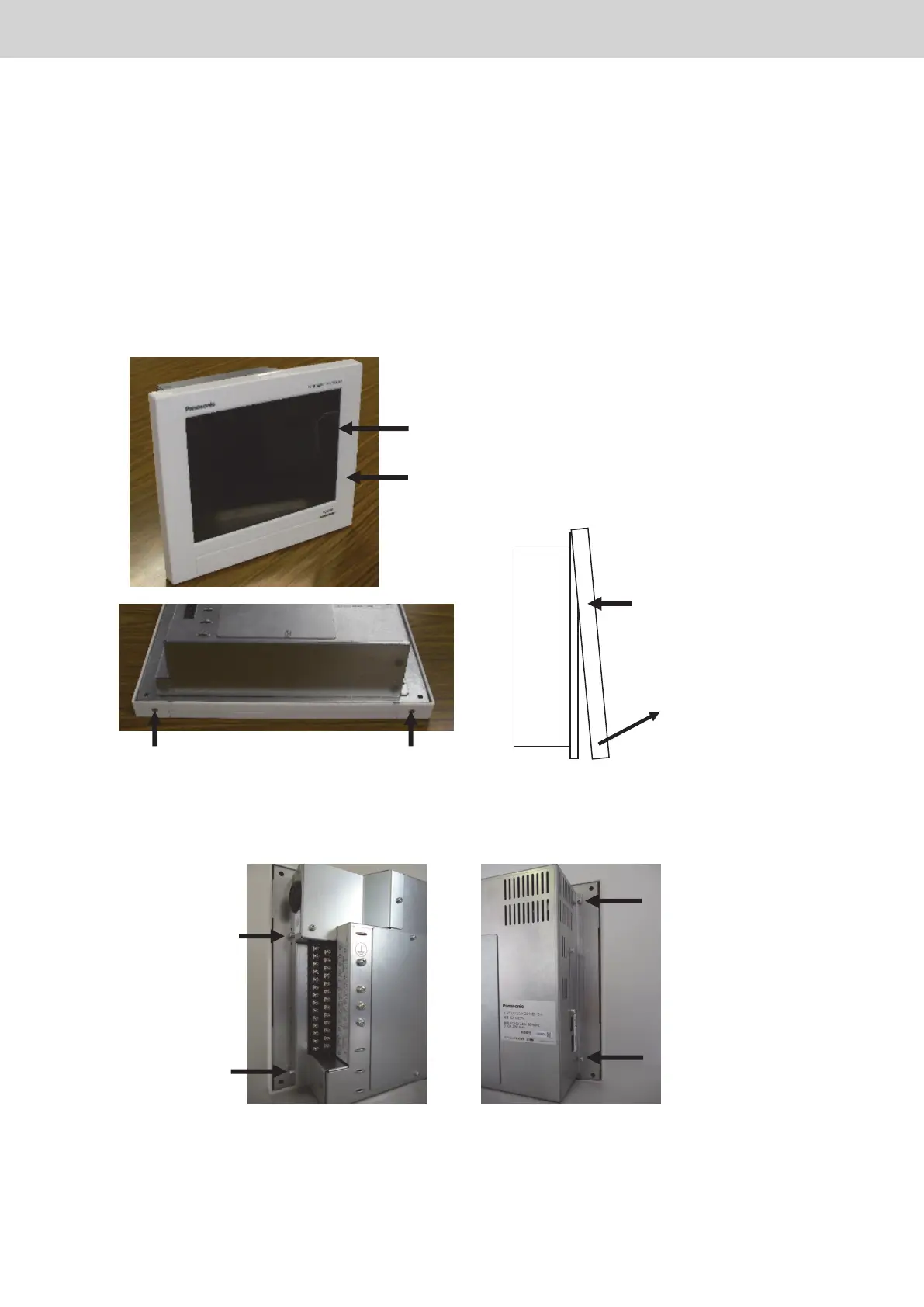

1
Remove the resin front panel. (Two countersunk screws)
As shown in the figure below, remove the two screws on the bottom left and right sides, and lift the bottom
side to remove the front panel.
㩷㩷㩷
㩷
LCD panel
Front panel
Front panel
Lift the lower side forward
to remove
Screw Screw
(Bottom surface of the
main unit)
2
Remove the sheet metal on the back of the main unit. (Four screws)
Remove the four screws (left and right sides) of the sheet metal as shown in the figure below.
㩷㩷㩷㩷㩷 㩷
Screw
Screw
Screw
Screw
Procedure for replacing touch panel LCD
