ー 42 ー

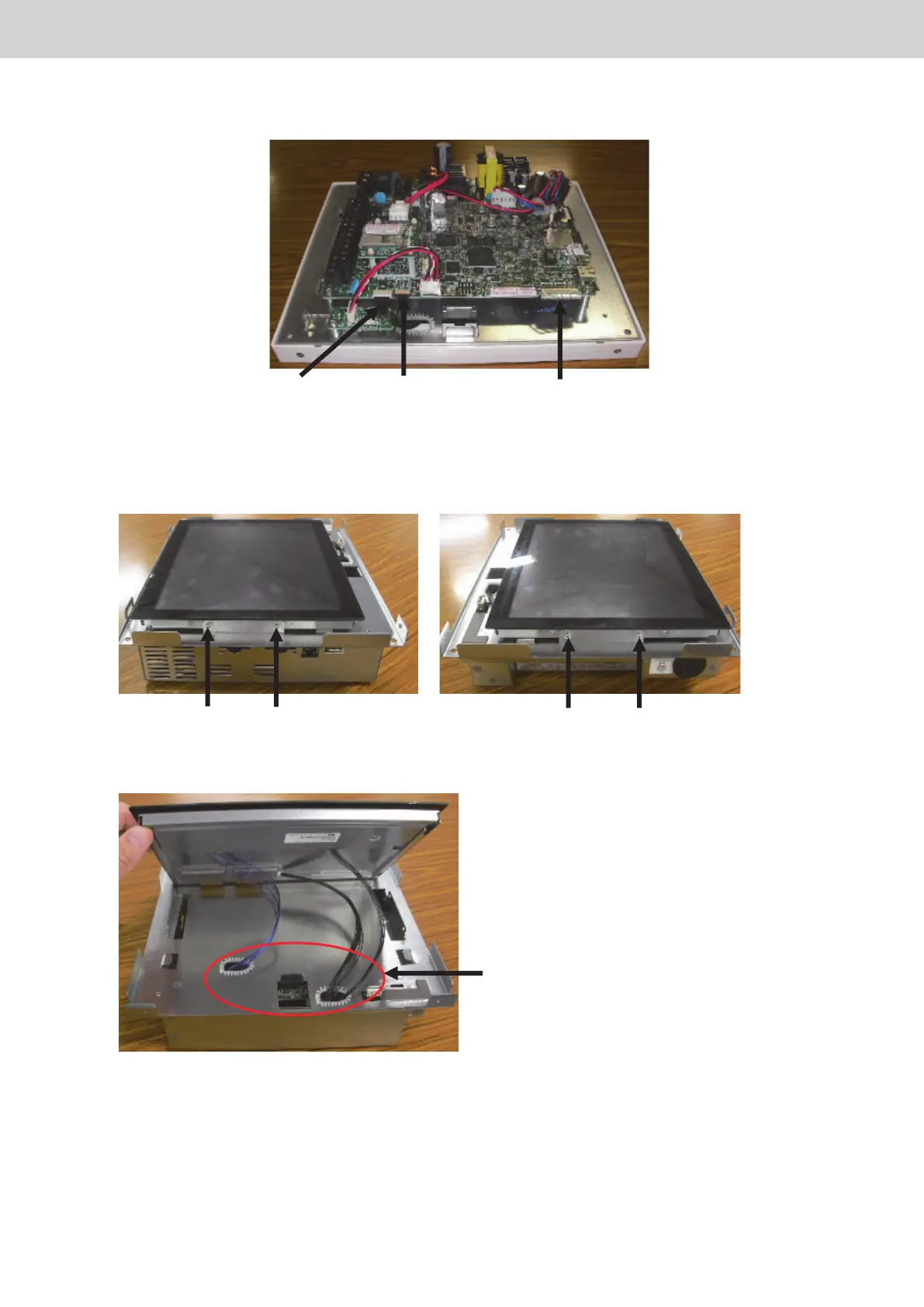

Procedure for replacing touch panel LCDVarious procedures
3
Remove the LCD and touch panel connectors. (Three places)
Cables for
touch panel
Cables for
LCD backlight
Cables for LCD
4
Temporarily mount the sheet metal on the back of the main unit (screw fastening not required), remove the
screws on the sides of the LCD with the LCD facing up. (Four places)
㩷㩷
Screw ScrewScrew Screw
5
Lift the front side of the LCD forward and pull out the three cables.
Pull out the three cables
TGR-318_ENG.indb 42 2017/04/06 10:42:50
To Next Page
