Procedure for replacing touch panel LCD
V
arious procedures
6

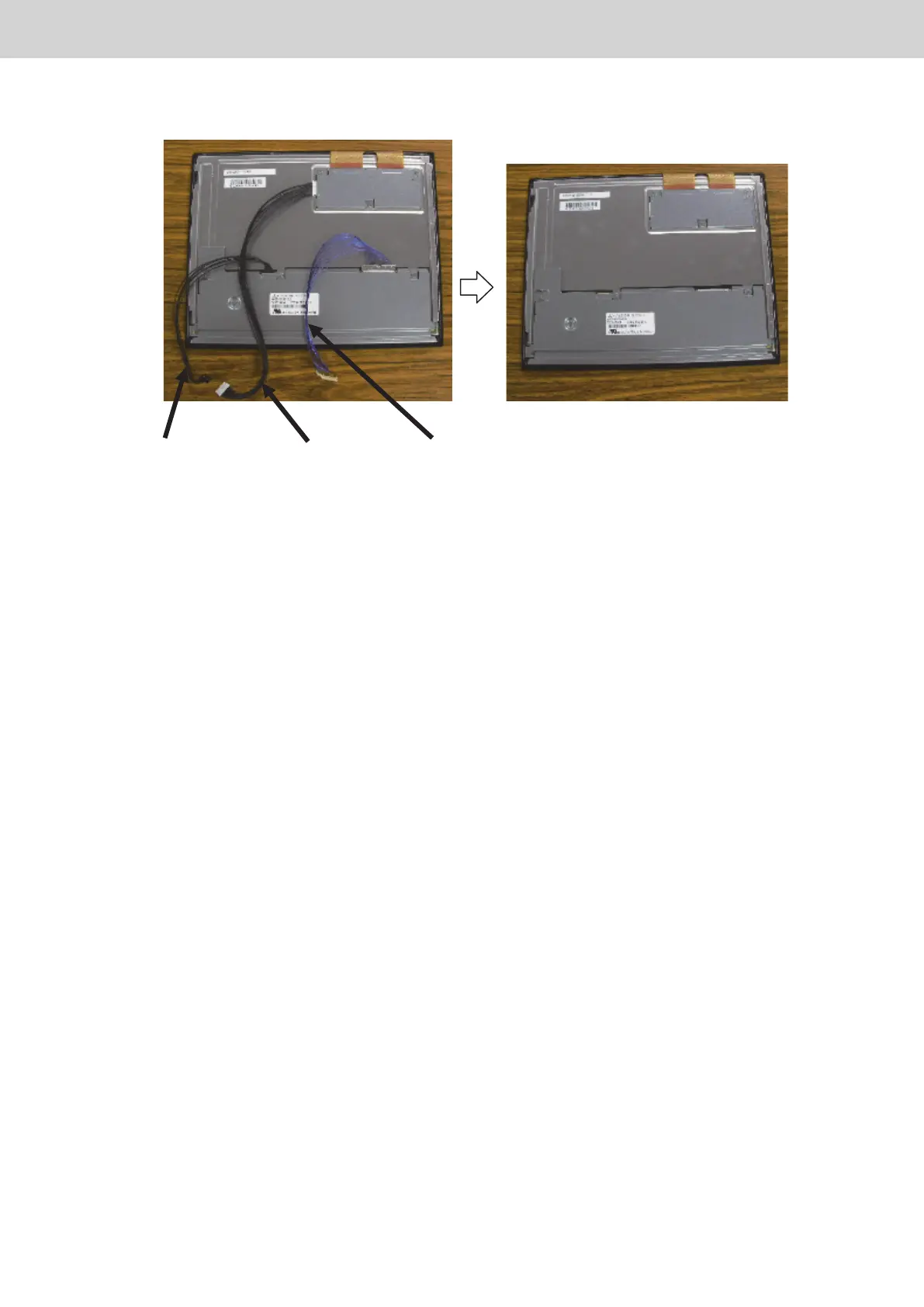

Remove the following cables and replace the LCD.
Cables for
LCD backlight
Cables for
touch panel
Cables for LCD
7
Assembly is done by reversing the above procedure.
* Pass the cable through the hole in the original sheet metal.
* Be careful that the cable does not get caught during assembly
.
TGR-318_ENG.indb 43
2017/04/06 10:42:50
44
46
Table of Contents
Table of Contents
2
Inspection Items after Repair
3
Notes on Repair
3
Notes on Products after Repair
3
Safety Precautions
3
About Noise Malfunction
4
Note
4
Fault Diagnosis Table of Contents
5
C06] Error Appears on [Alarm List] Screen
6
Communication Error Related
6
C17] or [Outdoor C17] Error Appears on [Alarm List] Screen
7
C19] Error Appears on [Alarm List] Screen
7
Disc.] Error Appears on [Alarm List] Screen
7
Nothing Is Displayed on Screen
8
Screen Display Related
8
Touch Panel LCD Does Not Work (Screen Operation Is Not Possible)
8
Cannot Enter the Screen Selected in the Menu
9
Distribution Ratio and Usage Are Displayed as 0
9
No Indoor Unit Is Displayed on the Screen, or the Number of Units Is too Small
9
Pulse Count Does Not Enter Properly
10
Cannot Back up or Restore to USB Memory Device (Button Is Greyed out and Cannot be Pressed)
11
Cumulative Operation Time (or Distribution Ratio) Is Counted Even Though the Unit Has Not Been Operating
11
Intelligent Controller Does Not Start
12
Config. Change] Appears on [Alarm List] Screen
13
Room Temperature Display Is in Error ([I/D Unit List] Screen)
13
The Schedule Timer Does Not Work Properly
14
Unit Does Not Stop (Operate) Even When Batch Stop (Startup) Input Is on
14
Unit Operation Related
14
Even if Remote Controller Prohibition Is Set, Function Settings Can be Individually Changed by the Remote Controller
15
External Alarm (Operation) Output Does Not Turn on Even Though Unit Alarm Is Detected
15
7-Segment Numerical Display
16
Communication Adaptor Board
16
Display and Settings for the Communication Adaptor Board
16
Various Procedures
16
Air Conditioner Information Collection in Progress Indication
17
Display Immediately after Power on
17
Indication for Air Conditioner Configuration
18
System off Indication
18
How to Display the Microcomputer Version
19
Advanced Settings
20
Main Menu Display
21
Outdoor Unit Data Display
22
Adaptor Data Settings
23
Communication Error Detection Interval
25
Communication Speed
25
EEPROM Initial Values List
26
EEPROM Initialisation
26
Delayed Response Settings
27
No Response Settings
27
Software Reset
27
Central Address Setting Method
28
Central Address Settings
28
Outdoor Unit Maintenance Data Not Required
28
Adaptor Number
29
Communication Adaptor Initial Settings
29
Address Valid
30
Centralised Device Main-Sub
30
Chattering Cancel Time
32
Initial Communication at Power on
33
Local Adaptor
33
Physical Address Settings and Check
34
Communication Adaptor Board Software Rewriting Method
36
Communication Adaptor Microcomputer Rewrite Procedure
36
Checking Method Using Power Supply Restart
37
Checking Method Using Touch Buttons
37
How to Check the Version of the Communication Adaptor Microcomputer
37
Intelligent Controller Software Update Procedure
38
Replacement of SD Card, and Operation Procedure at Time of Failure
39
Replacement of SD Card, and Operation Procedure at Time of Failure
40
Database Switch
41
Description of Operation Procedure
41
SD Card Copy
41
USB Output
41
Procedure for Failure and Replacement of the Sub SD Card
42
Procedures for Failure and Replacement of the Main SD Card
42
Replacement of SD Card, and Operation Procedure at Time of Failure
42
Procedure for Replacing Touch Panel LCD
43
Flow of Overall Work
46
Intelligent Controller
46
Procedure When Adding/Removing a Unit
46
Procedure When Entering or Leaving an Area MID-Period
47
Intelligent Controller (CZ-256ESMC3)
48
Preparations before Changing Settings
54
Check the Status of Air Conditioning Units
59
Installation Instructions
151
Safety Precautions
152
Specifications
152
Caution for Network Connection
153
Dimensions
153
General Precautions on Wiring
153
How to Mount (Control Box)
153
Installation Precautions
153
Mounting
153
Supplied Accessories
153
Basic Wiring Diagram
154
Preparations for Wiring
154
Connecting to External Equipment
155
Setting and Test Operation
155
For Your Safety
156
Installing
156
Instructions for the Electrical Installer
156
Arrangement of the Terminal Board and Switches
157
Connecting the Communication Line
157
Connecting the Power Supply
157
Power Supply Wiring
157
Zwiring
157
Communication Adaptor Control Wire
158
Inter-Unit Control Wiring
158
Precautions for the Communication Adaptor Control Wire
158
Wiring Procedure
158
Adaptor Number Setting Procedure
159
Setting the Communication Adaptor Board
159
Switch Operation Overview
159
Other Settings
160
Setting the Inter-Unit Control Wiring Connection On/Off
160
Communication Adaptor Setting Items
161
Outer Dimensions
162
Zconnecting to External Equipment
162
Connecting to an Intelligent Controller
163
Intelligent Controller Web Settings — Advance Check Sheet
164
Request
164
When Using a DHCP Server
165
When Using a Fixed IP Address
165
Explanation of Terms
167
About Connection
169
About Settings for the Intelligent Controller
169
Web Setting
169
PC Settings
170
Connecting to an Existing Network Using a DHCP Server
173
Checking Connection to the Web
174
Configuring Outgoing Email
175
Outgoing Email Settings
175
Set the Recipient
176
About Input of the Admin Number (Password)
177
Energysaving (Settings Related to Energy Saving)
178
Menu List Showing the Level of the Admin Number (Password)
178
Settings (Other Miscellaneous Settings)
179
