DP-8020E/8020P/8016P

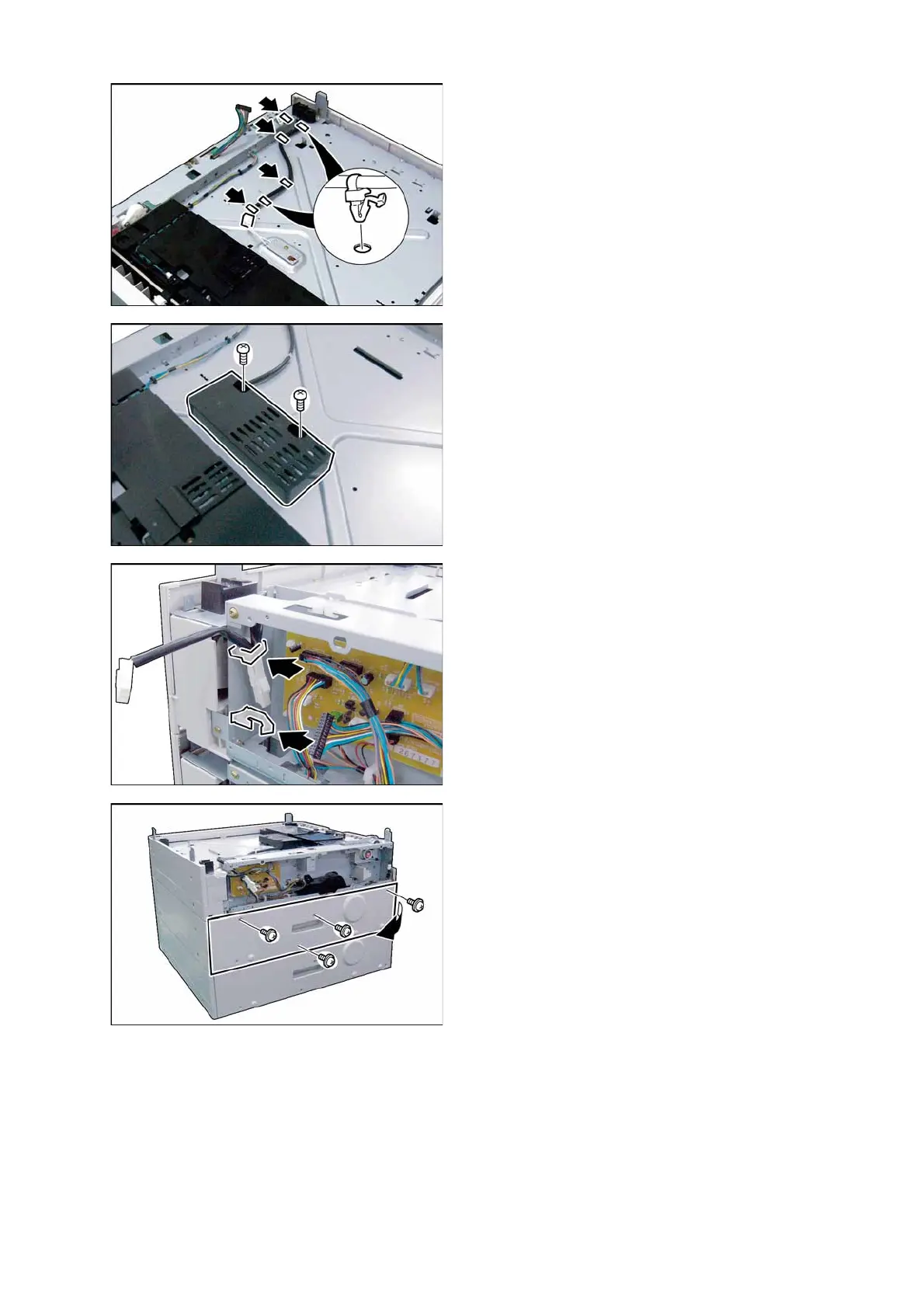

(15) Connect the PTC-AC Harness 4 to the Heater
Assembly.
(16) Insert 2 Harness Clamp of the PTC-AC Harness
4 into a pre-drilled hole in the frame.
(17) Secure the PTC-AC Harness 4 with 3 Harness
Clamps and Edge Saddle.
(18) Install the Heater Cover.
(19) Secure the Heater Cover with 2 Screws.
(20) Install 2 Clamps (DZJK000067).
(21) Secure the PTC-AC Harness 4 with the Harness
Clamp.
For a 2-Paper Tray Configuration, skip to Step
(54).
(22) Remove 4 Silver Screws.
(23) Remove the Rear Paper Tray Cover.
To Next Page
