Panasonic DP-8020E

55
SEP 2006
Ver. 1.0
DP-8020E/8020P/8016P

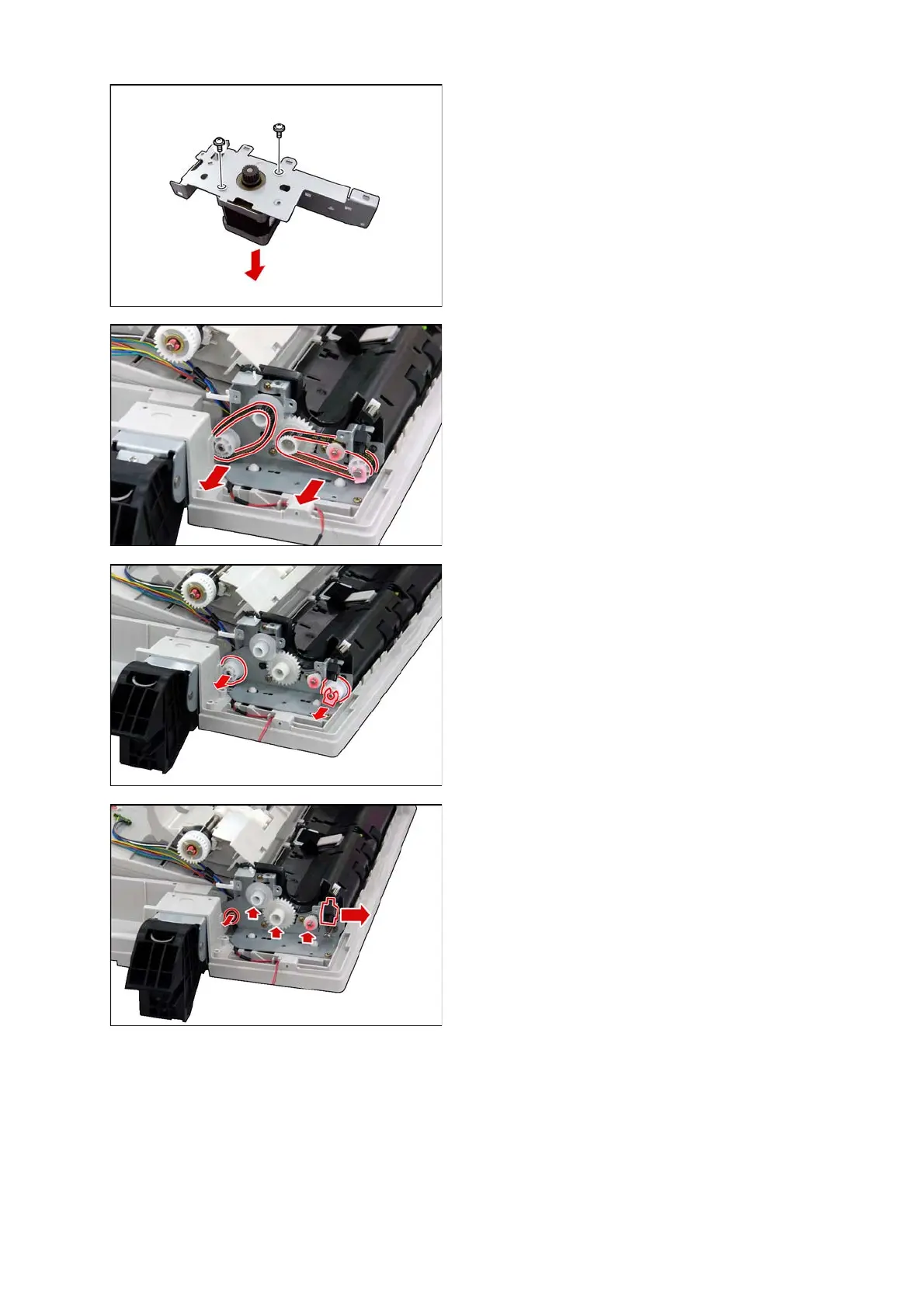

(33) Remove 2 Screws (18).
(34) Remove the ADF Motor (1905).
(35) Remove 2 Drive Belts (1911, 1912).
(36) Remove the S27 Pulley (1910).
(37) Remove the Snap Ring (B9).
(38) Remove the S27 Pulley (1910).
(39) Release the clips, and remove the Switch
(1918).
(40) Remove the Bushing (698).
Note:
Apply Molykote EM-50L Grease to 3 shafts on the
Right Bracket (1914).
