Panasonic DP-8020E

60
SEP 2006
Ver. 1.0
DP-8020E/8020P/8016P

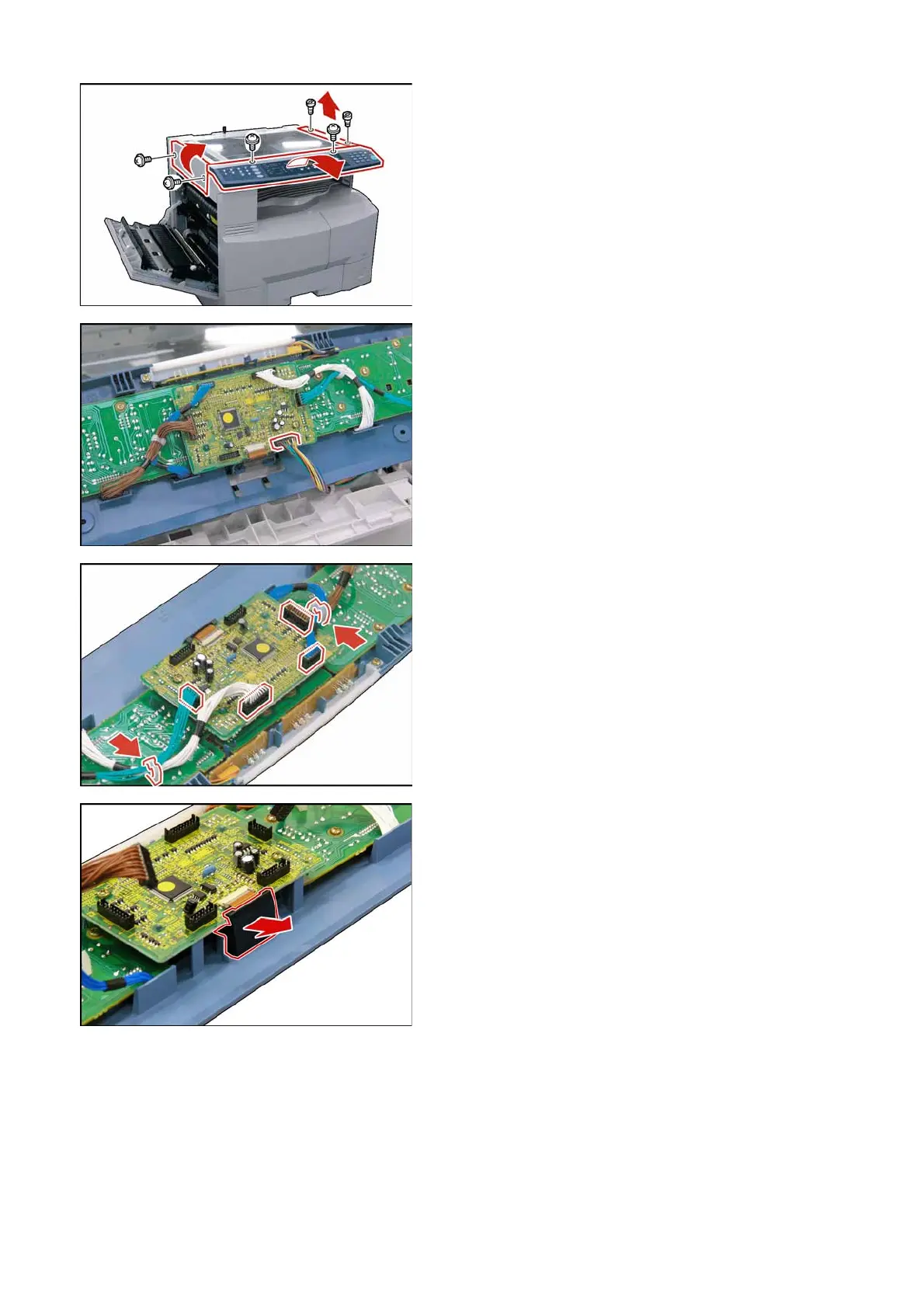

<Control Panel>
(5) Open the Left Cover.
(6) Remove 2 Silver Screws (S6).
(7) Remove the Left Scanner Cover (101).
(8) Remove 2 Shoulder Silver Screws (X2).
(9) Remove the Right Scanner Cover (132).
(10) Remove 2 Silver Screws (1027).
(11) Slightly lift the Control Panel Assembly (538).
(12) Disconnect the Harness on the PNL1 PC Board
(CN220).
(13) Remove the Control Panel Assembly.
(14) Disconnect all the Harnesses on PNL1 PC
Board.
(15) Release the Harnesses from 2 Harness
Clamps.
(16) Remove the Harness Protection Cover (518).
