DP-8020E/8020P/8016P

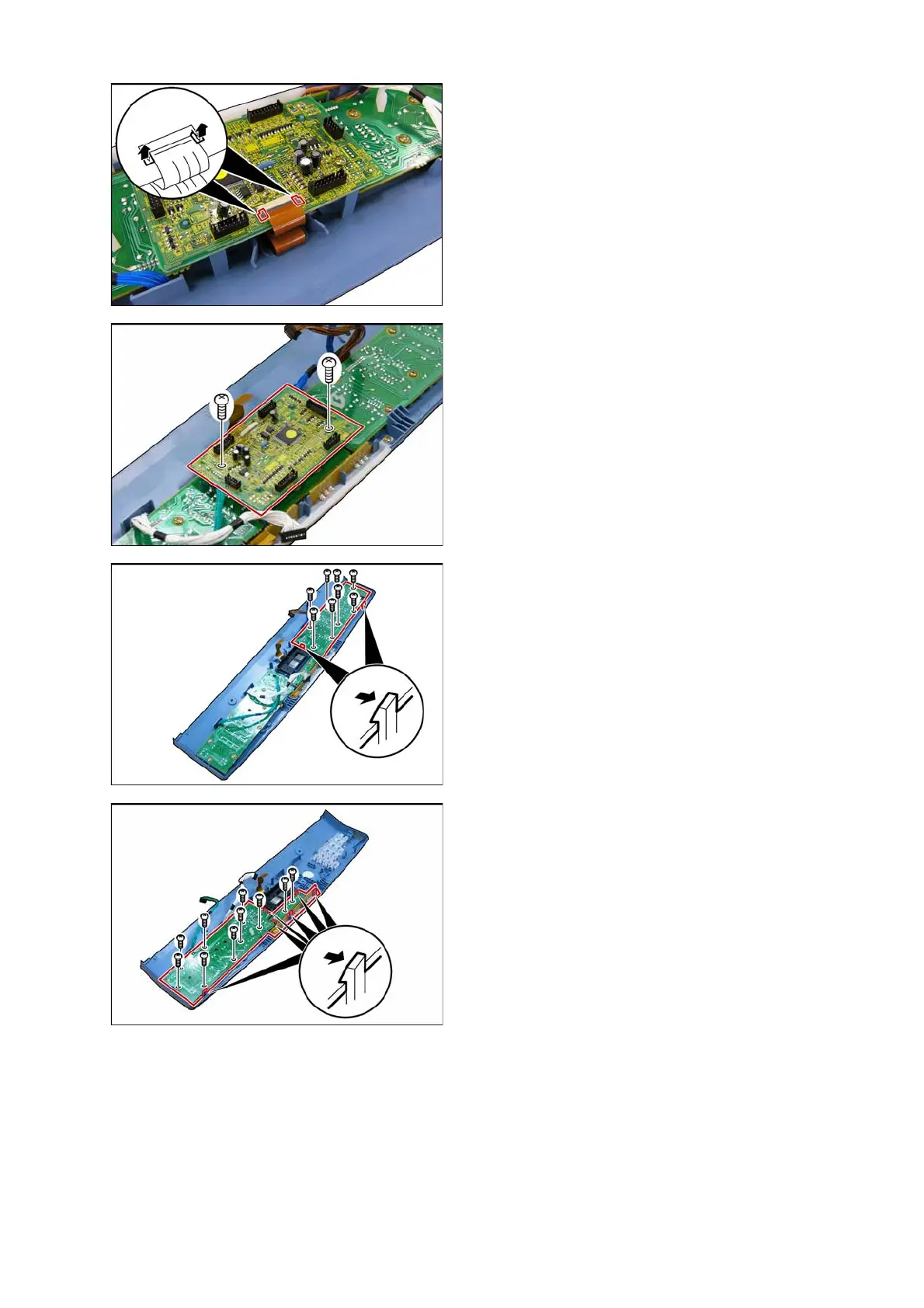

(17) Disconnect the Harness on PNL1 PC Board as
illustrated.
(18) Remove 2 Screws (X8).
(19) Remove the PNL1 PC Board (2904).
(20) Remove 8 Screws (X8).
(21) Remove the PNL 2 PC Board (2905) as
illustrated.
(22) Remove 10 Screws (X8).
(23) Remove the PNL 3 PC Board (2906) as
illustrated.
To Next Page
