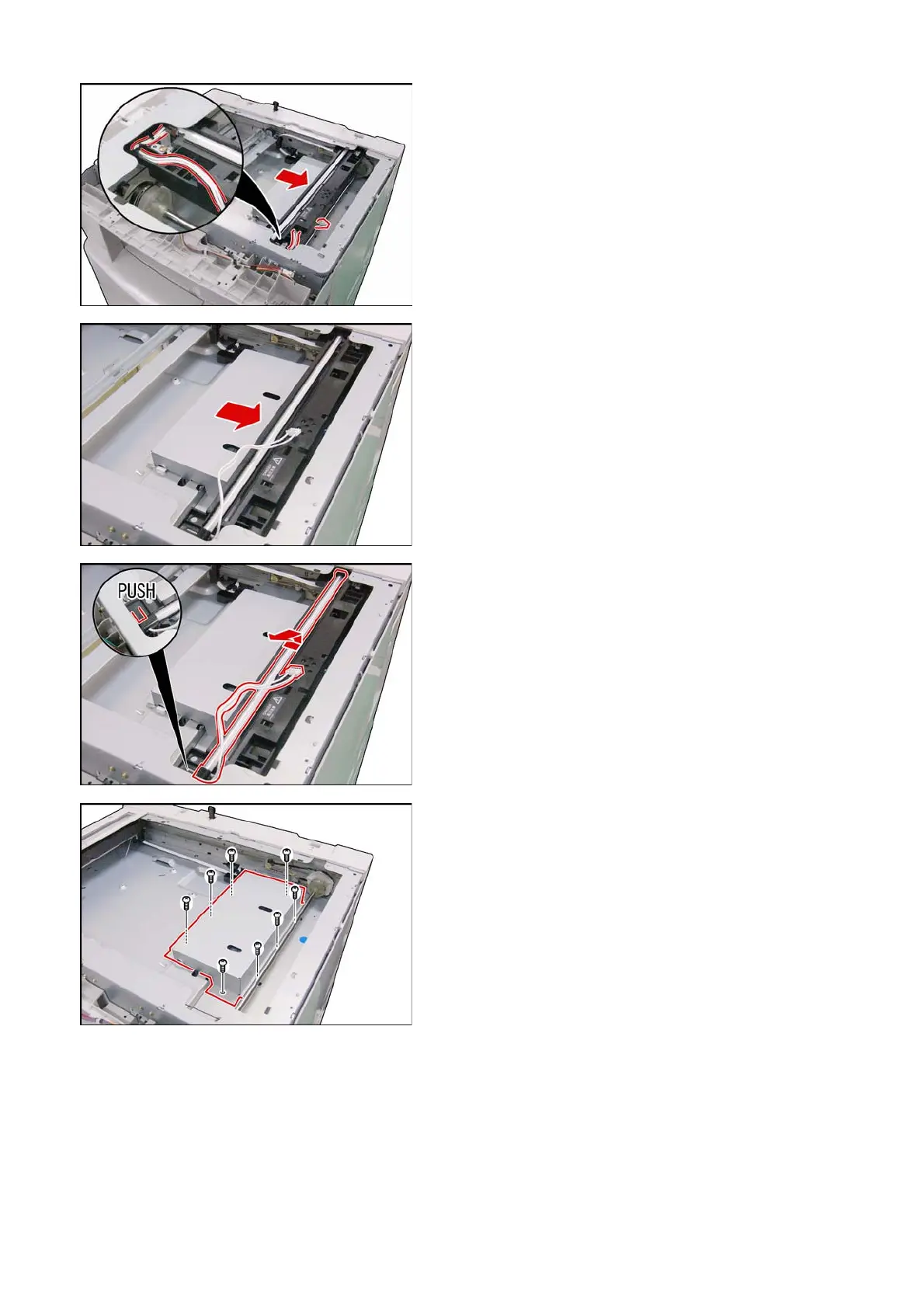

(10) Slide the Lamp Base Assembly to the right side
as illustrated.
(11) Release the Harness.
Note:
When reinstalling the Harness, confirm that the
Harness is installed as illustrated.
(12) Slide the Lamp Base Assembly to the right side
as illustrated.
(13) Remove the Scanning Lamp (410) as
illustrated.
(14) Remove 8 Screws (Y2).
(15) Remove the CCD Cover (406).
