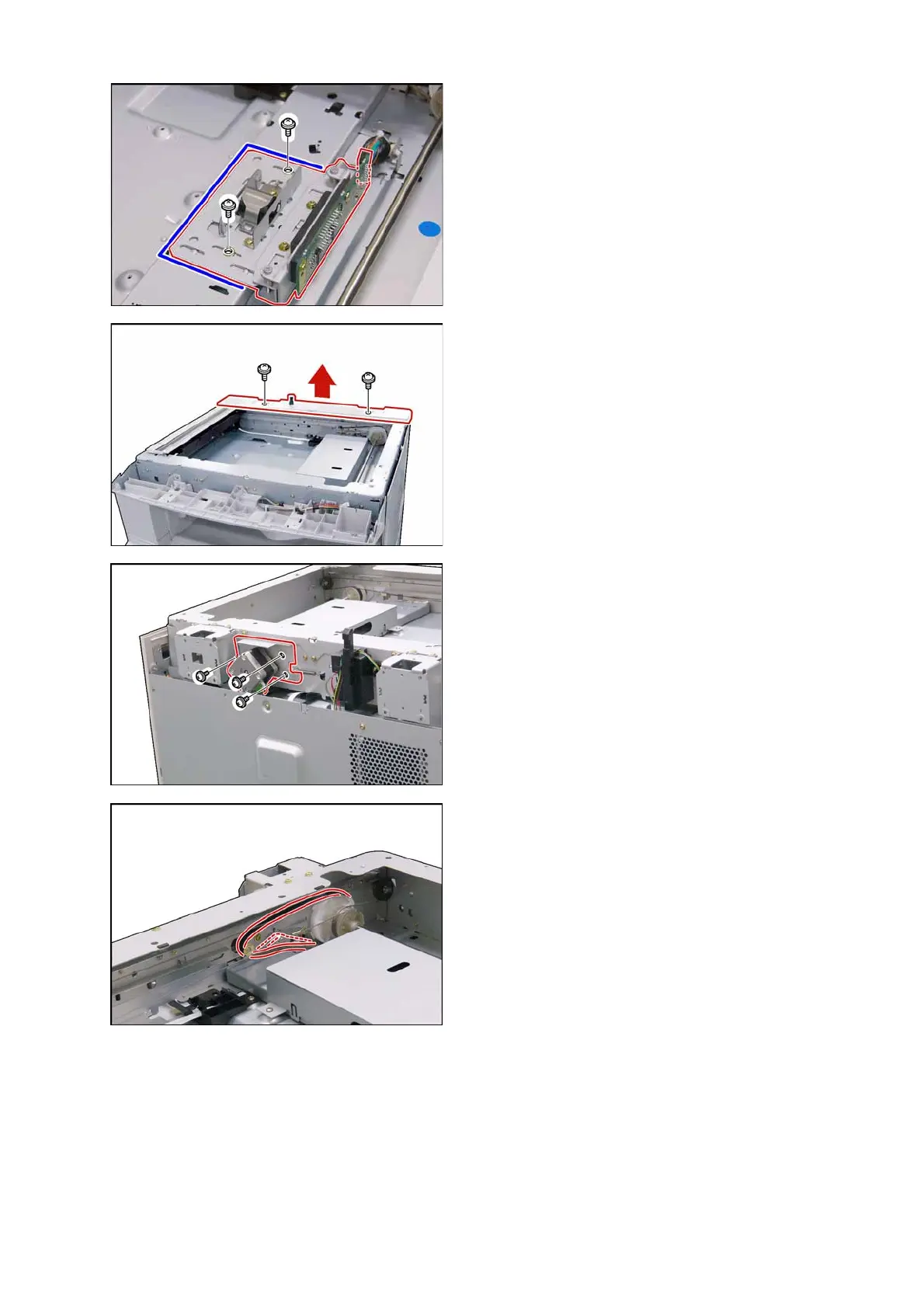

(16) Remove 2 Screws (X3).
(17) Remove the CCD Assembly (427).
Note:
Before proceeding, mark the position of the CCD
Assembly as illustrated.
If the CCD Assembly is not reinstalled at the same
position, it will affect the copy quality.
(18) Remove 2 Shoulder Silver Screws (X2).
(19) Remove the Rear Scanner Cover (102).
(20) Remove 3 Screws (Y3).
(21) Remove the Synchro Belt (318).
