DP-8020E/8020P/8016P

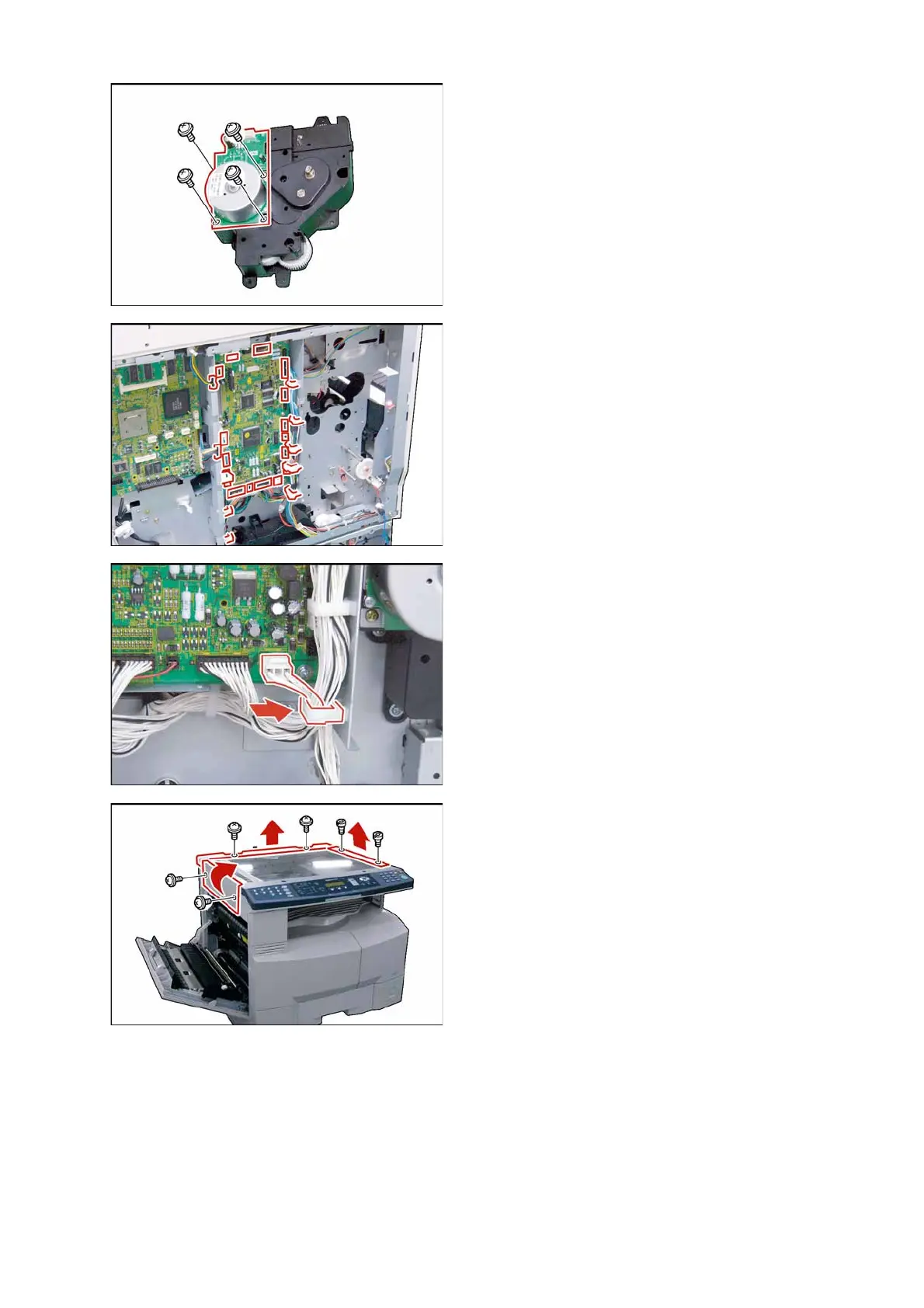

(20) Remove 4 Screws (X8).
(21) Remove the Drive Motor (1511).
(22) Disconnect all the Harnesses on the SPC PC
Board.
(23) Release the Harnesses from Harness Clamps.
Note:
When reinstalling the ILS Harness (SPC PC Board
CN708), ensure that it is secured by the Harness
Clamp as illustrated.
(24) Open the Left Cover.
(25) Remove 2 Silver Screws (S6).
(26) Remove the Left Scanner Cover (101).
(27) Remove 2 Shoulder Silver Screws (X2).
(28) Remove the Right Scanner Cover (132).
(29) Remove 2 Silver Screws (1027).
(30) Remove the Rear Scanner Cover (102).
To Next Page
