82
SEP 2006
Ve
r.
1
.
0
DP-8020E/8020P/8016P
(31)

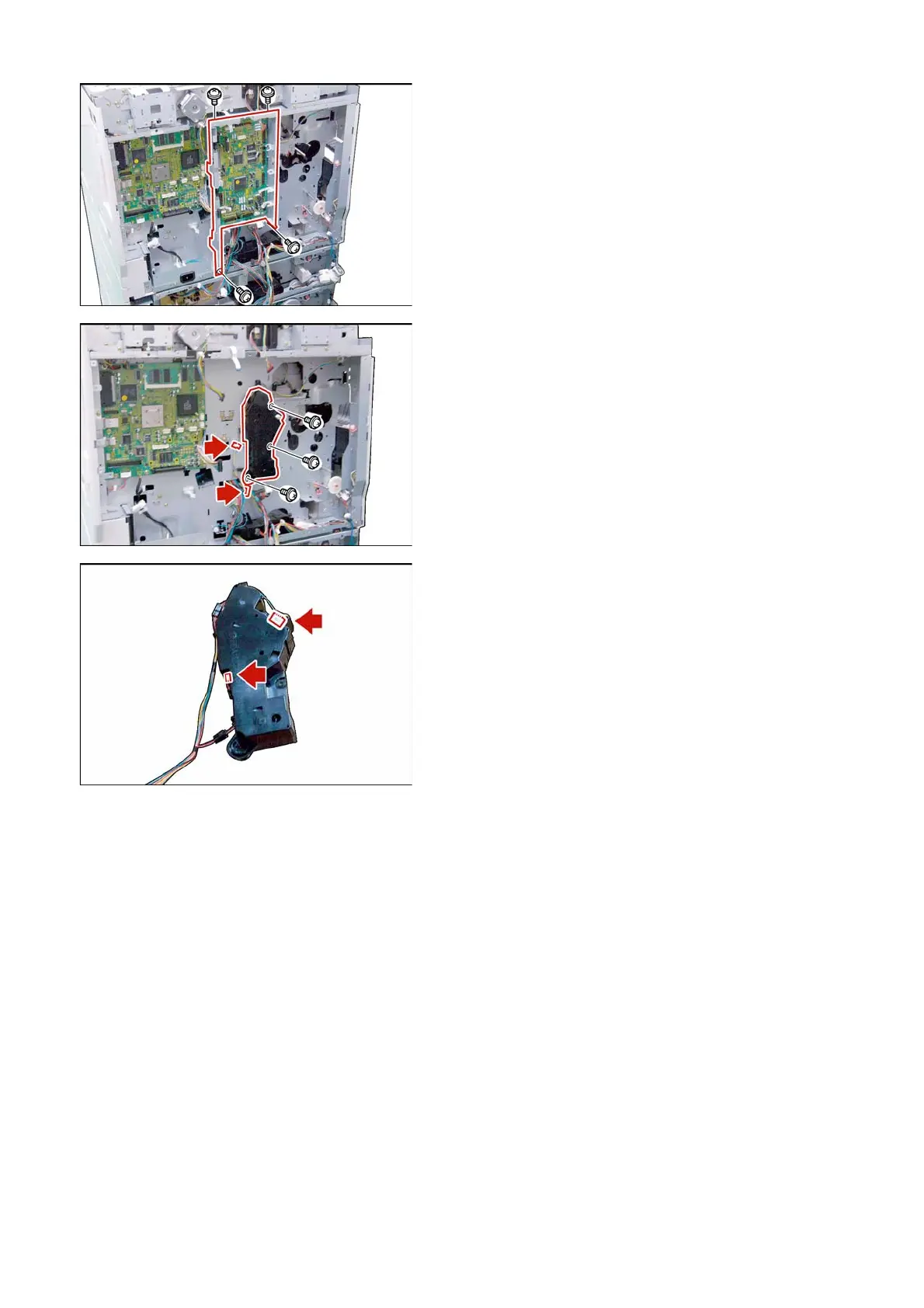

Remove 4
Screws
(Y3).
(32)
Remove the
SPC Bracket
(926).
(33)
Relea
se the
Harnesses
from Harness Clamp
s.
(34)
Remove 3
Screws
(Y3).
(35)
Remove the
T
oner Bottle Motor Unit
.
(36)
Disconne
ct the
Harness
.
