10 TrueType object

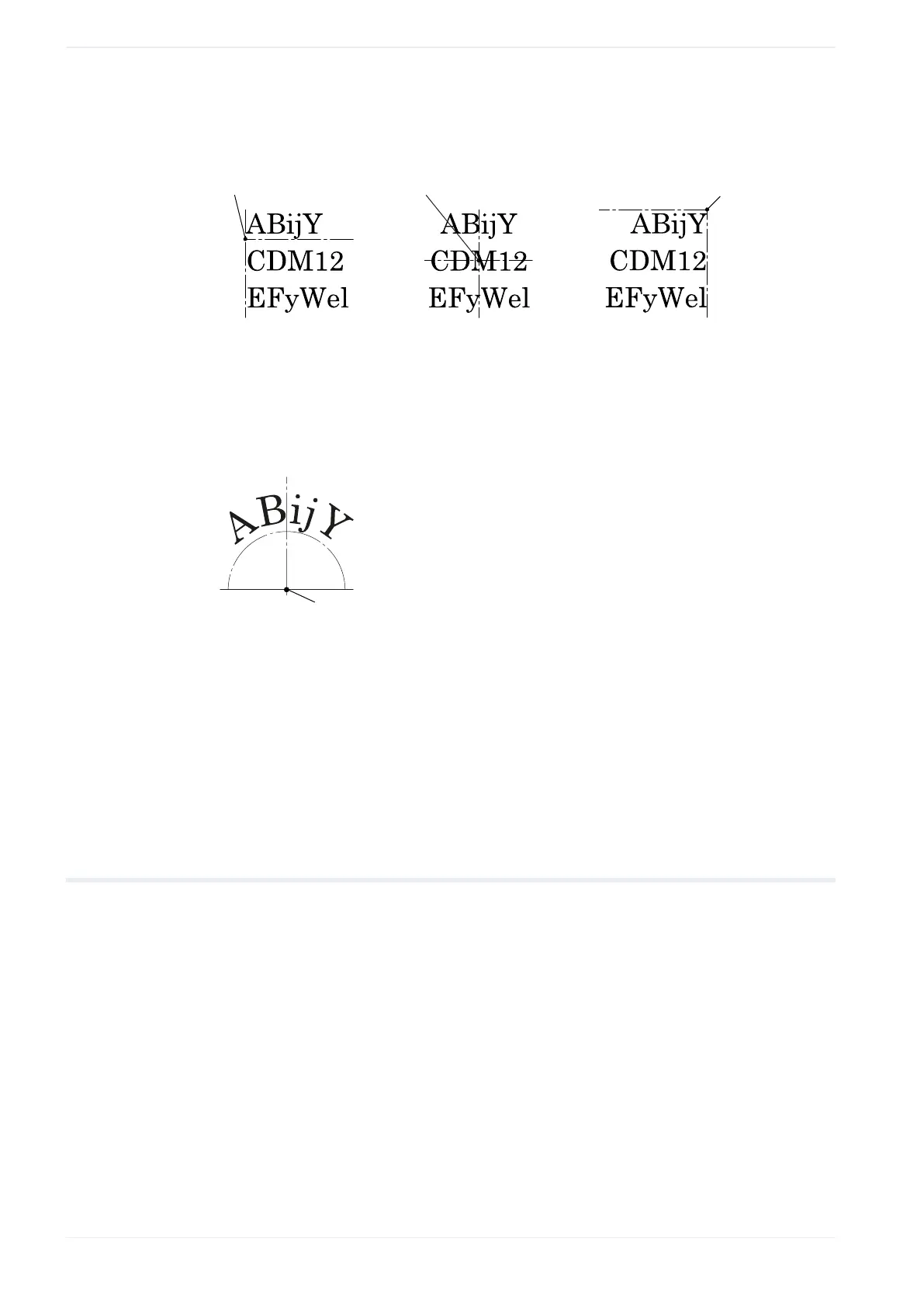

• For TrueType objects along a straight line, specify values for “X-position [mm]” and “Y-
position [mm]”. The position of an object also depends on the settings under “Horizontal
alignment” and “Vertical alignment”.
(X, Y)
(X, Y)
(X, Y)
(1) (2) (3)
(1)
“Horizontal alignment” > “Left”, “Vertical alignment” > “1st baseline”
(2)
“Horizontal alignment” > “Center”, “Vertical alignment” > “Center”
(3)
“Horizontal alignment” > “Right”, “Vertical alignment” > “Top”
• For TrueType objects along an arc, specify values for “Center X-position [mm]” and
“Center Y-position [mm]”, the arc's center.
(X, Y)
(1)
(1)
“Arc outside”
• Alternatively, select the object in the marking image editor and drag it to a new location.
Related topics
Align a TrueType object (page 110)
Move, modify or align objects (page 87)
10.6 Rotate a TrueType object
To rotate a TrueType object, set a rotation center and specify a rotation angle. Alternatively,
use the circular arrow symbol in the marking image editor.
• To edit the parameters of the TrueType object, select the object in the object list or in the
marking image editor.
The parameters are displayed in the category below the object list.
• Specify the rotation center. Depending on whether your object is arranged along a line or
an arc, specify values for “X-position [mm]” and “Y-position [mm]” or “Center X-position
[mm]” and “Center Y-position [mm]”, the arc's center.
For objects along a straight line, the rotation center varies depending on your “Horizontal
alignment” and “Vertical alignment” setting.
112 ME-NAVIS2-OP-1
