10 TrueType object
Related topics
Set the character spacing of a TrueType object along a straight line (page 113)
Set the character spacing of a TrueType object along an arc (page 115)
10.10 Specify the line spacing of a TrueType object
If a TrueType object consists of multiple text lines, you can specify the vertical distance
between them. Line spacing can be set for TrueType objects along a straight line and along
arcs.
1. To edit the parameters of the TrueType object, select the object in the object list or in the
marking image editor.
The parameters are displayed in the category below the object list.
2. Input a value for “Linefeed spacing [mm]”. The line spacing is the vertical distance
between lines of text.
For arcs with multiple lines of text, the arc radius of the second or subsequent text lines
is increased or decreased with the line spacing value.

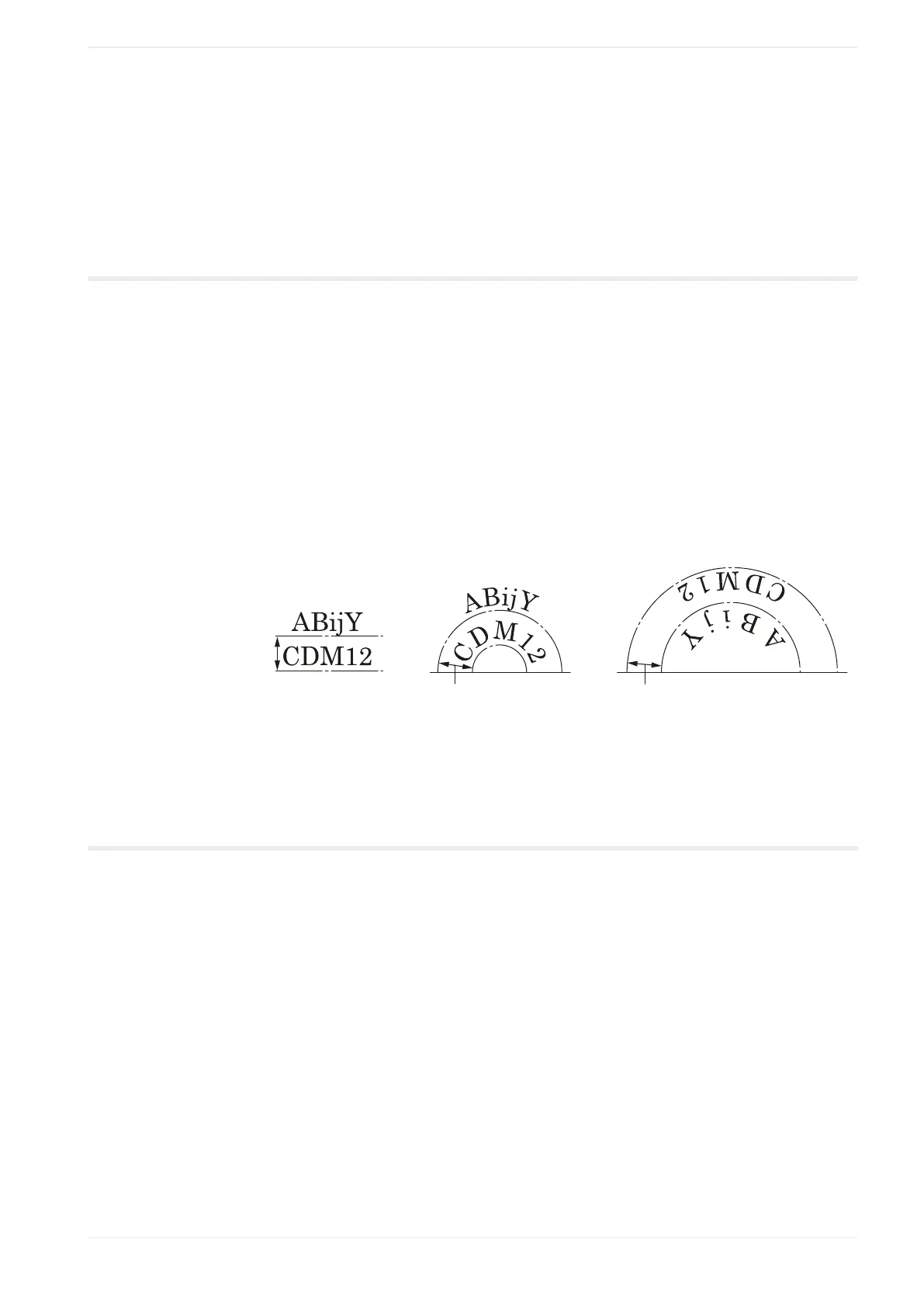

(1)
(2) (3)
(1)
Line spacing (“Straight line (horizontal)”)
(2)
Line spacing (“Arc outside”)
(3)
Line spacing (“Arc inside”)
10.11 Apply fill settings to a TrueType object
With the “Character fill” setting, you can create a filling for TrueType characters.
TrueType characters are created with an outline only. This is the default setting. An outline is
the exterior border around each character of your TrueType object.
• To edit the parameters of the TrueType object, select the object in the object list or in the
marking image editor.
The parameters are displayed in the category below the object list.
ME-NAVIS2-OP-1 117
