23 On-the-fly marking
23.2 On-the-fly marking settings for all files
The basic on-the-fly marking settings apply to all files in the laser marking system.
“Moving direction”
Specify the moving direction of the conveyor. Check the direction of the laser head. This
setting also defines the moving direction. You can change the laser head direction in the
“System settings” screen.
For “Moving direction”, select one of the following options:
• “+X to -X”
• “-X to +X”
• “+Y to -Y”
• “-Y to +Y”

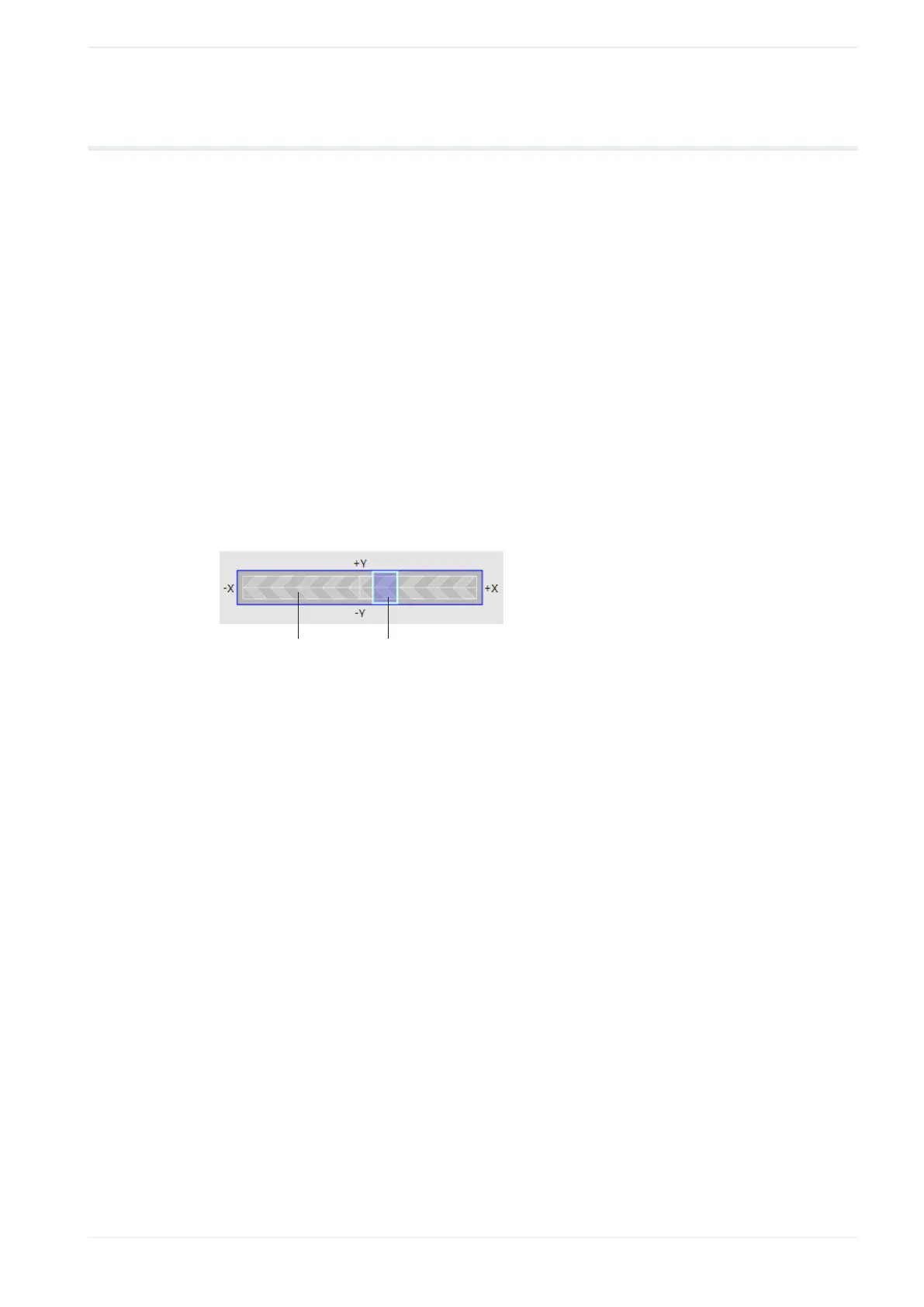

In the marking image editor, a marking field overview for on-the-fly marking is displayed:
(1) (2)
(1)
The arrow indicates the moving direction.
(2)
This area indicates which part of the marking field is displayed in the marking image editor.
The marking order is optimized depending on the moving direction.
“Trigger detecting position [mm]”
For “Trigger detecting position [mm]”, specify the distance between the center of the marking
field and the trigger detecting position.
