9 Character object
3. For “Vertical alignment”, select one of the following options to specify the vertical
position of character objects along a straight line. This setting is not available for
character objects along an arc.
(1)
(2)
(3)
(4)
(1)
“Top”
(2)
“1st baseline”
(3)
“Center”
(4)
“Bottom”
Related topics
Change the position of a character object (page 98)
9.8 Change the position of a character object
To position a character object, specify the coordinates of the reference point. Alternatively,
you can move the object in the marking image editor by dragging it to a new location.
To edit the parameters of the character object, select the object in the object list or in the
marking image editor.
The parameters are displayed in the category below the object list.

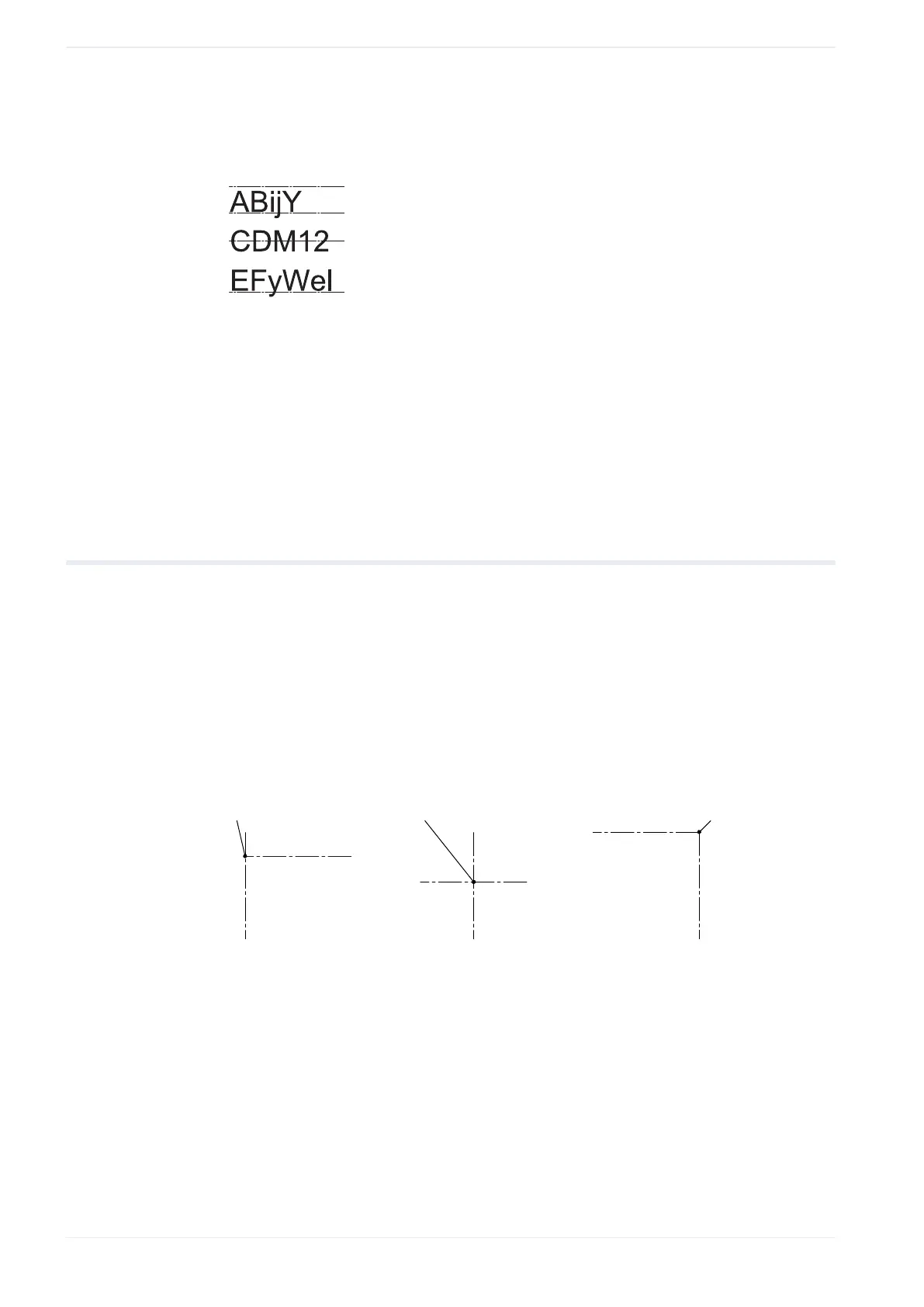

For character objects along a straight line, specify values for “X-position [mm]” and “Y-
position [mm]”. The position of an object also depends on the settings under “Horizontal
alignment” and “Vertical alignment”.
ABijY
CDM12
EFyWel
ABijY
CDM12
EFyWel
ABijY
CDM12
EFyWel
(X, Y) (X, Y) (X, Y)
(1) (2) (3)
(1)
“Horizontal alignment” > “Left”, “Vertical alignment” > “1st baseline”
(2)
“Horizontal alignment” > “Center”, “Vertical alignment” > “Center”
(3)
“Horizontal alignment” > “Right”, “Vertical alignment” > “Top”
98 ME-NAVIS2-OP-1
