5 Operation of the laser marking system
Icon indicates that RUN mode is on
The laser marking system changes to the marking ready state.
8. Input the marking trigger signal.
The signal input TRIGGER IN of the TERMINAL connector and the “Start marking”
button of Laser Marker NAVI smart can both be used to input the marking trigger signal.

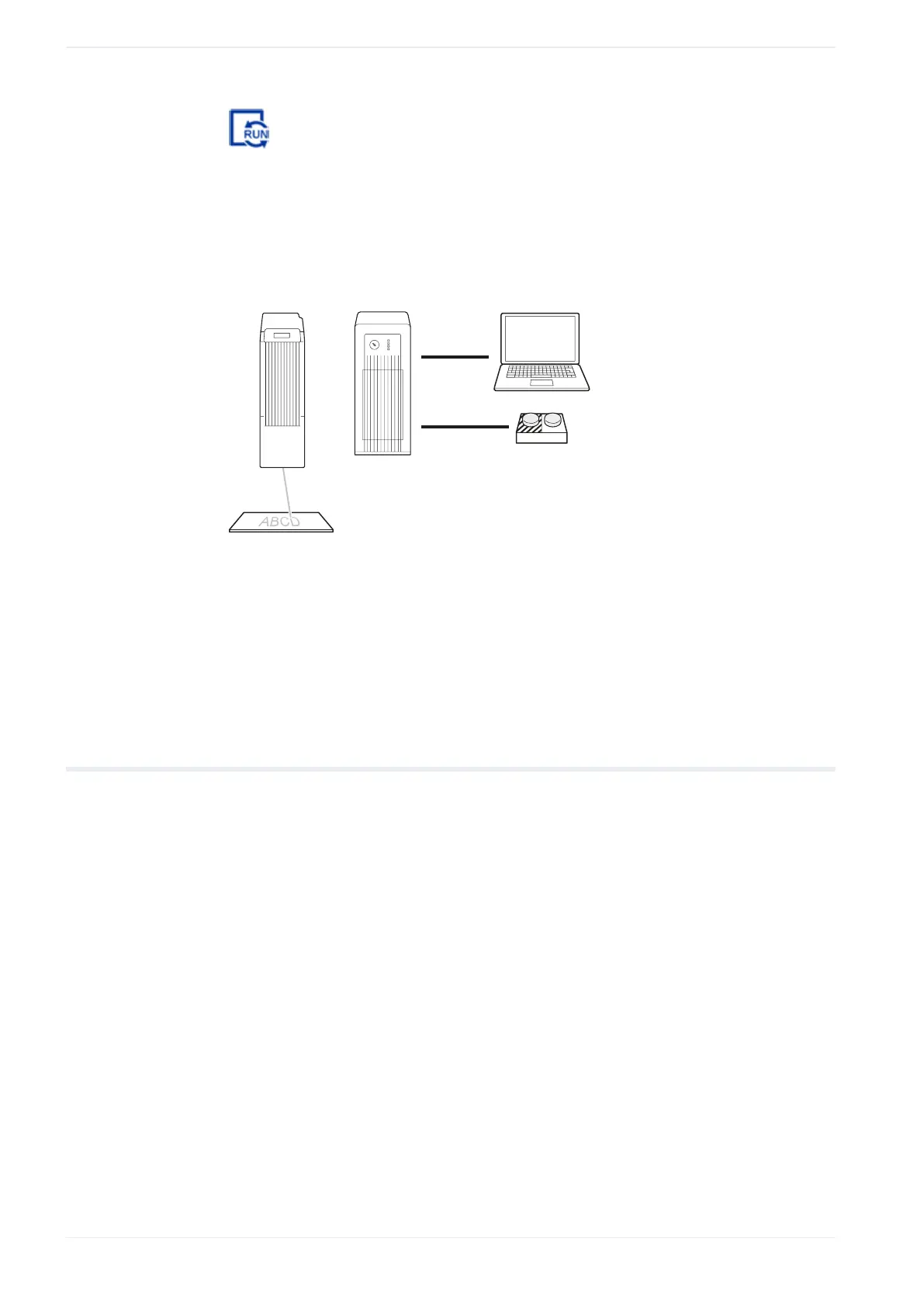

Controlling the laser marking system using a switch
Related topics
Turn laser pumping on or off (page 45)
Start laser radiation with the “Start marking” button (page 46)
5.7 Perform test marking
In test marking mode, start the marking by manually triggering the laser radiation in Laser
Marker NAVI smart. Perform the test marking process to test the marking settings during
installation or when editing the marking data.
• The counter value is not updated in test marking mode.
• If “Trigger mode” is set to “Continuous trigger”, the setting value of “Minimum number of
scans” is used for the test marking.
1. Establish an online connection between your PC and the laser marking system.
2. Go to the “Marking settings” screen.
3. To open a marking file, select “Open” > “From laser marking system” or “From PC”.
4. You can edit marking objects and specify the marking settings.
In the “Laser settings” tab, specify settings such as “Laser power” and “Scan speed
[mm/s]”.
5. Select “Save” > “To laser marking system” to save the file to the laser marking system.
6. Select the “Laser pumping” tool.
52 ME-NAVIS2-OP-1
