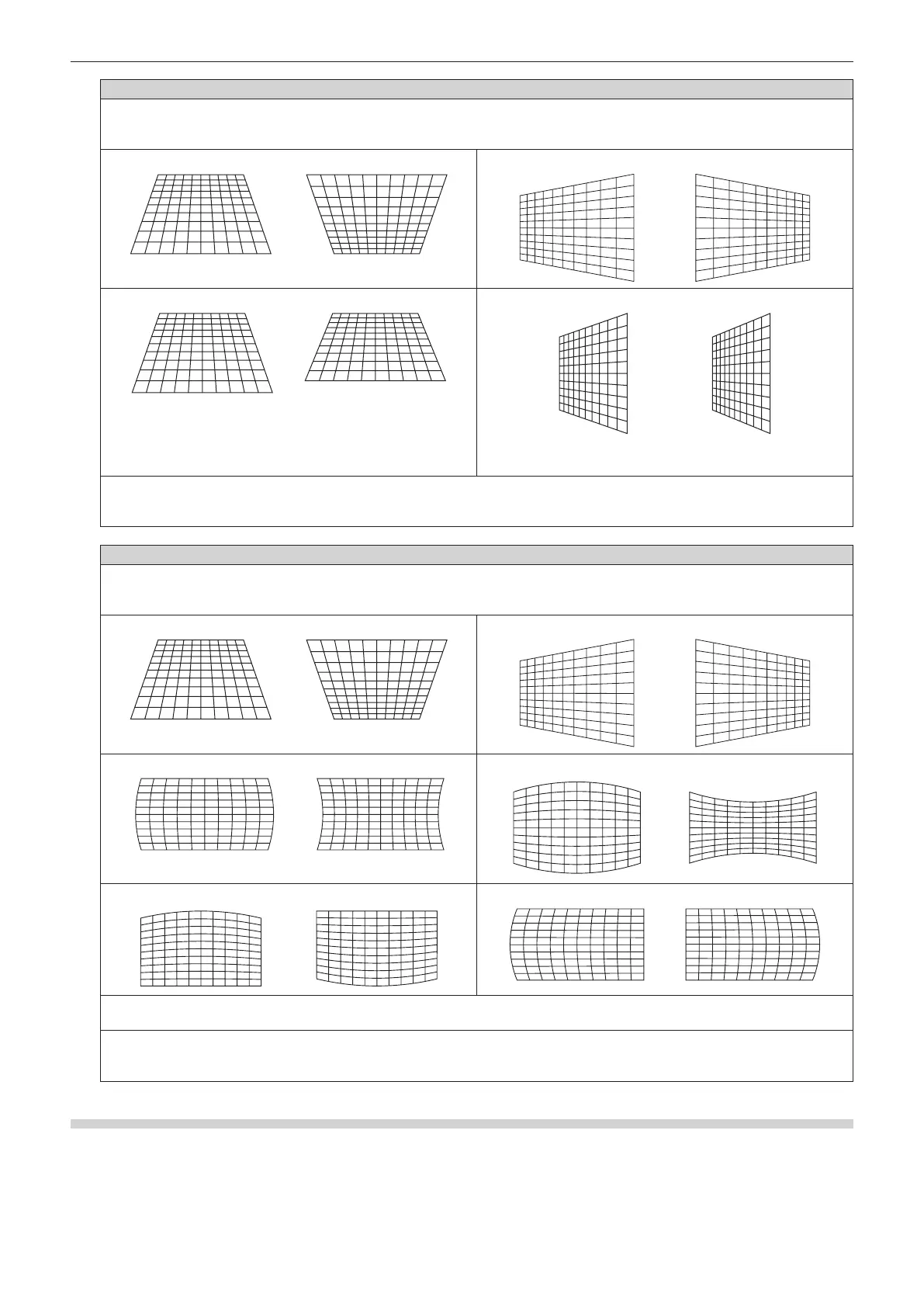

Chapter 4 Settings — [POSITION] menu
ENGLISH - 121
[KEYSTONE]
[LENS THROW RATIO]
Set the throw ratio.
Select the value close to the actual projection distance divided by projected image width here.
[VERTICAL KEYSTONE]
[HORIZONTAL KEYSTONE]
[VERTICAL BALANCE] [HORIZONTAL BALANCE]
Adjust the setting according to the lens shift range in the vertical
direction.
Adjust the setting according to the lens shift range in the horizontal
direction.
[FREE GRID]
Finer adjustment is possible by selecting the points or lines to be corrected.
For details of operation, refer to “Adjusting distortion with [FREE GRID]” (x page 122).
[CURVED CORRECTION]
[LENS THROW RATIO]
Set the throw ratio.
Select the value close to the actual projection distance divided by projected image width here.
[VERTICAL KEYSTONE]
[HORIZONTAL KEYSTONE]
[VERTICAL ARC] [HORIZONTAL ARC]
[VERTICAL BALANCE] [HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
[FREE GRID]
Finer adjustment is possible by selecting the points or lines to be corrected.
For details of operation, refer to “Adjusting distortion with [FREE GRID]” (x page 122).
Setting [CORNER/PINCUSHION]
1) Press as to select [GEOMETRY].
2) Press qw to select [CORNER/PINCUSHION].
