Projected image and throw distance
Install the projector referring to the projected image size, projection distance, etc.
When the Zoom Lens (Model No.: ET-D3LEW200), the Fixed-focus Lens (Model No.: ET-D3LEU100,
ET-D75LE95), or the Fisheye Lens (Model No.: ET-D3LEF70) is used, the projection relation between the screen
and the projector differs from that of other lenses.
For details, refer to “ET-D3LEU100, ET-D3LEW200” (x page 45), “ET-D75LE95” (x page 46), or
“ET-D3LEF70” (x page 47).
Attention
f Before setting up, read “Precautions for use” (x page 21).
f When the Fixed-focus Lens (Model No.: ET-D75LE95) is used, install the projector so that its back plane is parallel to the screen, making
the projected image rectangular.
The vertical keystone distortion in moderate range can be corrected with the [POSITION] menu → [GEOMETRY] → [KEYSTONE] →
[VERTICAL KEYSTONE] (x page 120) even after the projector is installed. For the range that can be corrected, refer to “[GEOMETRY]
projection range” (x page 49).
f Do not use the projector and the high-powered laser equipment in the same room. The DLP chips can be damaged if a laser beam hits the
projection lens surface.

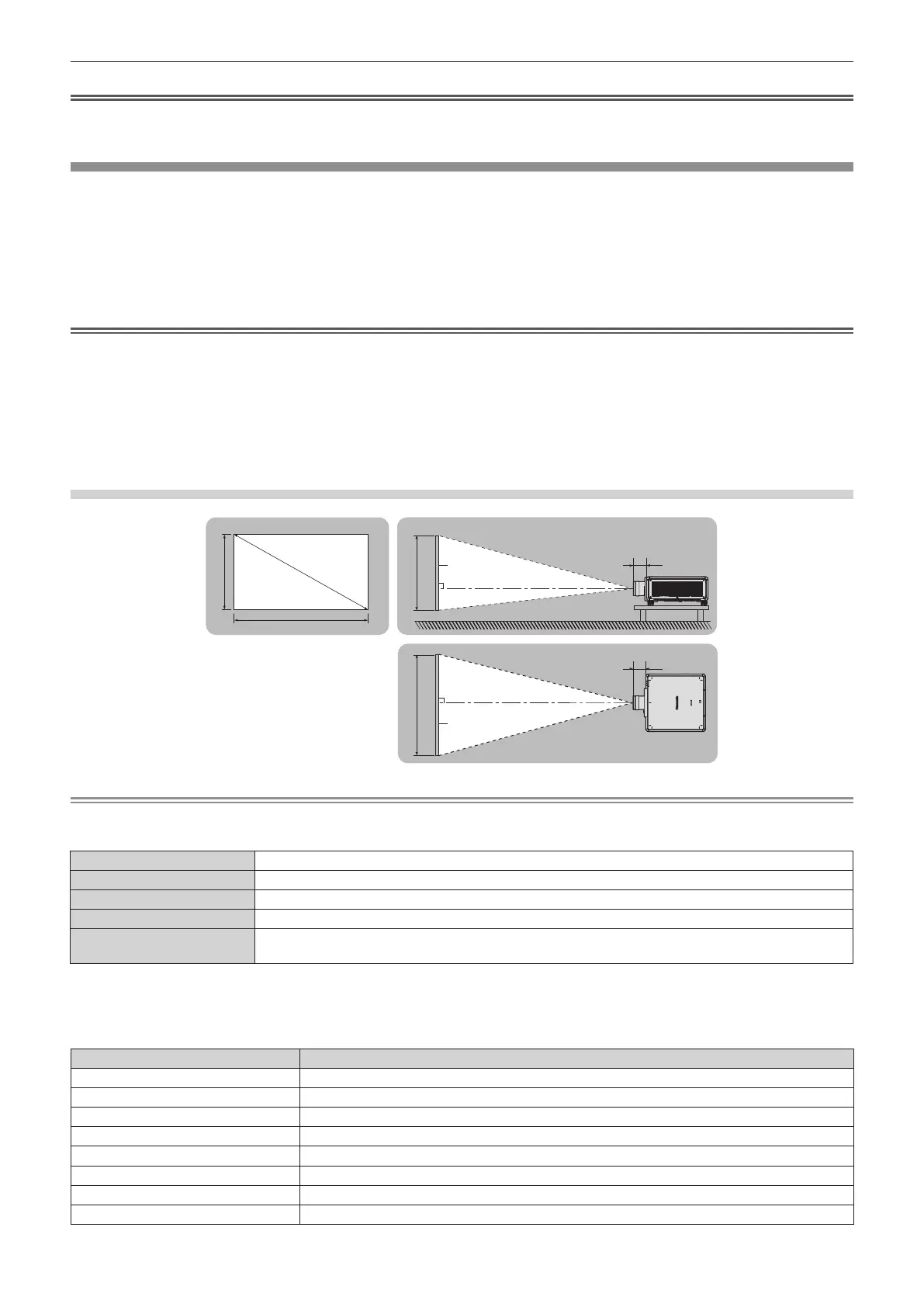

Figure of projected image and throw distance
SD
L (LW/LT)
L1
L1
L (LW/LT)
SW SH
SH
SW
Projected image
Screen
Screen
Note
f This illustration is prepared on the assumption that the projected image size and position have been aligned to t full in the screen.
f This illustration is not in accurate scale.
SH Projected image height
SW Projected image width
SD Projected image size
L
*1
(LW/LT)
*2
Projection distance (distance from the front end of the projection lens to the screen)
L1
Lens protrusion dimension (distance from the front surface of the projector to the front end of the projection
lens)
*1 For details about calculating the projection distance, refer to “Formula for calculating the projection distance per projection lens” (x page 56).
*2 LW: Minimum projection distance when the Zoom Lens is used
LT: Maximum projection distance when the Zoom Lens is used
(Unit: m)
Projection lens Model No. Lens protrusion dimension (L1) (approximate value)
ET-D3LEW10 0.211
ET-D75LE10 0.126
ET-D3LES20/ET-D75LE20 0.122
ET-D3LET30 0.179
ET-D75LE30 0.122
ET-D3LET40 0.135
ET-D75LE40 0.124
ET-D3LEW50/ET-D75LE50 0.204
