Panasonic PT-RQ25K Series

Chapter 2 Getting Started — Installing the Function Board
62 - ENGLISH
For Intel
®
SDM-S specication Function Board

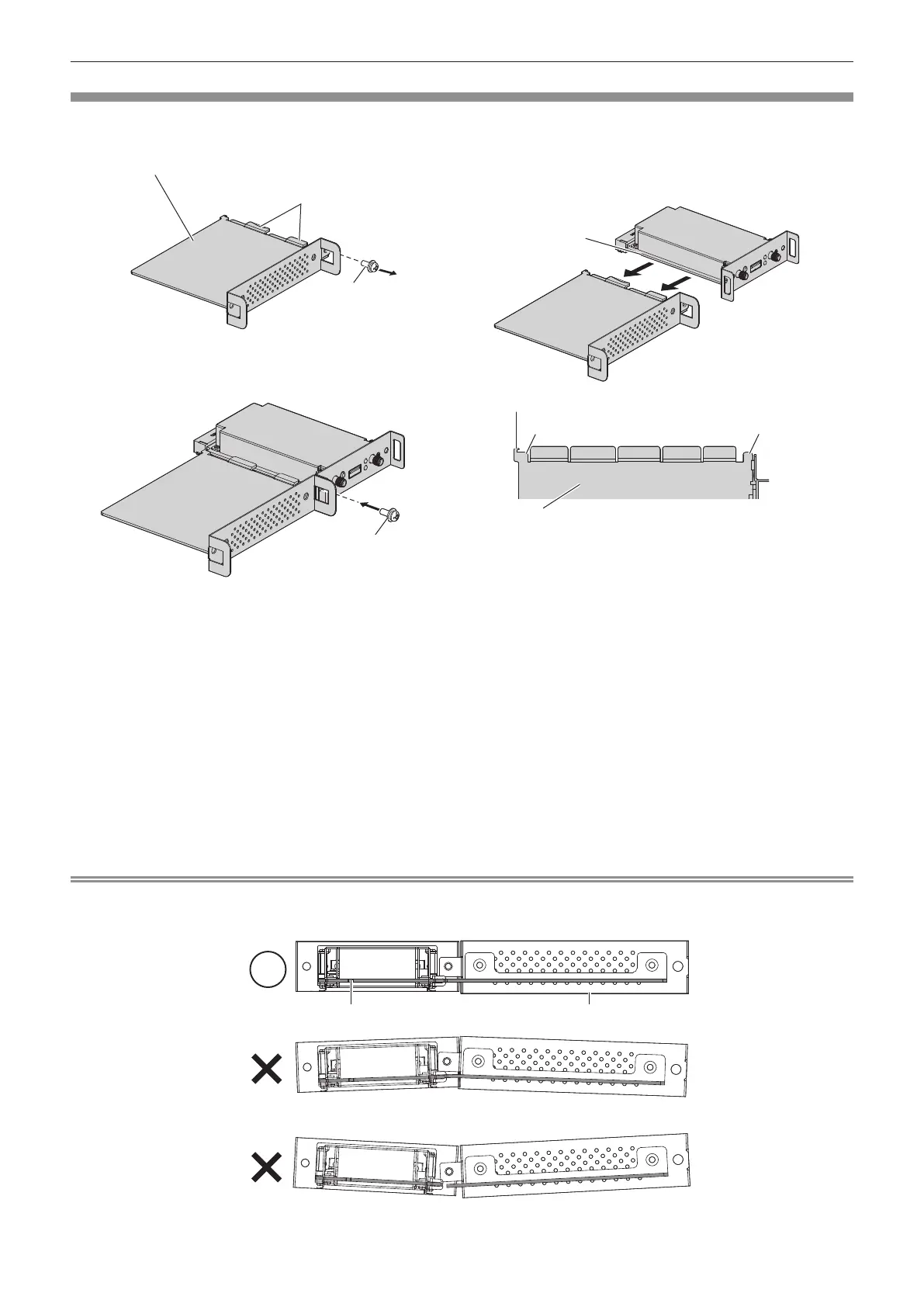

Attach the supplied SLOT adapter in advance when installing a narrow width Intel
®
SDM Small (Intel
®
SDM-S)
specication Function Board.
Fig. 3
Fig. 2
Screw
SLOT adapter
End faceEnd face
Hook
Fig. 1
Screw
Function Board
Guide
SLOT adapter
1) Remove one screw from the SLOT adapter. (Fig. 1)
f Remove the screw at the side with the guide of the bracket on the SLOT adapter by rotating
counterclockwise with a Phillips screwdriver.
2) Attach the Function Board to the SLOT adapter. (Fig. 2)
f Insert and rmly push in the Function Board circuit board into the guide on the SLOT adapter.
f Conrm that the Function Board circuit board is in contact with the tip of the hook and the end faces (two
locations) of the SLOT adapter.
3) Fix the Function Board. (Fig. 3)
f Securely tighten and x the Function Board with the screw removed in Step 1).
f Conrm that the Function Board circuit board is pressed against the hook of the SLOT adapter.
Note
f Function Board cannot be correctly installed in the slot unless the Function Board circuit board and the SLOT adapter circuit board are
parallel in the same plane.
×
×
Circuit board SLOT adapter
