Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 163
f When the input signal to each linked projector is not synchronized, the timing of the shutter operation between the projectors may shift up to
1 frame while using the shutter synchronization function.
f The shutter function of the projector with [MODE] set to [SUB] can be operated individually. The shutter operation at this time will follow the
setting of the [DISPLAY OPTION] menu → [SHUTTER SETTING] set in that projector.
[FREEZE]
Use the freeze function to pause the projected image temporarily regardless of the playback of the external
device.
1) Press as to select [FREEZE].
2) Press the <ENTER> button.
f Projected image is paused.
f Press the <MENU> button to release.
Note
f [FREEZE] is displayed on the screen when video is paused.
[WAVEFORM MONITOR]
Use the input signals from a connected external device to display in a waveform. Check whether video output
(luminance) signal level is within the recommended range for the projector and adjust.
1) Press as to select [WAVEFORM MONITOR].
2) Press qw to switch the item.
[OFF] Does not display the waveform monitor.
[ON] Displays the waveform monitor.
3) Press the <MENU> button two times to clear.
4) Press as to select any horizontal line.
5) Press the <ENTER> button to switch the Select line to either luminance, red, green, or blue.
f Line selection items switch each time the <ENTER> button is pressed only when the waveform monitor is
displayed.
“Select line (luminance)” Displayed in white waveform.
“Select line (red)” Displayed in red waveform.
“Select line (green)” Displayed in green waveform.
“Select line (blue)” Displayed in blue waveform.
Note
f Setting is also available from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON].
f The waveform monitor is not displayed when on-screen display is hidden (off).

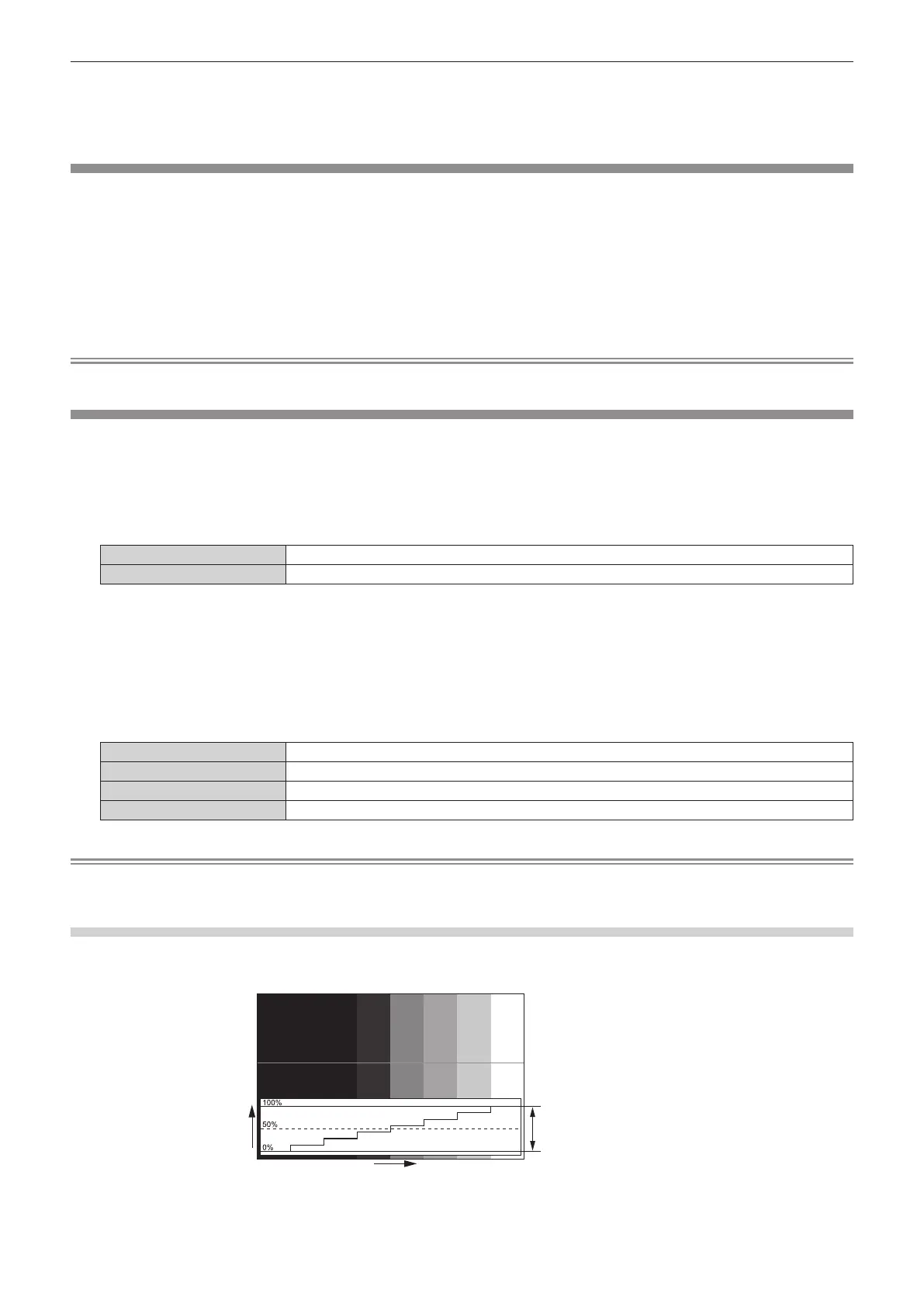

Adjusting the waveform
Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and
adjust.
Signal level
Image displayable area
Image position
1) Select “Select line (luminance)” on the waveform monitor.
