de-painted adequately, or b) wrong fastener type was programmed on the
hand terminal, or c) the electrode is loose.
•
Flashing Red (at any time) – An error has been identified, system is disabled.
System error will be displayed on the Touch-Screen Display. Typically, the
flashing red indicates a low water level, and a Top-Off needs to be performed.
The system is disabled until the water level is restored.
Note: Solid lights are informational - The unit is still operational. Flashing Lights
require user intervention - Unit is disabled until the condition is resolved.
1.4.1
E-Drill Hand Tool Configurations:
E-Drill Hand Tools are currently provided in two different configurations to
cover a wide spectrum of fastener sizes commonly encountered. Each Hand
Tool has specific fastener size capabilities and features. This User Guide
covers the use of all standard types of E-Drill hand tools.

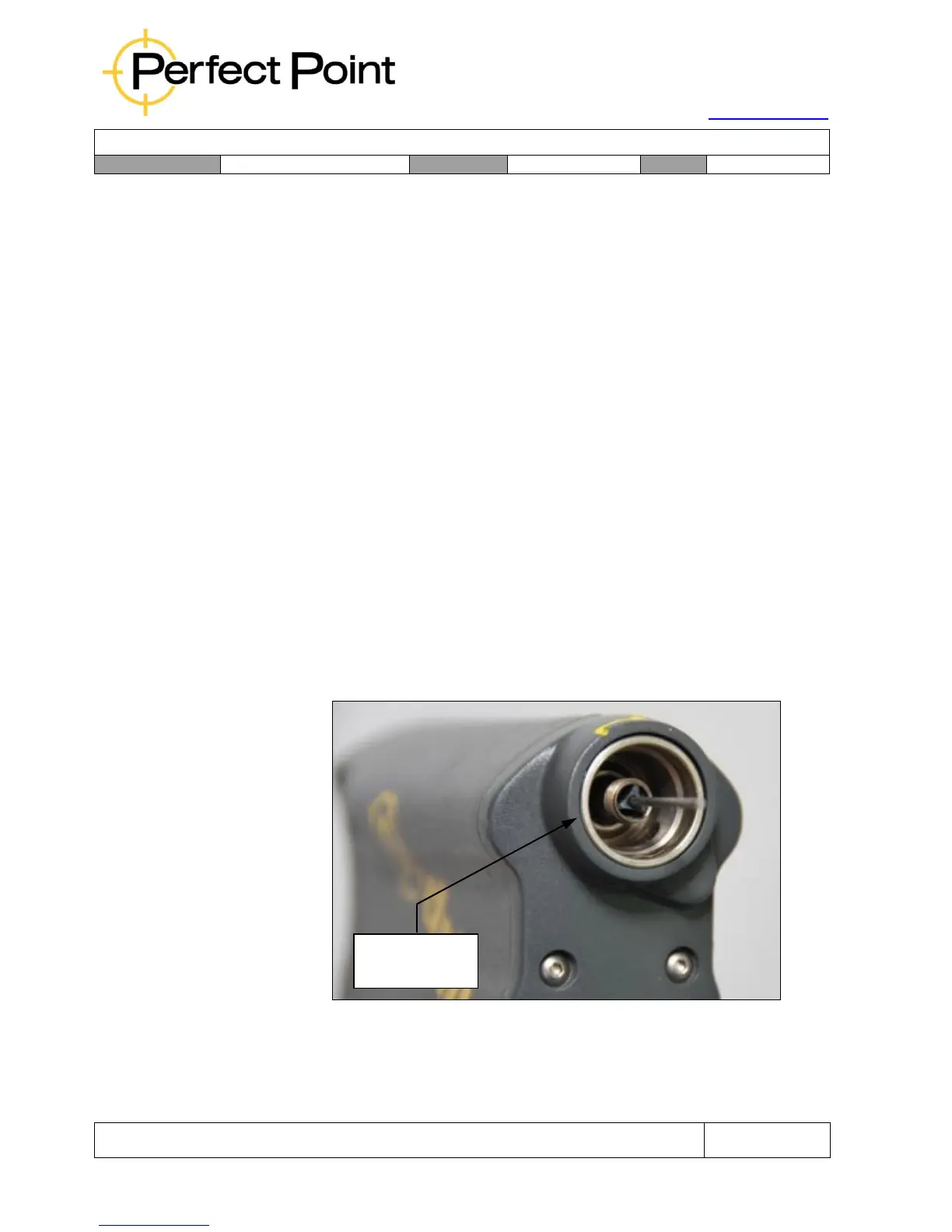

Each hand tool configuration uses a specific set of adapters that are
described and identified throughout the sections of this user guide. The
adapters are used for a specific set of electrode sizes with that particular hand
tool configuration. Adapters for some older hand tools use a different
mounting method (Bayonet vs. Tri-Wing) so Adapters for a newer system may
not fit the older system.
