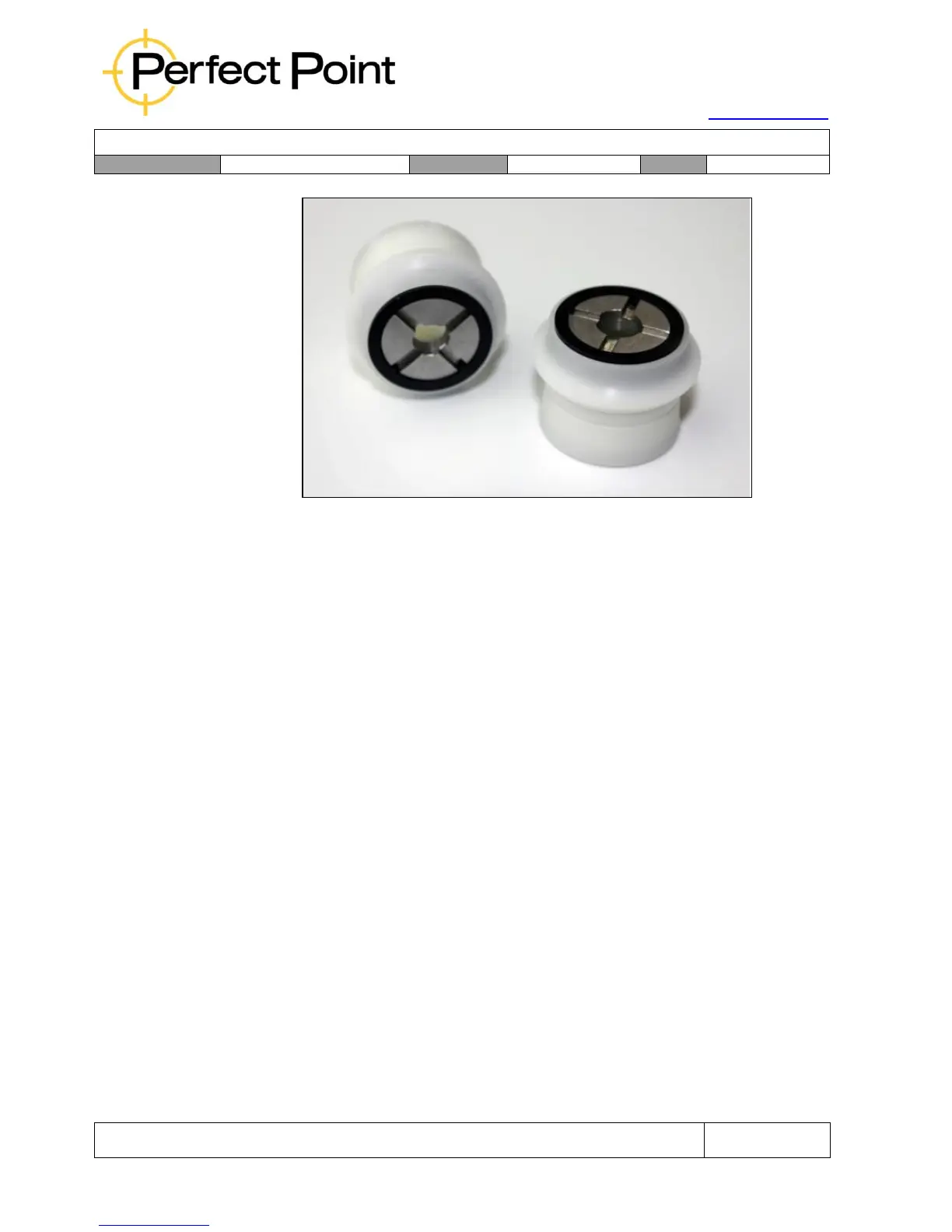

The metal inserts are removable and each is intended to be pre-drilled to suit
a specific fastener head diameter. The inserts may be supplied pre-drilled to
a specific size upon request, or the customer may purchase piloted blanks
either individually or pre-assembled, which they can drill themselves per their
requirements. The blank order numbers for smaller fasteners are EDB0033-
000 (complete BHL assembly) and EDB0013-000 (Insert only), and for large
fasteners are EDB0034-000 and EDB0014-000. Hexagonal inserts are also
available for specific hex-head blind fasteners, and removal of seized nuts
and bolts.
The outside diameter of BHL assemblies is optimized to fit between fastener
heads spaced per industry standard (typically greater than 4 to1, spacing to
diameter), while maximizing the footprint to enhance perpendicularity.
5.4.2
Slimline Button Head Locators:
For fasteners which are located in tight areas (such as close to ribs or
stringers) or are more tightly spaced than conventionally (engine
applications), a family of “Slimline” BHL’s is available (see below). Please
contact your distributor or the PPEDM hotline (714.891.6533) for more
information.
