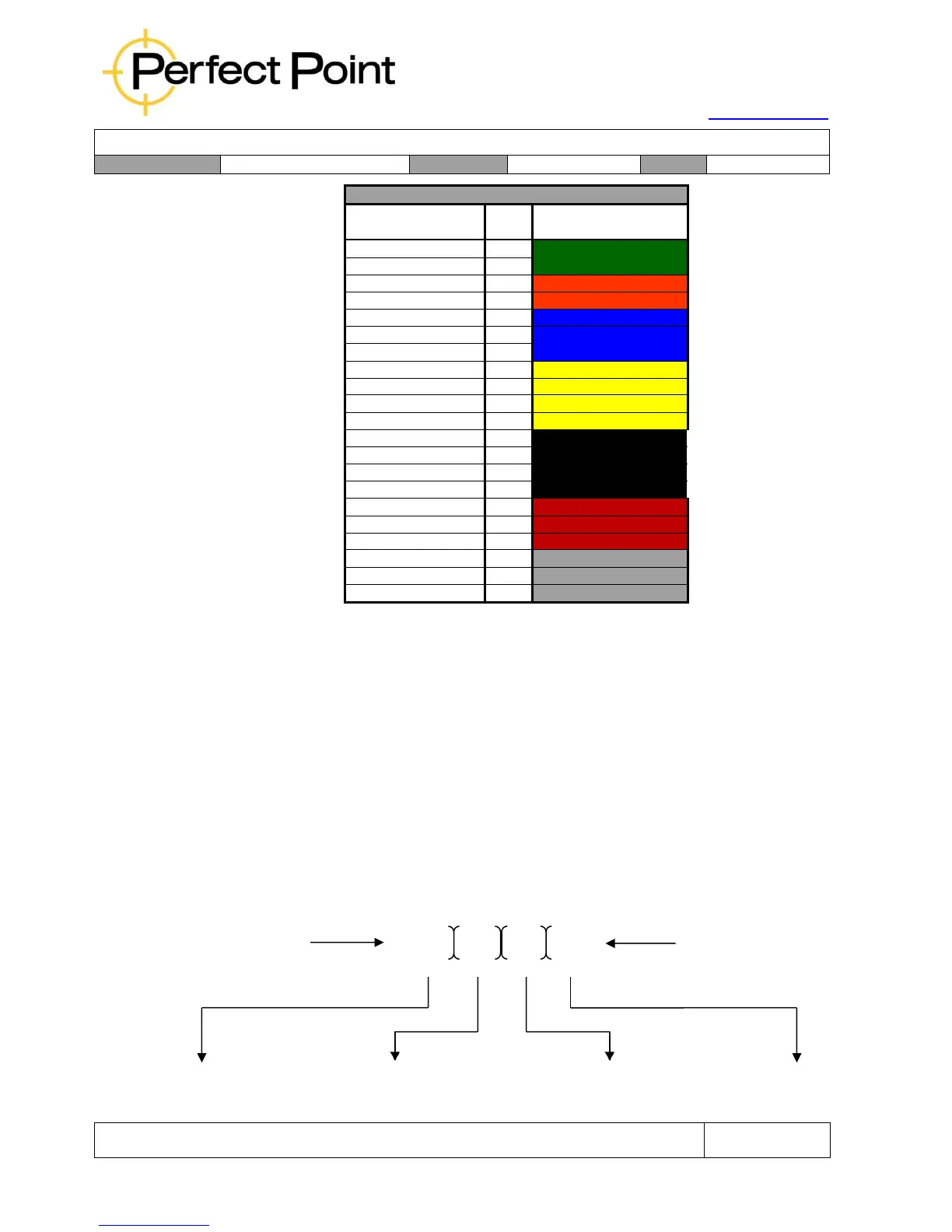

ELECTRODE PACKAGE IDENTIFICATION
Electrode Size
Dash
Size
Packaging color
3/32 Nominal
-3
GREEN Cutout Label
3/32 Plus
-3+
GREEN Cutout Label
1/8 Nominal
-4
ORANGE Cutout Label
1/8 Plus
-4+
ORANGE Cutout Label
5/32 Nominal
-5
BLUE Cutout Label
5/32 Plus
-5+
BLUE Cutout Label
5/32 1st Oversize (X)
-5X
BLUE Cutout Label
3/16 Nominal
-6
YELLOW Cutout Label
3/16 Plus
-6+
YELLOW Cutout Label
3/16 1st Oversize (X)
-6X
YELLOW Cutout Label
3/16 2nd Oversize (Y)
-6Y
YELLOW Cutout Label
1/4 Nominal
-8
BLACK Cutout Label
1/4 Plus
-8+
BLACK Cutout Label
1/4 1st Oversize (X)
-8X
BLACK Cutout Label
1/4 2nd Oversize (Y)
-8Y
BLACK Cutout Label
5/16 Nominal
-10
RED Cutout Label
5/16 1st Oversize (X)
-10X
RED Cutout Label
5/16 2nd Oversize (Y)
-10Y
RED Cutout Label
3/8 Nominal
-12
GRAY Cutout Label
3/8 1st Oversize (X)
-12X
GRAY Cutout Label
3/8 2nd Oversize (Y)
-12Y
GRAY Cutout Label
5.1.2 Electrode Material Usage:
EDK01 Series Brass Alloy Electrodes are used for Titanium fasteners above
3/16” only. BRASS ELECTRODES MUST NOT BE USED ON STEEL
FASTENERS..
EDK02 Series Copper Alloy Electrodes are used for all other fastener
materials and sizes. Refer to the home screen having selected a fastener to
double-check the electrode recommendation.
5.1.3 Electrode Part Number Legend:
Electrodes are sold in packages of 5 each. The kit part numbers aid in the
identification of electrode size, composition, and dimensions. This legend
below depicts the composition of a cutting Electrode part number.
Nomenclature EDK 02 06 - 0 Oversize
Designator
(E-Drill Electrode)
size)
E-D rill Electrode Electrode Material Fastener Diameter Oversize Designator
(Dash “0” is exact
