1.4.2 Center Ground (CG) E-Drill Hand Tool, Part No. CP1-CED-010:
This hand tool configuration is capable of removing fasteners from 5/32”
Nominal Stem Size (-5) through 3/8”, including oversize’s. For fasteners
smaller than these sizes the External Ground (EG) E-Drill Hand Tool should
be used.

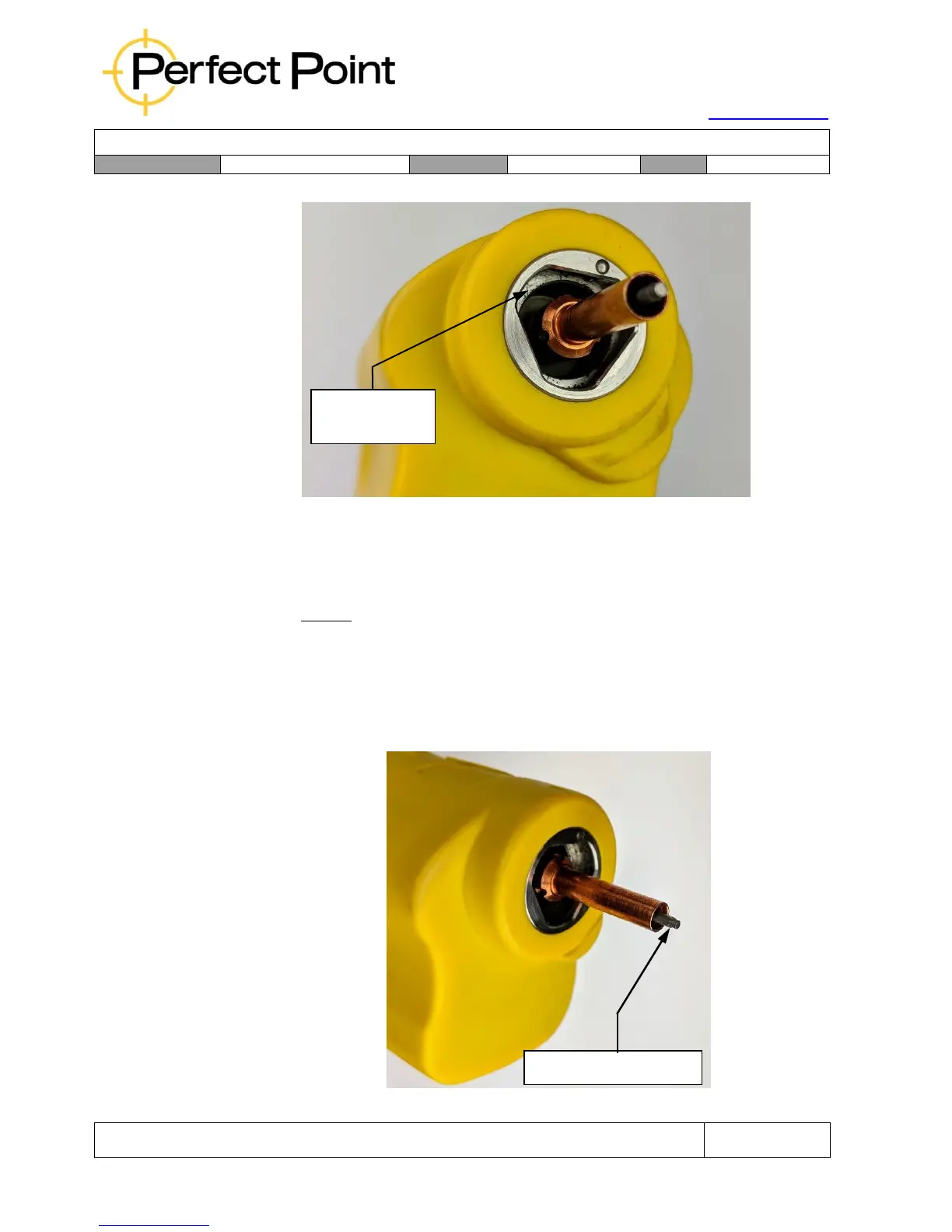

This CG hand tool is Center Grounded by means of a Ground Pin that
protrudes through the center of the cutting electrode. Hand tool visual
identification can be quickly made by inspecting the nose of the hand tool. If
the Ground Pin is visible protruding from the center of the electrode, then this
is a CG or Center Ground Hand Tool.
Tri-Wing Nose
Hand Tool
Protruding Ground Pin
