5.

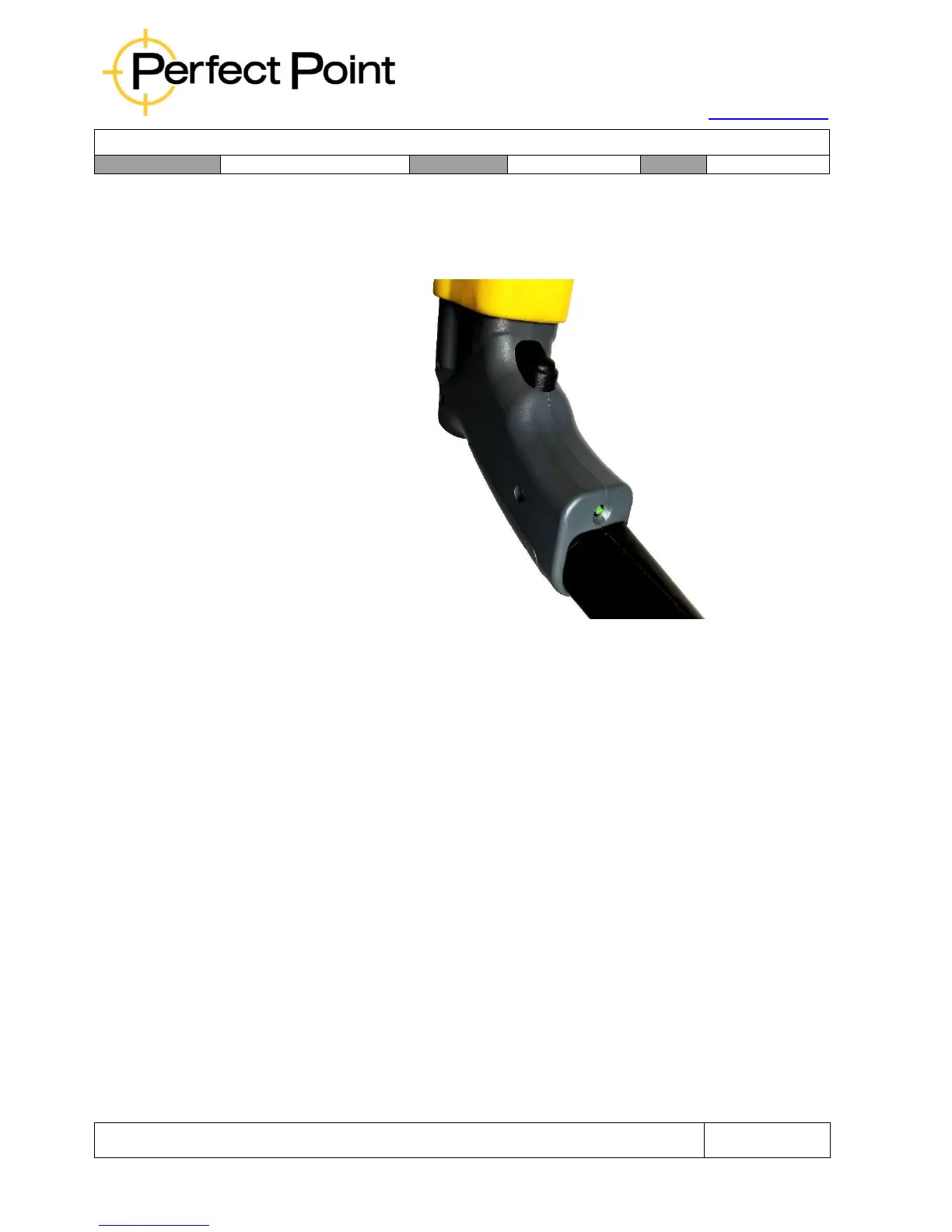

Retract the cutting electrode by pressing and holding down the green retract
button in the base of the grip until the green light illuminates indicating the
electrode is fully retracted.
Note: If the replacement electrode is already part-worn then it only needs to be
retracted just inside the E-Drill Adapter. Then during the first cut it will reach its
correct cutting position faster.
Note: Electrode Torque-Ring Wrench torque is factory set and identified as
calibrated with locking compound. Do not attempt adjustment of the Torque-Ring
Wrench setting screws.
2.9 Installing the Umbilical Extension:
The standard hand-tool is provided with a 10’ umbilical connecting it to the Mobile
Service Unit (MSU). This configuration is intended for use when the MSU can be
located in close proximity to the workplace, such as in a shop environment, and
eliminates excess cable. For situations where the MSU cannot be located close to the
workplace, such as removal of fasteners on top of wing sections or fuselage, or inside
air-intakes, long cabled hand tools are available with 30’ umbilicals. A 20’ umbilical
extension is also available, increasing the total length from MSU to the standard hand-
toolhand-tool to 30’
