1.4.3 External Ground (EG) E-Drill Hand Tool, Part No. CP1-CED-020:
This hand tool configuration is capable of removing fasteners from 3/32”
Nominal Stem Size (-3) through 1/4”, including oversize’s. For fasteners
larger than these sizes the Center Ground (CG) E-Drill Hand Tool should be
used.

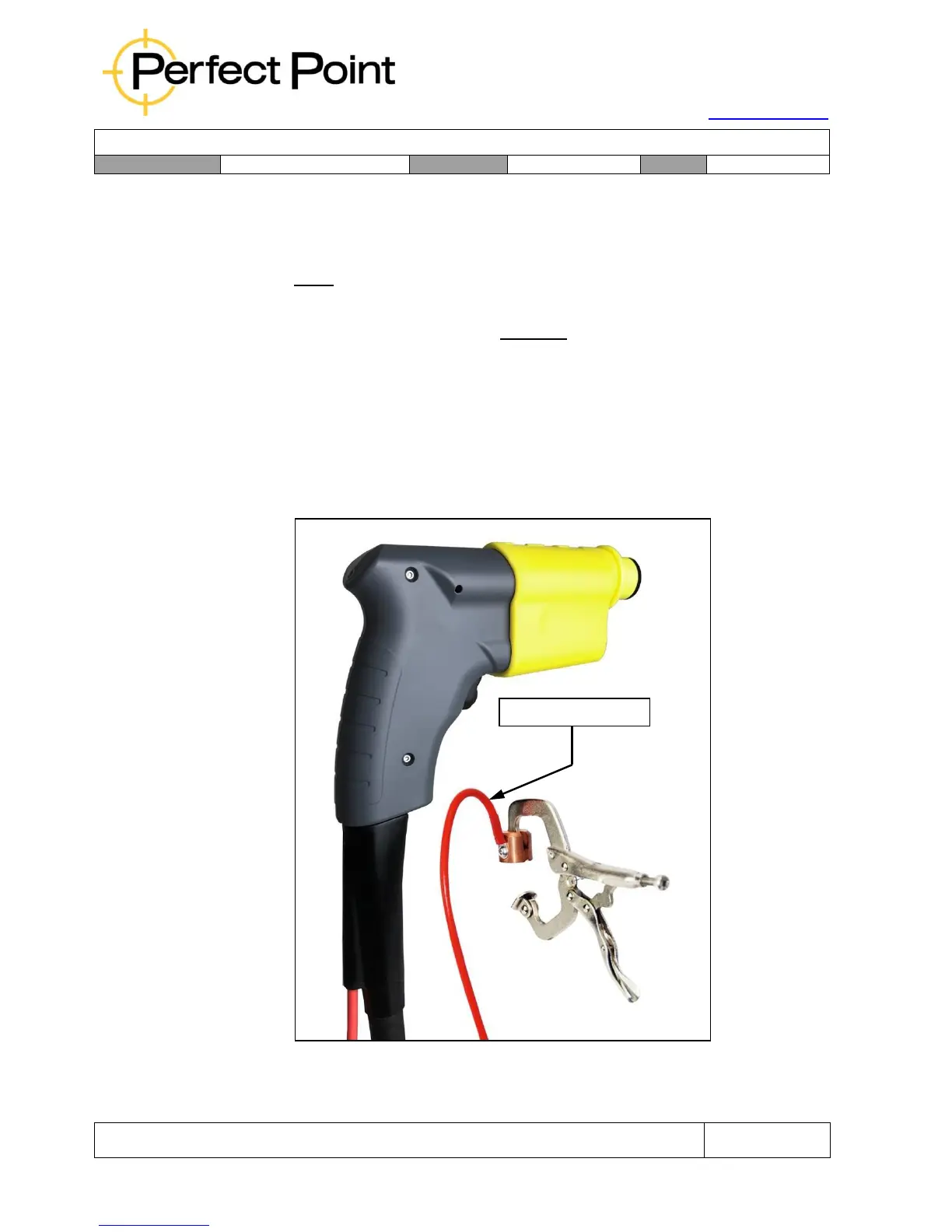

The EG E-Drill Hand Tool is externally grounded by means of an External
Ground lead and clamp. The Hand Tool Ground Lead and Grounding Clamp
Assembly have a “break away” safety connector feature for operator safety
and to prevent accidental cable breakage.
Hand tool visual identification can be made by inspecting the nose of the hand
tool and its cable strain relief. The hand tool lacks a Ground Pin leaving the
smaller electrode open for greater fluid flow. The hand tool cable strain relief
has a Red Ground Cable Lead and Connector allowing for connection of the
Ground Clamp Assembly Part No. EDT0301.
External Ground
