Electrode guides are also available in kits; EDG1000 is the complete electrode guide
kit for the CG Hand Tool, and EDG1010 is for the EG Hand Tool. Contact the Perfect
Point Support Hotline for details.
5.3 Flush Head Locating Systems:
E-drill recommends a precision Vacuum Flush Head Locator (VFHL) tool, for
precision removal of flush fasteners in structure to be re-used. The VFHL is also
especially developed for composite structure, where its use protects not only the
fastener hole, but also the surrounding gel-coat skin.

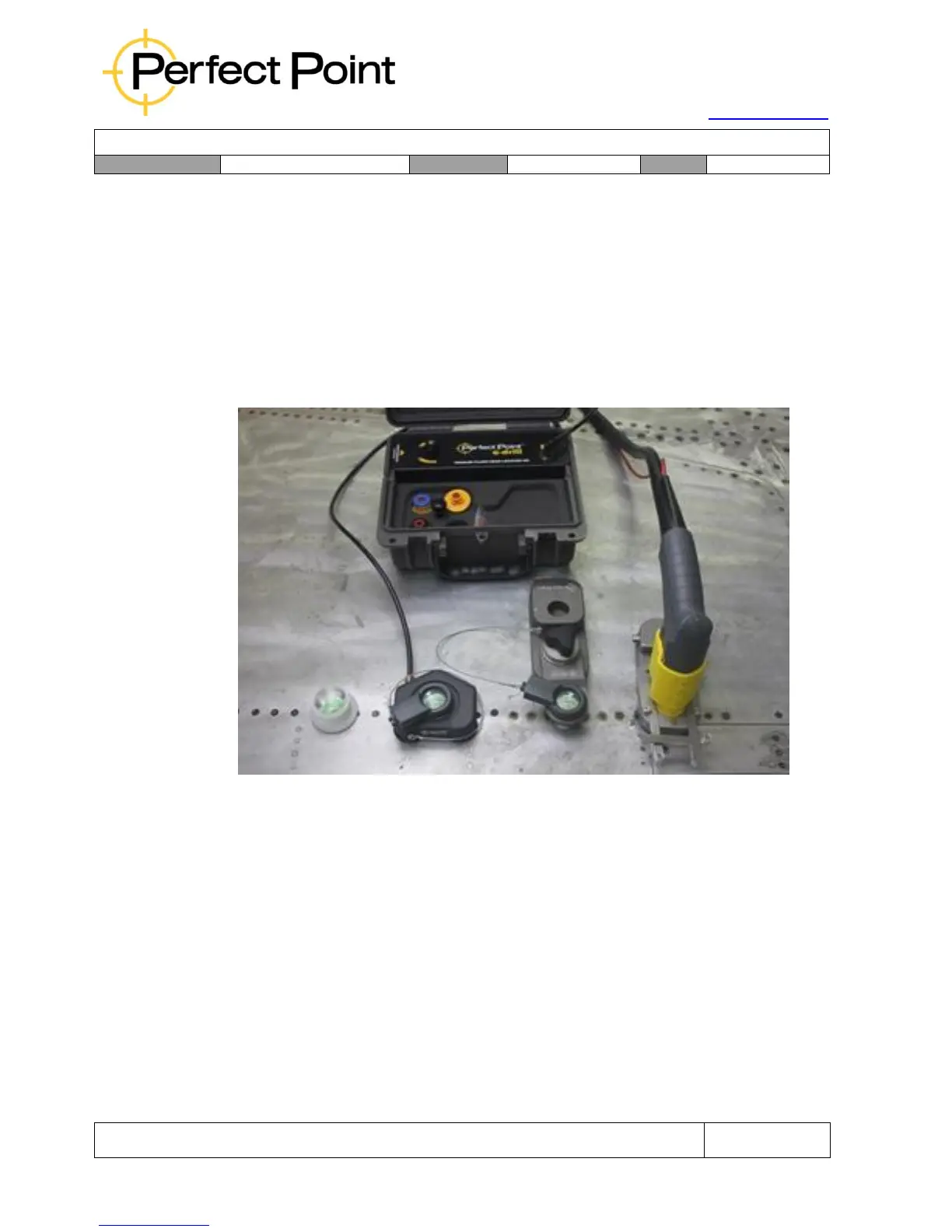

The standard kit (p/n EDF1321) comprises an air-driven vacuum pump, vacuum
locator and LED bomb sight. There is also a range of special vacuum locators
available for tight areas, wing edges and curved locations.
Usage of the Vacuum Locator family is covered by a separate document. Please
contact PPedm Customer Service Hotline (714.891.6533) or info@ppedm for further
details.
