1.4 E-Drill Hand Tool General Features and Controls:
E-Drill Hand Tool
Interchangeable Adapters:
The E-Drill includes a kit of Interchangeable Adapters suitable for different fastener
types and removal processes. Depending on which size E-Drill Hand Tool has been
purchased, the Adapter kit may be one of two types (systems provided with both size
of Hand Tool automatically includes both Adapter kits):
• EG Adapter Kit – comprises button head and flush head Adapters and
locators for 1/8” and 5/32” diameter fasteners.
• CG Adapter Kit – comprises button head and flush head Adapters and
locators for 3/16” and 1/4” diameter fasteners.
Adapters and locators are intentionally manufactured in plastic using brighter colors,
so they may be easier to find if dropped or mislaid. This is helpful in all shop
environments, but especially in FOD-controlled situations. The plastic also reduces
the chance of marring the airframe surface.

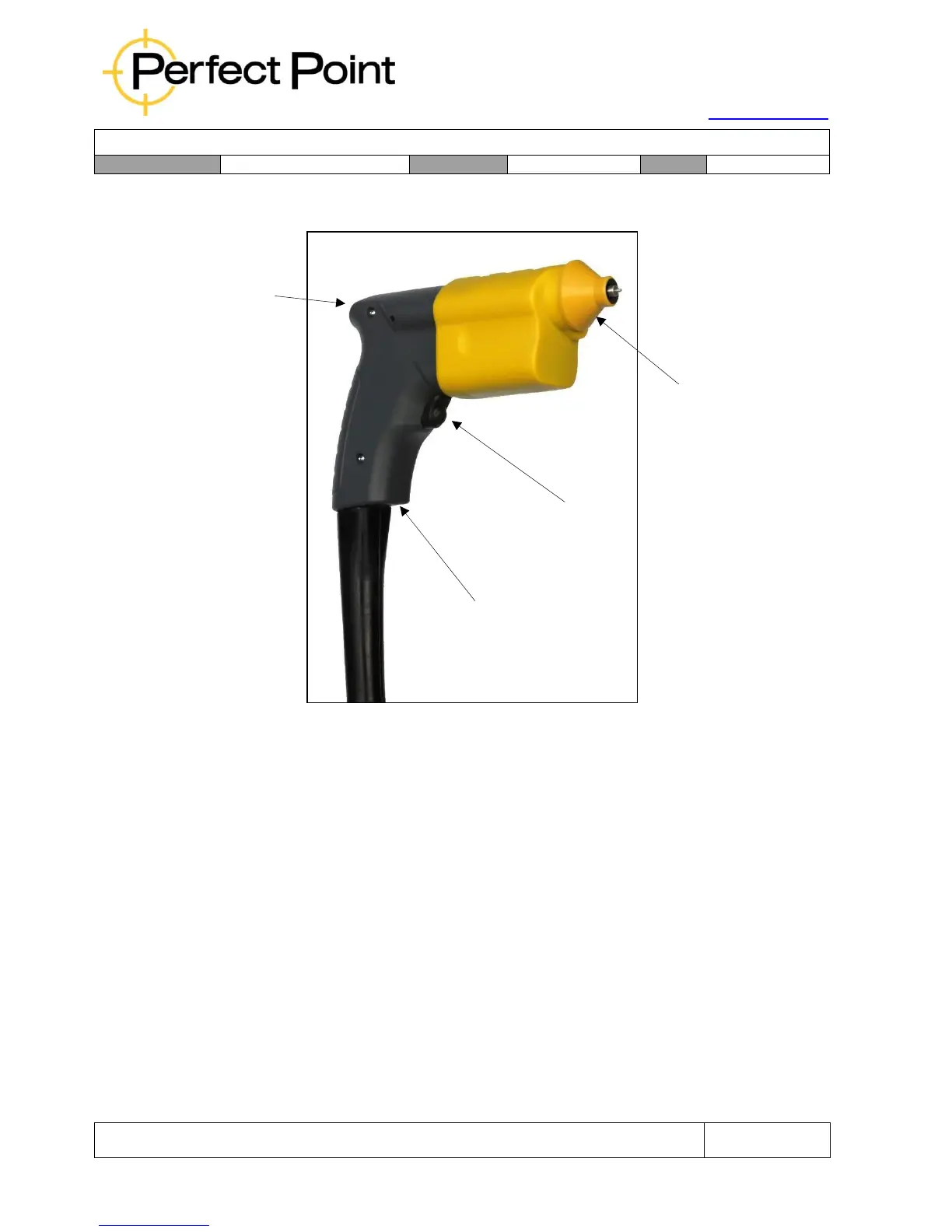

Status Light
Interchangeable
Adapter
Trigger
Retract
Button
