This document is the property of PPedm Corp. and contains proprietary and/or patented information and may not be reproduced in
part or in whole without the express written permission of the company. Perfect Point logo, Perfect Point
TM
and E-Drill
®
are
trademarks of PPedm, Corp. US and worldwide patents pending.

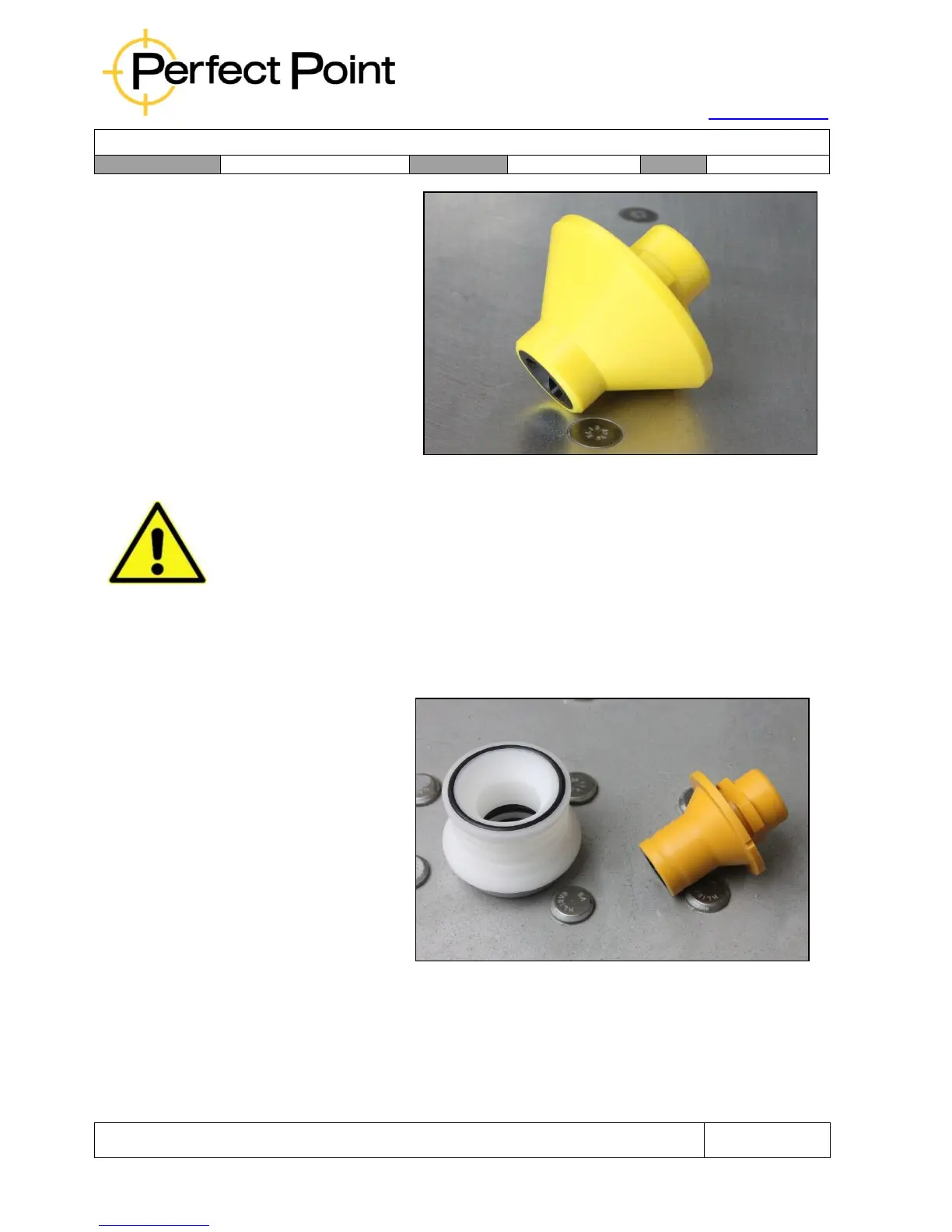

The FHL Adapter and
Guide Assembly is
installed on the end of
the E-Drill for the
selected fastener
removal application. FHL
Adapters are supplied in
both Bayonet and Tri
Wing E-Drill attachment
configurations for EG
and CG E-Drill use.
Please contact PPedm
Customer Service Hotline714.891.6533 for replacement part numbers and pricing.
Note: Adapters should be regularly inspected for damage or wear. Heavily used
Guides should be replaced every 5000 cuts (see Hand held terminal for cut counts).
Failure to replace worn guides may increase the potential for airframe damage.
5.4
Button Head Locating System:
The BHL system is comprised of 3 basic components, the Button Head Locator, the
E-Drill Adapter Assembly, including the required Electrode Guide.
•
The BHL Locator is
placed over the
Button Head
fastener on the
work surface.
•
The Button Head
Adapter is affixed
to the nose of the
E-Drill hand tool.
5.4.1
Fixed Diameter Button Head Locator (BHL) assembly:
The Button Head Locator comprises a white plastic housing, metal insert, and
three O-rings for sealing. The BHL assembly is available in two different sizes;
EDB0033 for fastener heads up to 0.5” (12.7 mm), and EDB0034 for fastener
heads larger than that.
