Though it is not necessary for operation of the E-Drill system, it is strongly
recommended when using any electric device on the airframe to ensure the airframe
is grounded.
CAUTION
Before cutting you must ensure that the hand-tool is correctly configured – failure
to use the correct ADAPTER AND ELECTRODE could result in damage to the
airframe.
2.3

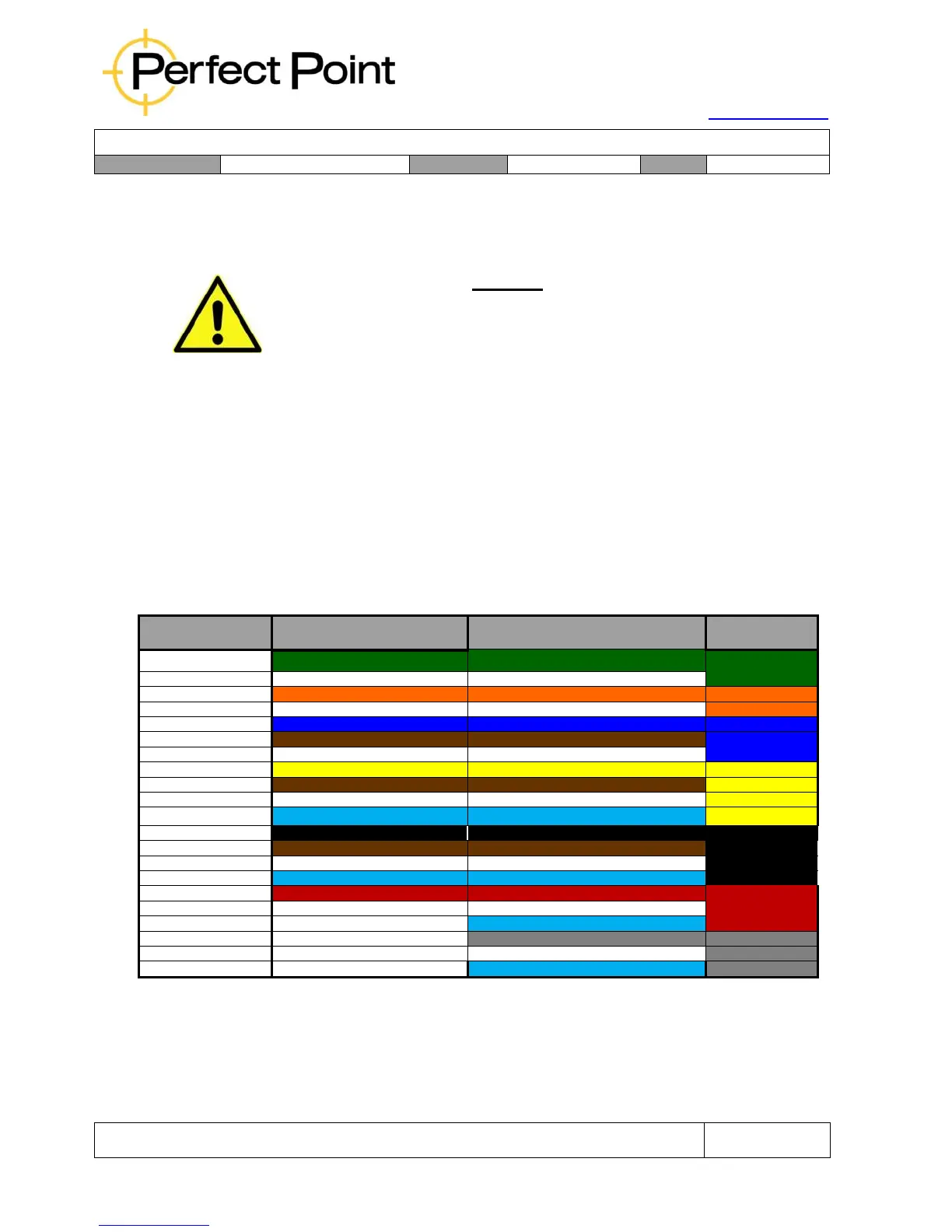

Cutting Electrode Sizes and Electrode Guide Color Matching:
There are 14 different standard Cutting Electrode O.D sizes available to cover 14
different diameter fasteners from 5/32” to 3/8”. Electrodes are designed to remove
nominal, X (1
st
Oversize) and Y (2
nd
Oversize) fasteners.
Cutting Electrodes are packaged with color coded inserts and provided in kits of 5
each to match their sizes. The E-Drill Electrode Guides to be used in the E-Drill
Adapters are color-coded to match. For convenience, each electrode is engraved with
its Electrode Part Number. The chart and color legend below illustrates the size color
coding.
BHL/ FHL Adapter
Electrode Guide
VFHL/ OVL Adapter Electrode Guide
TURQUOISE Electrode Guide
TURQUOISE Electrode Guide
TURQUOISE Electrode Guide
TURQUOISE Electrode Guide
No Guide Required at this size
TURQUIOSE Electrode Guide
No Guide Required at this size
No Guide Required at this size
No Guide Required at this size
TURQUIOSE Electrode Guide
Note: Guides should be regularly inspected for damage or wear. Guides with heavy usage should
be replaced every 5000 cuts or when the electrode appears loose in the guide (see Display for Cut
Count).
