PG DRIVES TECHNOLOGY I-DRIVE TECHNICAL MANUAL – INSTALLATION
Make sure that the connectors you use are reliable under all operating conditions and correctly wired with no short circuits. Do
not use unsuitable components - it may result in poor machine reliability. Refer to the following illustrations for basic connection
details.
The machine manufacturer is responsible for establishing the suitability of the particular wiring
arrangements used on the machine, for both normal use and stalled conditions. PGDT can make
general recommendations for wiring the i-Drive controller, but PGDT accepts no responsibility for,
and accepts no liability for losses of any kind arising from, the actual wiring arrangement used.
The machine manufacturer is responsible for ensuring that only the mating connectors specified
by PGDT on the controller’s specific data sheet or in this manual are used to connect to the
controller. PGDT accepts no liability for losses of any kind arising from failure to comply with
this condition.
The machine manufacturer is responsible for ensuring that suitable connectors are used and
securely mated throughout the machine wiring system and that the workmanship associated with
the wiring system is of a good enough quality. Failure to meet this condition could result in
intermittent operation, sudden stopping or veering, or even create a burn or fire hazard. PGDT
accepts no liability for losses of any kind arising from failure to comply with this condition.

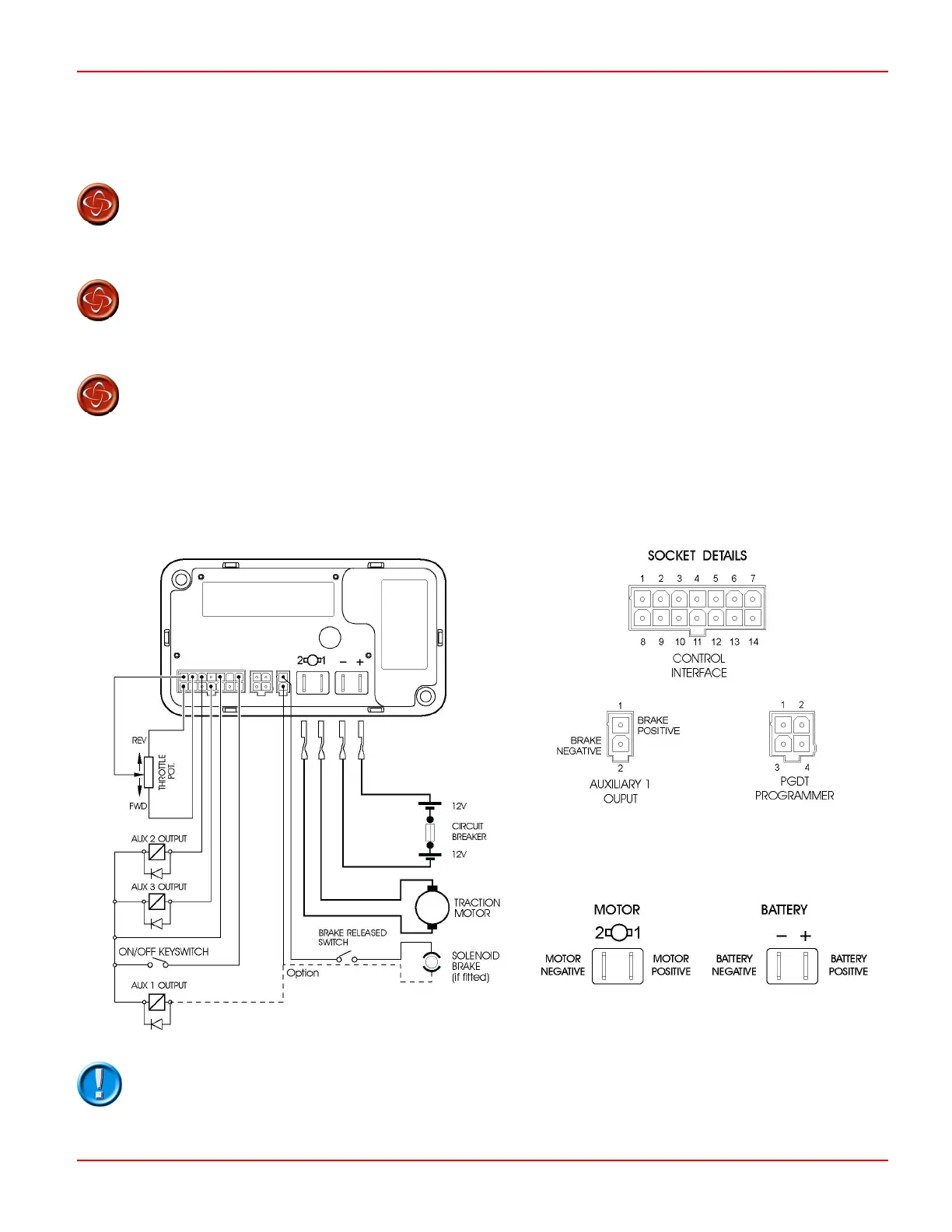

3.1.1 Wiring Configuration i45 & i70
Suitable suppression diodes should be fitted across all Aux Output relay coils, as shown above.
SK76977-07 29
