PG DRIVES TECHNOLOGY I-DRIVE TECHNICAL MANUAL – INSTALLATION
Drive Direction Potentiometer Position Machine Maximum Speed
Forward Slow Position As set by Min. Fwd Speed
Forward Fast Position As set by Max. Fwd Speed
Reverse Slow Position As set by Min. Rev Speed
Reverse Fast Position As set by Max. Rev Speed
The parameter
Speed Limit Pot. Enabled must also be set to On.
4.2.2 Belly Button Configuration
A Belly Button is a safety feature used on pallet trucks, floorcare machines etc., which prevents the operator being trapped
between the machine and obstructions such as walls when reversing. It is normally a protruding switch, which is mounted on the
control handle / vehicle body at waist height and is automatically depressed by the operator’s body as the machine reverses
against the obstruction. Once actuated, the machine instantly stops reversing and automatically drives forward away from the
obstruction at a set speed until the button is released.
It is the responsibility of the machine manufacturer to ensure the mechanical arrangement of the
Belly Button is suitable for the intended application. PGDT accepts no liability for losses of any
kind arising from the incorrect mechanical arrangement of the Belly Button or the type of Belly
Button switch used.

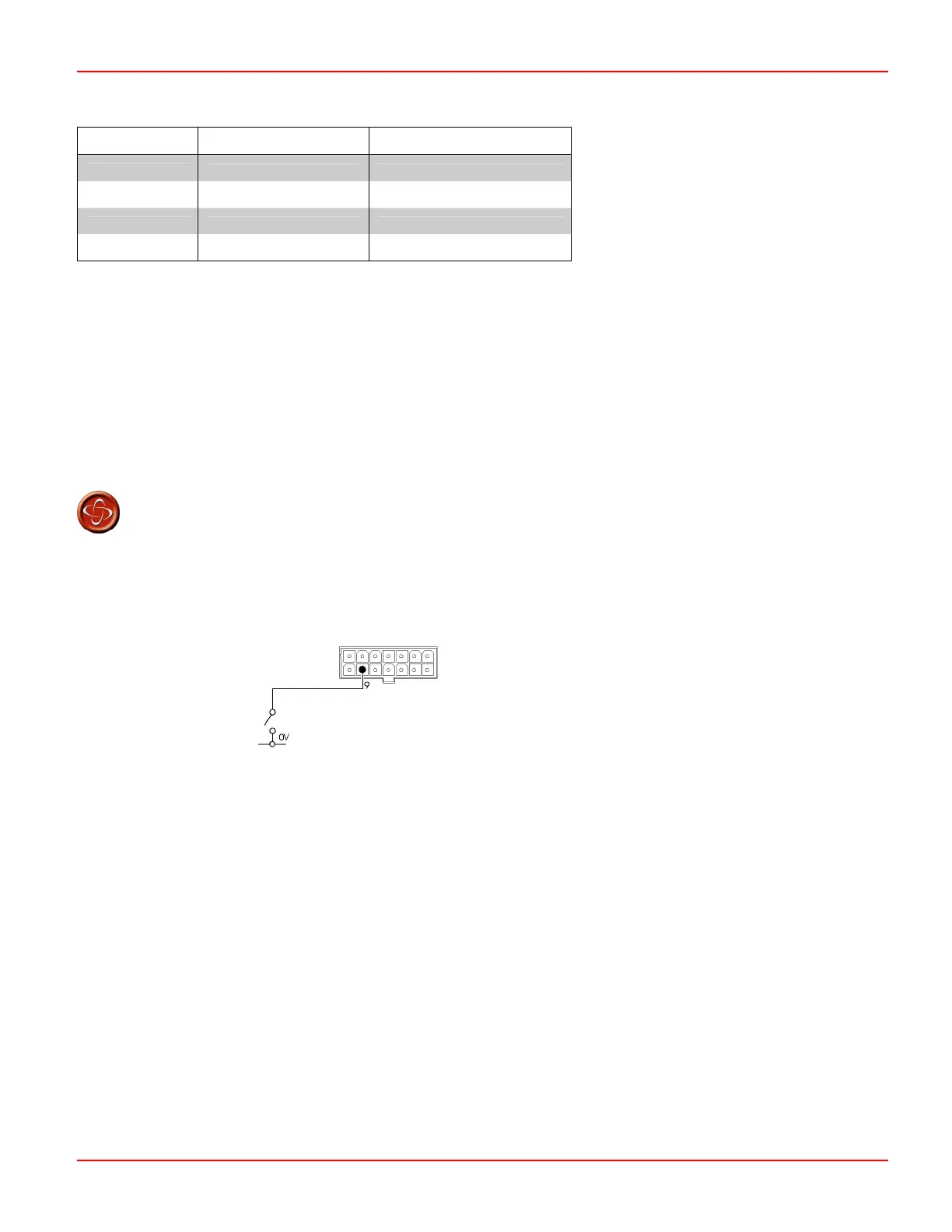

Pin 9 allows the connection of a Belly Button switch as follows.
Belly Button Function Associated Parameters.
Speed Limit Pot. Enabled.
Belly Button Switch Type.
Belly Button Speed.
Belly Button Time.
Setting the parameter Speed Limit Pot. Enabled to Off and programming the Belly Button Time > 0 enables the Belly Button
function.
Set the parameter
Belly Button Switch Type to Normally Open for a Belly Button switch that is activated when closed. Select
Normally Closed for a Belly Button switch, which is activated when open.
The parameter
Belly Button Speed selects the speed at which the machine will travel forward when the Belly Button is pressed, as
a percentage of maximum speed.
The parameter
Belly Button Time sets the period that the Belly Button Speed will be applied for, if the switch is not released.
SK76977-07 37
