I-DRIVE TECHNICAL MANUAL – INSTALLATION PG DRIVES TECHNOLOGY
The output will be active depending on how the parameter Auxiliary 1 Output Mode is programmed. The three modes, which
should be used to control an auxiliary motor, are Forward Traction, Reverse Traction or Traction.
Forward Traction Means the Output is only active when the machine is driving forwards.
Reverse Traction Means the Output is only active when the machine is driving in reverse.
Traction Means the Output is active when the machine is driving in either direction.
Setting Aux 1 Output Mode to any option other than Solenoid Brake automatically disables the
Solenoid Brake check (open circuit detection).
When the parameter Aux 1 Output Mode is set to Solenoid Brake, the parameters Auxiliary Output
1 Off Delay and Inhibit ‘x’ Target, if set to Aux 1, will have no effect. For this instance only, the
parameter Brake Time is effective.

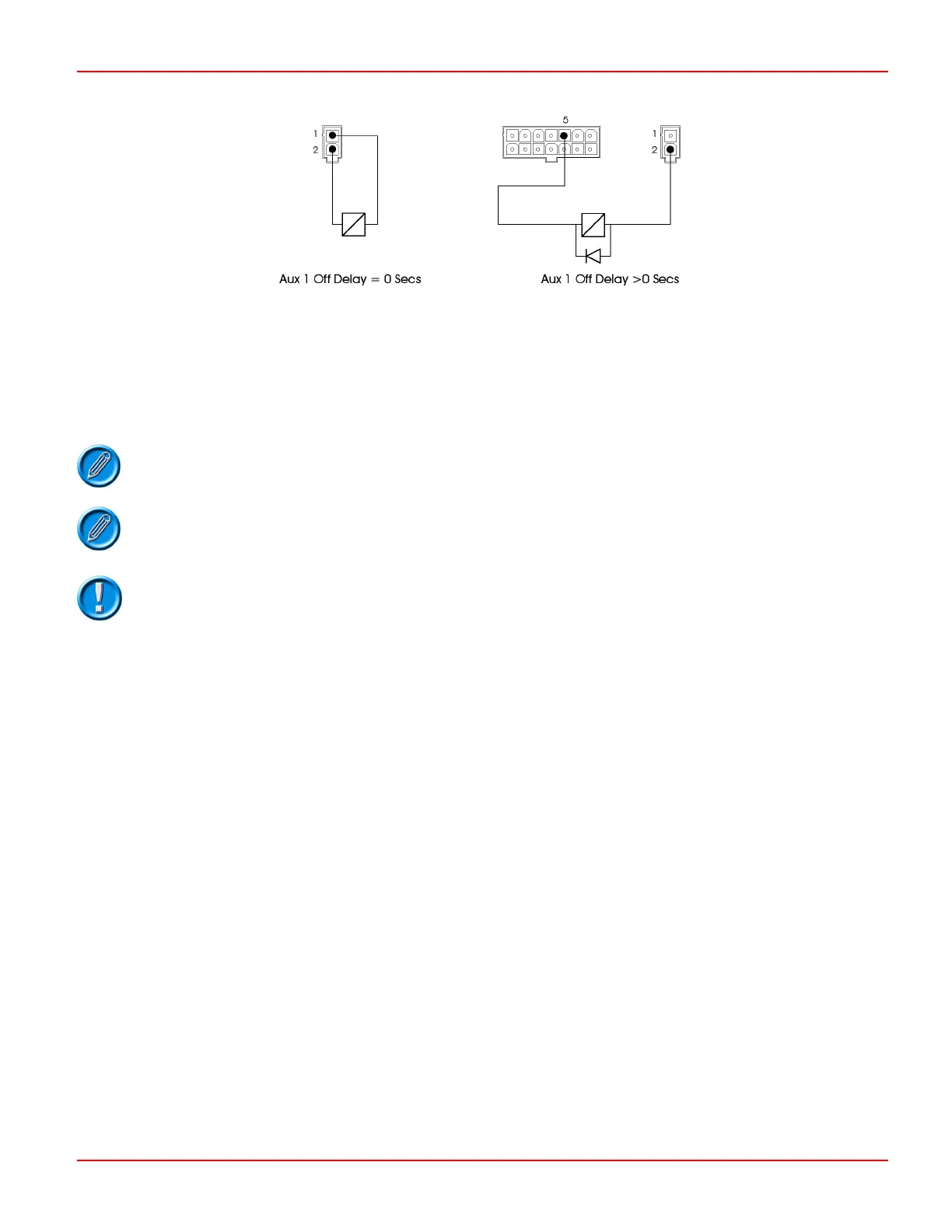

A suitable suppression diode should be fitted across an Aux 1 Output relay coil, as shown above.
SK76977-07 34
