Technical Specifications
 PHYTEC Messtechnik GmbH 2013 L-773e_2
69
16 Technical Specifications
The physical dimensions of the phyFLEX-i.MX 6 are represented in
Figure 11. The module’s profile is max. 10 mm thick, with a
maximum component height of 3.0 mm on the bottom (connector)
side of the PCB and approximately 5.0 mm on the top
(microcontroller) side. The board itself is approximately 1.4 mm thick.

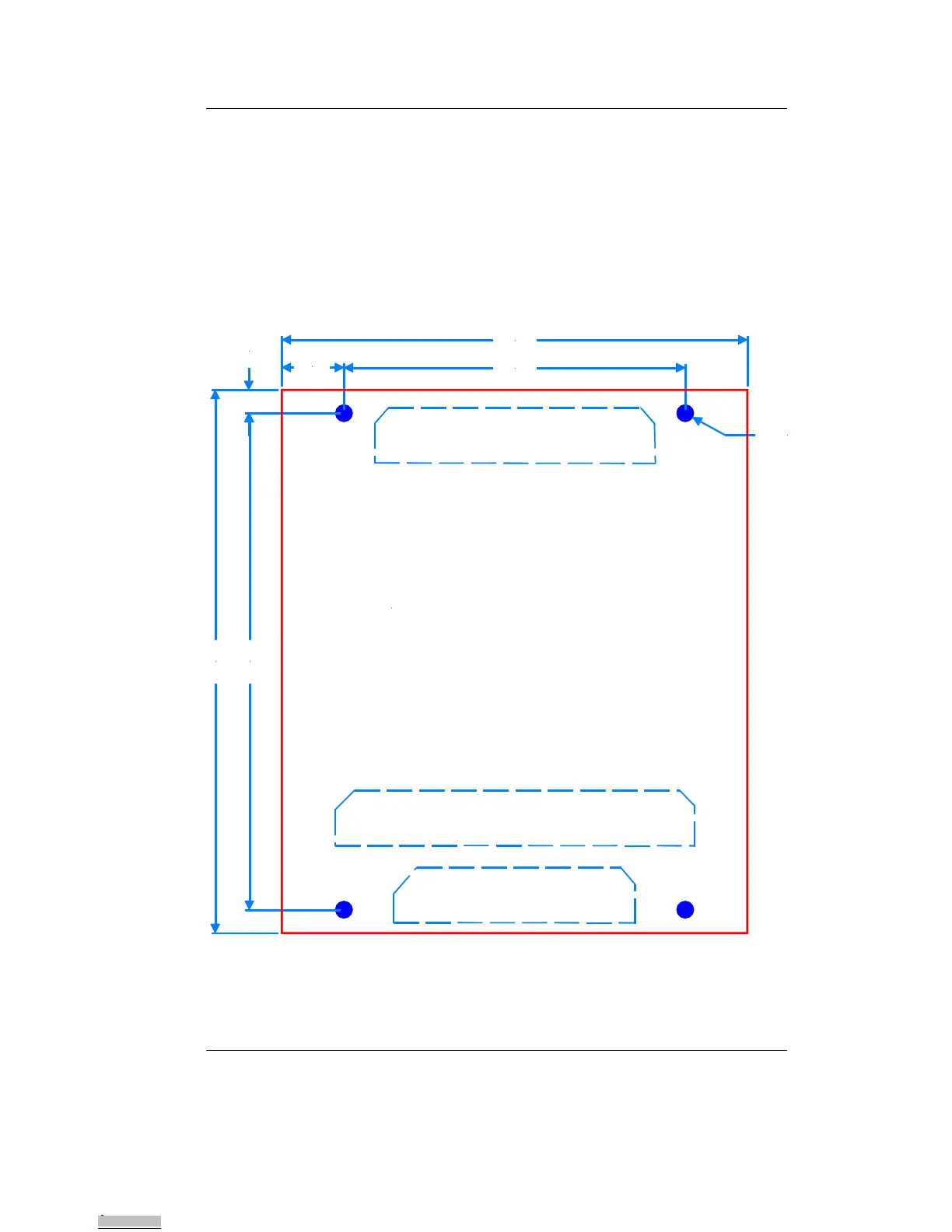

Figure 11: Physical Dimensions (top view)
D2.2mm
70mm 64mm
8mm
44mm
3mm
60mm
phyFLEX-i.MX 6
